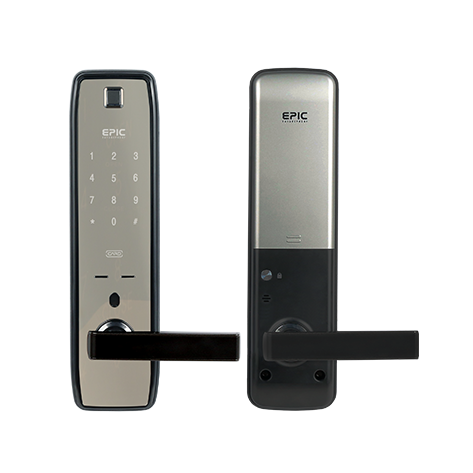

EPIC ES-F9000Kr Fingerprint Digital Door Lock
Request For Quotation
PIN,FINGERPRINT,RFID,CARD,EMERGENCY KEY,REMOTE CONTROL,HOME NETWORK,GUEST PIN
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 5days
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Pieces
Detailed Description
|
UNLOCK METHODS
|
BASIC FUNCTION
|
|||
|
Pin Number
|
1 |
Smart Card Auto/ Manual Recognition
|
✓ | |
| RFID Card (external) | 200 | Deadbolt Auto Lock / Manual lock | ✓ | |
| RFID Card (internal) | - | Sound Setting (UP/DOWN) | ✓ | |
| Fingerprint (external) | 100 | Door Opening Alarm ON/OFF | ✓ | |
| Fingerprint (internal) | - | Voice Mode/Buzzer Mode Setting | ✓ | |
| Guest Pin Number | 1 | Internal Forced Lock ON/OFF | ✓ | |
| Remote Control | 10 | External Forced Lock ON/OFF | - | |
| Face ID | - | Alarm Notification ON/OFF | ✓ | |
| Emergency Key (mechanical) | ✓ | Dual Authentication ON/OFF | ✓ | |
| Home Network | 10 | IR SENSOR ON/OFF | - | |
| App(BLE/WiFi Bridge) | Possible | FeliCa Auto Detection ON/OFF | ✓ | |
| (Need to BLE) | Etiquette Mode | ✓ | ||
|
OTHER FUNCTION
|
SPECIFICATIONS
|
|||
|
Low Battery Warning
|
✓ |
Outer body (W x H x D mm)
|
81 x 312 x 21 | |
| 1 Minute Lock Warning | ✓ | Inner body (W x H x D mm) | 81 x 312 x 30 | |
| Deadbolt Operation Error Warning | ✓ | Material | Zn, Al, ABS | |
| Intrusion Alarm | ✓ | Applicable Door Thickness(mm) | 30 ~ 50mm | |
| High Temperatur Alarm | ✓ | Backset(mm) | 70mm | |
| Internal Forced is being enabled | ✓ | Operation Humidity | 20% ~ 80% RH | |
| External Forced is being enabled | - | Operation Temperature | 0℃ ~ 40℃ | |
| Random Number Feature | ✓ | Fire Detection Temperature | 60℃ ± 10℃ | |
| Checking The Duration Of Use | ✓ | Power Supply | DC 6V | |
| Automatic Lock/Re-lock | ✓ | (LR6 1.5V AA, 8 EA) | ||
| Locking from Outside/Inside | ✓ | Emergency Power | DC 9V | |
| Emergency Power Terminal | ✓ | (6FR22 / 6F22) | ||
| Battery life (10 times/1 day) | 10 months |
