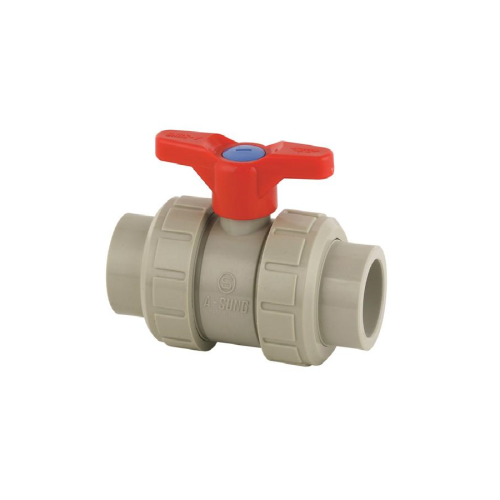

Chemical Resistance True Union Ball Valve Socket Type

Request For Quotation

This can be easily replaced from an existing pipe line by loosening of the union nut. In case of a leakage caused by wear on the seat or ball, it can be easily adjusted by tightening the union nut.

Certification

Award

Shipping

Modes of Transport CIF,EXW,FOB

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Quantity: MOQ : 1 Boxes

Detailed Description

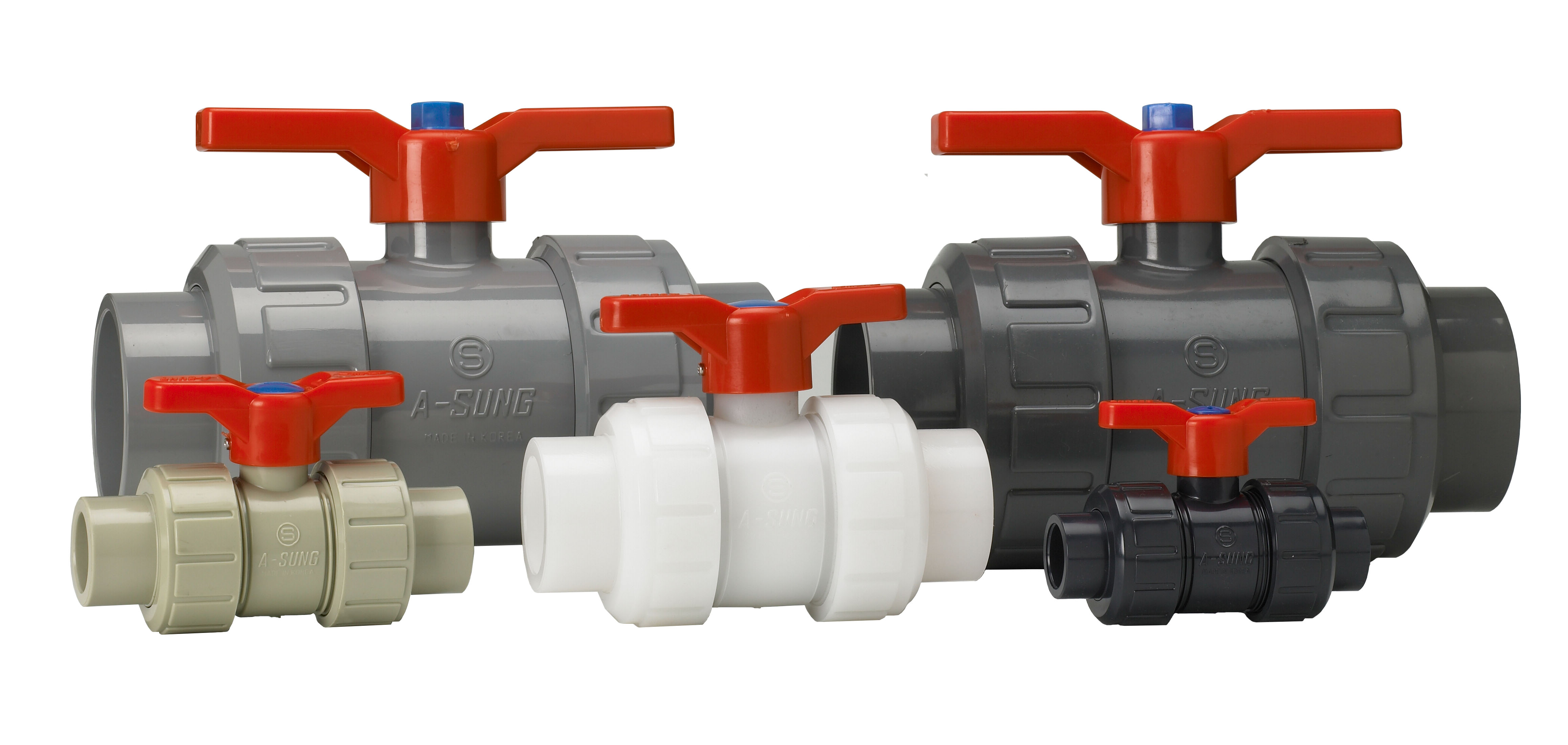

TRUE UNION BALL VALVE (SOCKET)

TYPE: SOCKET

MATERIALS: PP , PVC, CPVC, PVDF

Seals(Seat): PTFE

O-Ring: EPDM or FPM

STANDARD

JIS: 15mm-100mm

FEATURES

-Easy turning operation by 90 °

- This valve can be easily replaced from an existing pipe line by loosening of the union nut.
In case of some leakage caused by wear on the seat or ball, it can be easily adjusted by tightening the union nut.

- R.R. type valve has a perfect sealing connected by using superior elastic rubber ring.

- Excellent corrosion-resistance, heat-resistance, cold-resistance because it is made of U-PVC, PP, C-PVC, PVDF materials

NO	PARTS	MATERIALS
1	BODY CAP	PP, PVDF, PVC, CPVC
2	GLAND CAP	PP, PVDF, PVC, CPVC
3	BODY	PP, PVDF, PVC, CPVC
4	BALL	PP, PVDF, PVC, CPVC
5	CARRIER	PP, PVDF, PVC, CPVC
6	O-RING	EPDM, FPM
7	FACE O-RING	EPDM, FPM
8	SIDE O-RING	EPDM, FPM
9	HANDLE CAP BOLT	15A~50A : SS41(ABS COATED) 65A~100A : SS41(PP COATED)
10	SUS BOLT	15A~50A : SUS304 65A~100A : N/A
11	STEM	PP, PVDF, PVC, CPVC
12	STEM O-RING	EPDM, FPM
13	NIP SEAL	PTFE
