Chemical Resistance Ball Valve Flanged Type
- Award
-
- Shipping
-
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cartons
Detailed Description

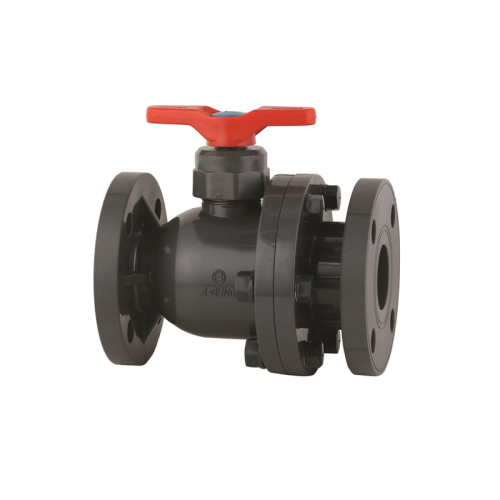

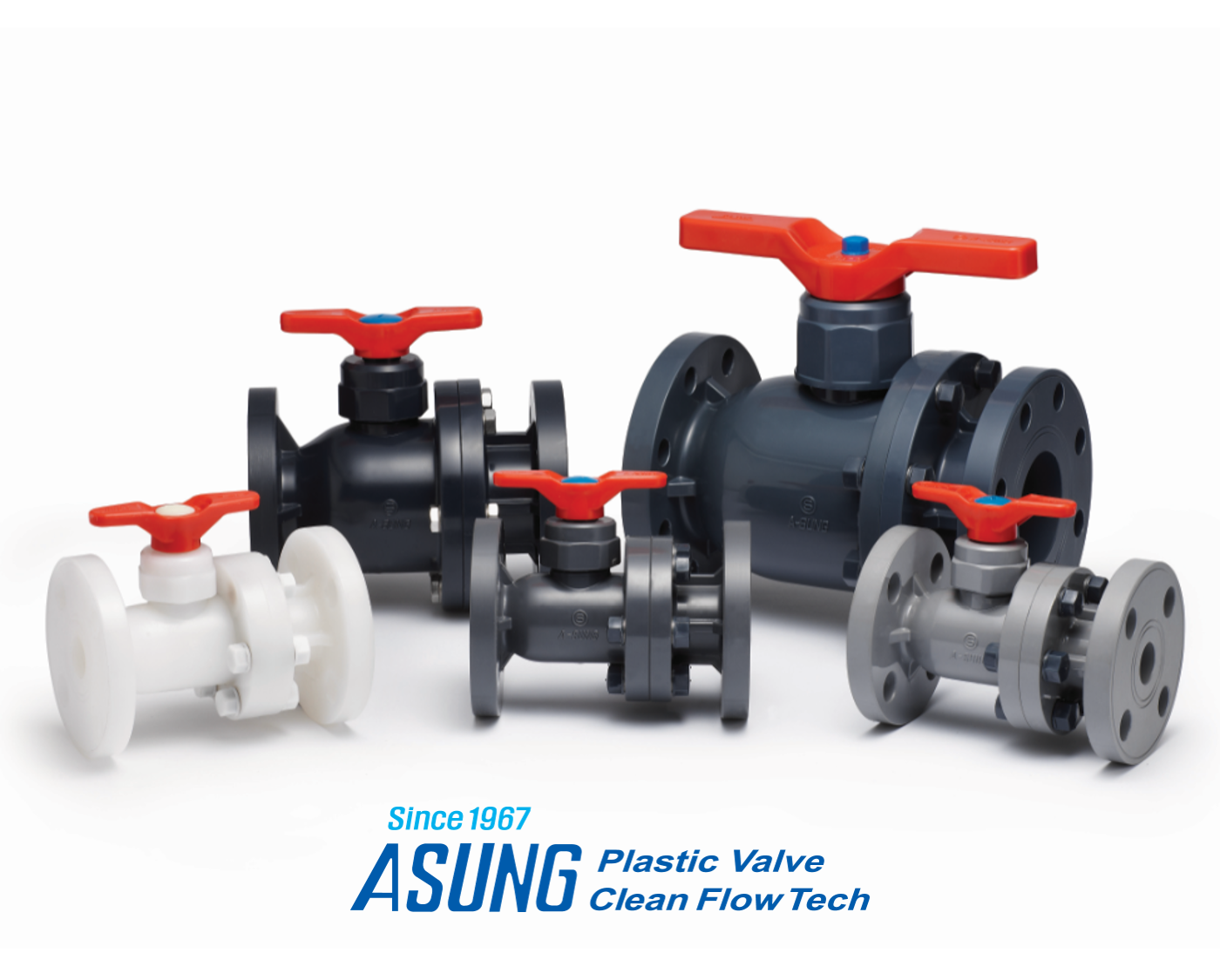

BALL VALVE (FLANGED TYPE)
TYPE: FLANGED
MATERIALS: PP, PVDF, PVC, CPVC
O-RING: EPDM or FPM
STANDARD: JIS 10kgf/㎠ Flanged
ANSI 150 PSI Flanged
SIZE: 15A ~ 150A (1/2" ~ 6")
FEATURES
- Full Bore Type
- Securing confidentiality by installing on STEM double O-RING
- High durability and convenience in manipulation
- Installing PTFE SEAL
- Enabling control for two-way flow
| NO | PARTS | MATERIALS |
| 1 | HANDLE CAP BOLT | SS41(ABS COATED) |
| 2 | HANDLE | PP |
| 3 | STEM | PP, PVDF, PVC, CPVC |
| 4 | STEM WASHER | PP |
| 5 | GLAND CAP | PP, PVDF, PVC, CPVC |
| 6 | STEM RING | PE, PTFE |
| 7 | BALL | PP, PVDF, PVC, CPVC |
| 8 | BODY | PP, PVDF, PVC, CPVC |
| 9 | NIP SEAL | PTEE |
| 10 | STEM O-RING | EPDM, FPM |
| 11 | BOLT & NUT | SS41 (PP COATED) |
| 12 | WASHER | SUS 304 |
| 13 | FLANGE | PP, PVDF, PVC, CPVC |
| 14 | STUD BOLU | SS41(PLATING : Zn), N/A |
| 15 | INSERT NUT | BC, N/A |
| 16 | BODY O-RING | EPDM, FPM |
| 17 | FLANGE SIDE O-RING | EPDM, FPM |
ASUNG PLASTIC VALVE CO., LTD. / ASUNG CLEAN FLOW TECH CO., LTD.
