Chemical Resistance New Diaphragm Valve Flanged Type
Request For Quotation
? The new diaphragm valve uses a new rubber material, exhibiting lower compressive strain for its diaphragm and cushion, resulting in optimum sealing performance
- Award
-
- Shipping
-
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cartons
Detailed Description

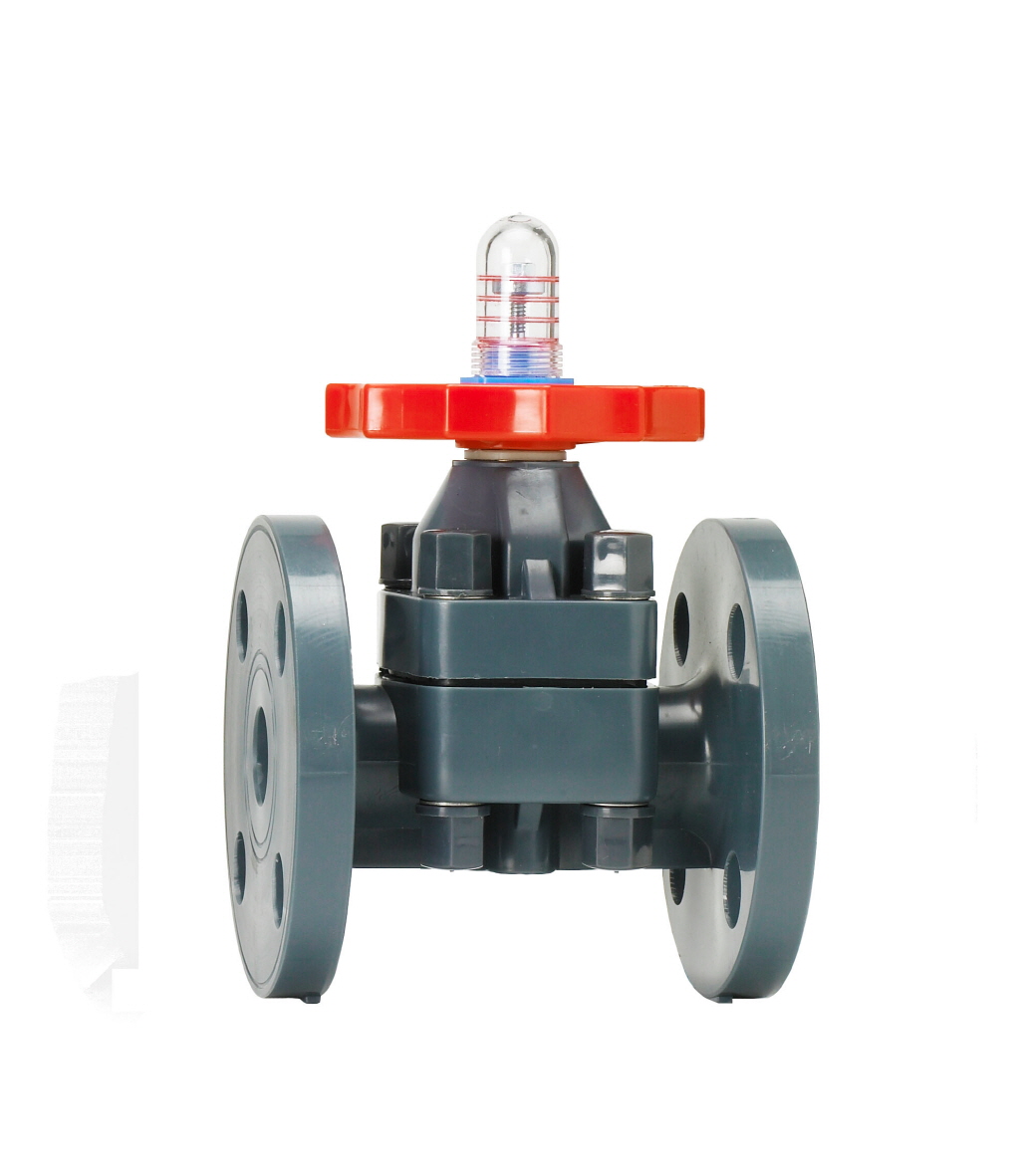

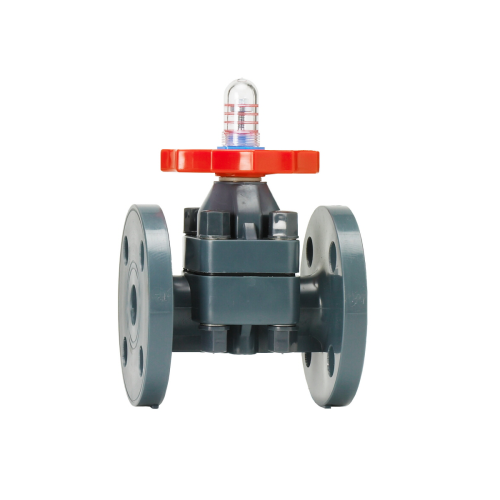

NEW DIAPHRAGM VALVE(FLANGED)
TYPE: FLANGED
MATERIALS: PP, PVC, CPVC, PVDF
Diaphragm Materials: EPDM, FPM, EPDM+PTFE, EPDM+PVDF+PTFE
STANDARD
JIS: 15mm - 250mm
ANSI: 1/2" - 10"
FEATURES
- The new diaphragm valve uses new rubber material, exhibiting lower compressive strain for its diaphragm and cushion, resulting in optimum sealing performance
- Using dynamic analysis by CAE, a new diaphragm valve was designed to distribute the pressure evenly.
- New diaphragm valve enhanced the endurance and heat-resistance, reinforced the valve body and bonnet intensively.
- Having a new bottom stand with a support nut, the new diaphragm valve helps to support the piping.
| NO | PARTS | MATERIALS |
| 1 | GAUGE CAP | ACRYL |
| 2 | STOPPER NUT | SS41(PLATING : Zn) |
| 3 | LOCK NUT | PP |
| 4 | HAND WHEEL | PP |
| 5 | THRUST WASHER | PVC |
| 6 | BONNET | PP, PVDF, PVC, CPVC |
| 7 | SLEEVE | BC |
| 8 | BOLT & NUT | SS41(PP COATED) SUS 304 |
| 9 | STEM & STUD BOLT UNIT | BC + SS41(PLATING : Zn) |
| 10 | COMPRESSOR | AL |
| 11 | BODY | PP, PVDF, PVC, CPVC |
| 12 | DIAPHRAGM | (EPDM), FPM EPDM + PTFE EPDM + PVDF + PTFE |
| 13 | PIN | SCM |
| 14 | WASHER | SUS 304 |
| 15 | PTFE RING | PTFE |
| 16 | DIAPHRAGM COVER PLATE | SUS 304 |
| 17 | SUS PLATE | SUS 304 |
| 18 | SUS LINER | SUS 304 |
ASUNG PLASTIC VALVE CO., LTD. / ASUNG CLEAN FLOW TECH CO., LTD.
