CHEMICAL RESISTANCE PVDF TRUE UNION BALL VALVE(SCREWED) 15mm-100mm

Request For Quotation

This valve can be easily replaced from an existing pipe line by loosening of the union. In case of some leakage caused by wear on the seat or ball, it can be easily adjusted by tightening the union nut.

Award

Shipping

Modes of Transport EXW,FOB

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Detailed Description

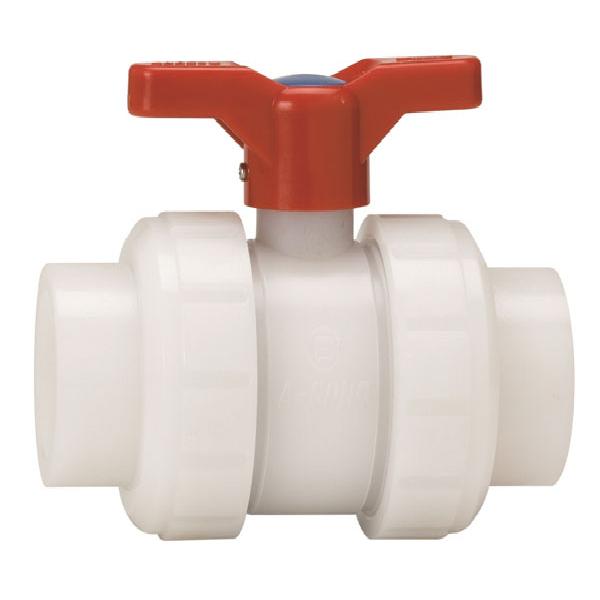

PVDF TRUE UNION BALL VALVE(SCREWED)

TYPE : SCREWED

MATERIALS : PVDF

Diaphragm Materials : EPDM, EPDM+PTFE

STANDARD

JIS : 15mm-100mm

FEATURES

- Easy turning operation by 90 °

- This valve can be easily replaced from an existing pipe line by loosening of the union nut. In case of some leakage caused by wear on the seat or ball, it can be easily adjusted by tightening the union nut.

- R.R. type valve has a perfect sealing connected by using superior elastic rubber ring.

- Excellent corrosion-resistance, heat-resistance, cold-resistance because it is made of U-PVC, PP, C-PVC, PVDF materials

NO	PARTS	MATERIALS
1	BODY CAP	U-PVC, PP, C-PVC, PVDF
2	GLAND CAP	U-PVC, PP, C-PVC, PVDF
3	BODY	U-PVC, PP, C-PVC, PVDF
4	BALL	U-PVC, PP, C-PVC, PVDF
5	CARRIER	U-PVC, PP, C-PVC, PVDF
6	SIDE O-RING	EPDM, FPM
7	FACE O-RING	EPDM, FPM
8	HANDLE	PP
9	BOLT	SS41
10	O-RING	EPDM, FPM
11	STEM	U-PVC, PP, C-PVC, PVDF
12	SEAT	EPDM, FPM
13	NIP SEAL	PTFE
