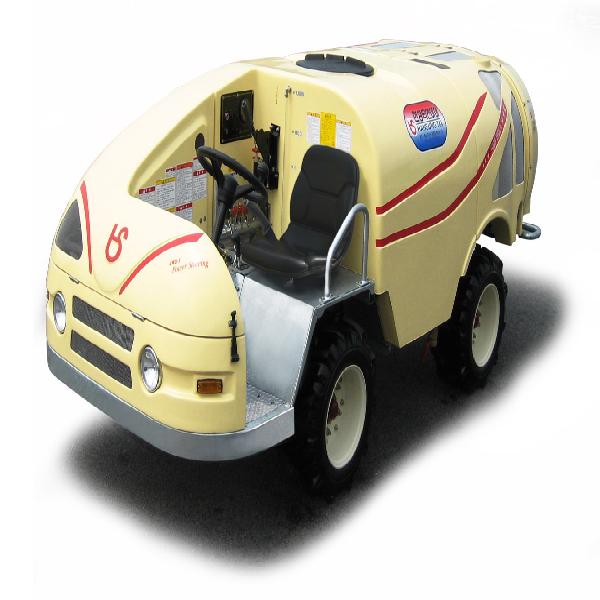

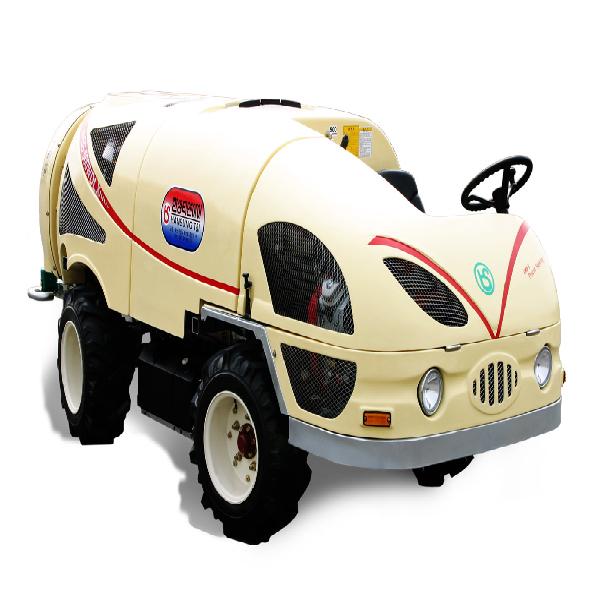

Speed Sprayer

share

Request For Quotation
By adopting the way of 3 strainer clogging of the nozzle capable of working without a friendly pest control
Certification
Award
Shipping
  • Lead Time90 ~ 120days
  • Modes of Transport EXW
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 1 Units

Detailed Description

Four-wheel steering allows the user to smoothly circulate and drive easily by minimized turning radius in same class.
With a synchromesh method of transmission, the user is enabled to change speed while traveling.
Triple strainer method enables convenience and complete control of work without nozzle clogging.
With its hydraulic dump, the lift function and cargo box, this machine can be used as a cart.


Four-wheels steering
The hydraulic four wheels steering method gives minimized turning radius

in the same class, and displays excellent turning and steering capacity.


1WAY-2NOZZLE method
One nozzle base adopts two different nozzles, and when spraying is not required in a nozzle, it turns 90 °to stop spraying.


Convenient operation
A centralized design allows the user to operate the machine conveniently.






  SS-500WDLXⅡ HTI-1000WDLXⅡ
Measurement Dimensions(mm) 3510x1370x1280 3760x1480x1315
Weight(kg) 1370 1585
Tank Capacity(L) 500 1000
Driving Part Engine OutPut
Driving Type
Transmission Step Speed
14.5kw/3600rpm
4W-Drive, 4W-Steering
16.7km/h
16.5kw/3600rpm
4W-Drive, 4W-Steering
20.4km/h
Spraying Part Engine Output
Pump
Number of Nozzle
Discharge Rate
45kw/5000rpm
YH100A
15kgf/cm2
48EA(1.0x24/1.2x24)
Jet Pump/210L/min
45kw/5000rpm
YH100A
15kgf/cm2
48EA(1.0x24/1.2x24)
Jet Pump/210L/min
