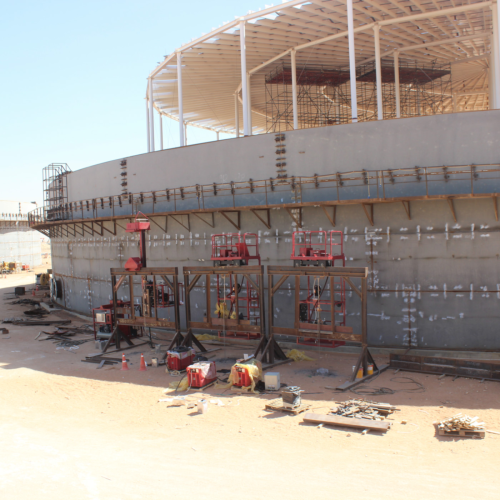

Tank welding system welders are for Tank erection at site construction.

Automatic Girth Welding system for field erected self-propelled storage tanks can travel at operator-controlled speeds from 0.1~2.6m/min. thr frame height is adjustable for shell plate [ 1.8m~3m ]

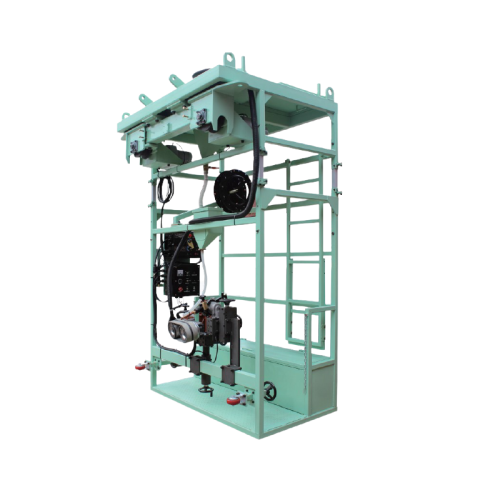

The AGW (Automatic Girth Welder) system performs welding while driving shell plates for on-site storage tank construction.

The time for tank construction is shortened since welding is performed 20 times faster than in the existing manual welding process.

Compared to manual welding, the welding time is saved as much as 40%. The driving rate also can be adjusted in the range of 0.1 to 2.6m/min depending on the operator’s control. The frame height also can be adjusted in line with the cell height. (1.8m ~ 3.5m)

The equipment consists of the welding head, control, flux support belt, and auto recovery system, all assisting the welding technician.

The AGW’s driving rate can be adjusted in the range of 0.1 to 2.6m/min depending on the operator’s control. Welding may be performed on plates as thick as 2 inches and tanks of min. 15 feet in diameter.

This is a portable welding station that completely consists of the welding head, flux belt, recovery device, and all of the controllers, helpful for easy welding.

  • Welding time is reduced as much as about 40%.

  • The frame structure is adjustable in line with the cell plate’s height (1.8m~3.5m).

  • The wheel flange is adaptable to the diameter of various storage tanks (Dia: 15m+)

  • The flux recovery system features the high cost-saving effect.

  • The control system secures X-ray quality welding performance
