SPECIFICATION;

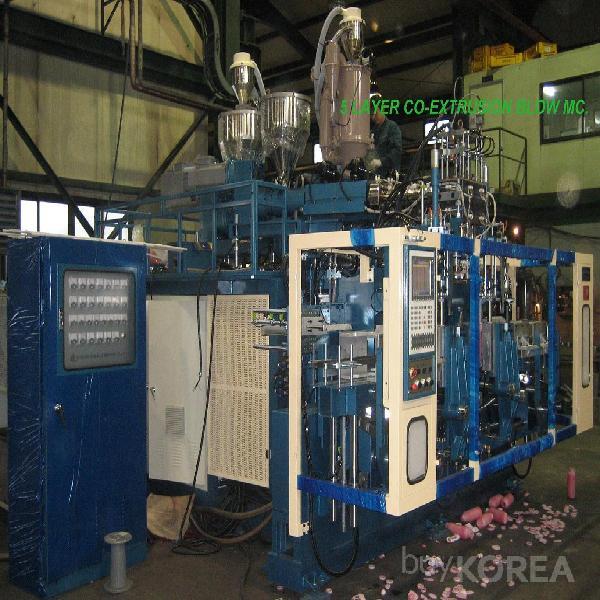

PLAMA PMBSM-MLCO-7446/6L-SERIES AUTOMATIC MULTI-LAYER CO-EXTRUSION BLOW MOULDING MACHINE WITH FOUR(4) EXTRUDERS AND IN MOULD LABEL SYSTEM. THIS MODEL IS INSTALLED QUADRUPLE(4) PARISON DIE HEAD ON TWIN STATION PARALLEL MOVEMENT MOULD PLATENS. AND THIS CO-EXTRUSION BLOW MOULDING MACHINE CAN USE RECYCED PE FOR REDUCING MATERIAL COST.

## OUTPUT CAPACITY OF 300ml BOTTLE; MAX. 28,000-30,000 EA/24HRS

## OUTPUT CAPACITY OF 500ml BOTTLE; MAX. 26,000-30,000 EA/24HRS

CO-EXTRUDED BOTTLES ARE USING VARIOUSLY ON THE MARKET FOR A WIDE RANGE OF DIFFERENT FOODS, MEDICALS, COSMETICS & CHEMICALS FIELD. THE ADVANTAGE OF PLASTIC BOTTLES VERSUS A GLASS BOTTLES ARE THE UN-BREAKABLE. SQUEEZABILITY AND THE LIGHTER WEIGHT. AND ESPECIALLY THE LAYER COMBINATION AND THE WALL THICKNESS OF THE INDIVIDUAL LAYER CAN BE REGULATING SEPARATELY ACCORDING TO THE USING OF THE BOTTLES. PLAMA PMBSM-MLCO-7446/6L-D4HPTIML MULTI-LAYER CO-EXTRUSION BLOW MOULDING MACHINE CAN PRODUCE MAINLY FOOD APPLICATION AS LIKE KETCHUPS OR MAYNNAISE BOTTLES. OUTPUT CAPACITY OF THE MULTI-LAYER BOTTLES ARE VERY VARIOUS ACCORDING TO THE BOTTLE SHAPE, BOTTLE WEIGHT, MOULD COOLING CONDITION AND THE KINDS OF BARRIER MATERIALS. AND THIS MULTI-LAYER BOTTLES HAS THEIR SPECIAL PROPERTY LIKE SOLVENT RESISTANCE, GOOD GAS BARRIER (O2, CO2), OIL RESISTANCE, FRAGRANCE PRESERVATION, ANTI-STATIC PROPERTIES, HIGH TRANSPARENCY, WEATHER RESISTANCE AND PRINTABILITY ACCORDING TO THE BARRIER MATERIALS.

NOW WE ARE SUPPLYING 6 LAYER CO-EXTRUSION LINE AS UNDER SPECIFICATION.

1> THE TYPE OF THE FIVE (6) LAYERS CO-EXTRUSION HEAD; FOUR(4) EXTRUDERS WITH SYMMETRYICAL.;

(∅70mm ∅600 mm..∅40 mm, .∅40 mm)

- THE MATERIAL COMBINATION OF THE FIVE (6)) LAYER BOTTLES IS AS UNDER;

*PE (160㎛)/ADHESIVE(20㎛)/EVOH(20㎛)/ADHESIVE(20㎛)/RECYLED PE(310㎛)/PE((160㎛)

(EACH PE LAYER DISTRIBUTION AND LAYER THICKNESS ARE ALSO CHANGIABLE ACCORDING TO THE PURPOSE OF USING.)

2> AND THIS BLOW MOULDING MACHINE IS INSTALLED FOR PROCESSING BOTH SIDE IN MOULD LABELS.

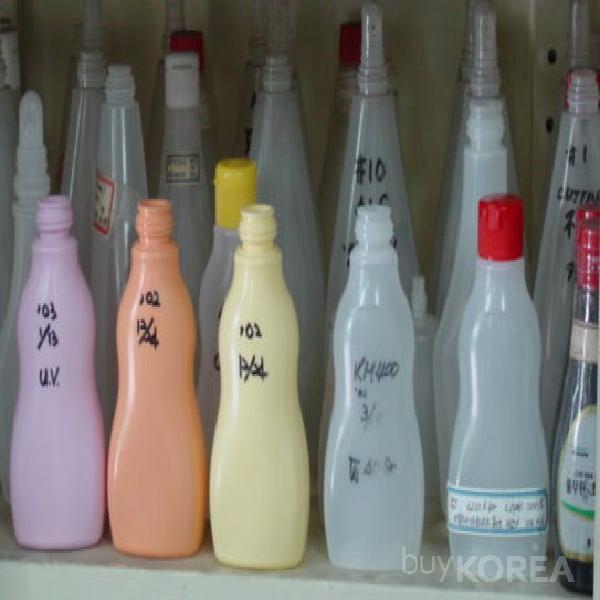

THE GREATER PART OF THE SIX(6)) LAYER BOTTLES ARE USING FOR FOODSTUFFS PACKAGING OR MEDICAL PACKAGING OR AGRICULTURAL CHEMICALS PACKAGING.

; KETCHUP, MAYONNAISE, MUSTARD, SOYA SAUCE AND INSTANT FOOD

; TOOTH PASTES, SKIN OIL, HAIR COSMETICS AND HAND CREAM

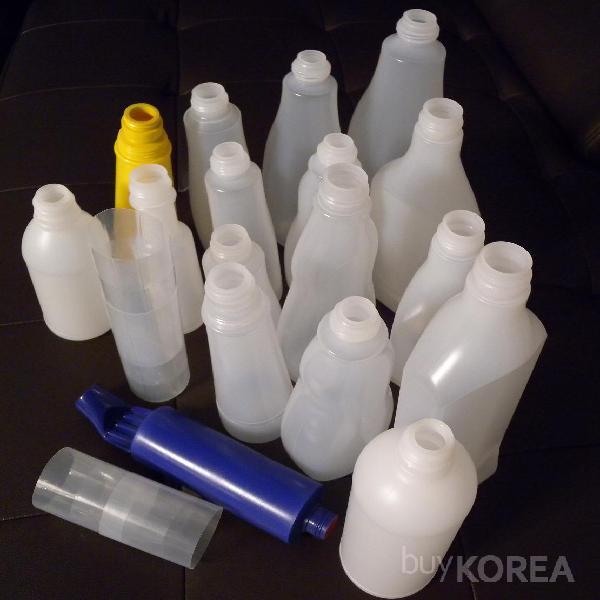

; PETROL, FERTILIZER, HERBICIDES.
