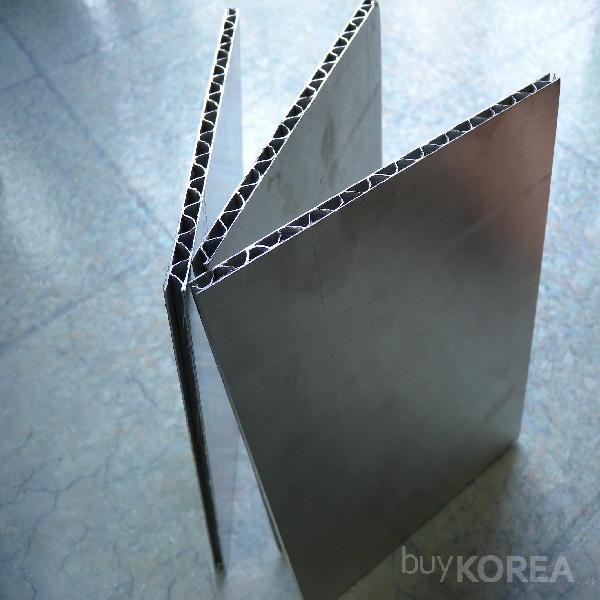

HONEYCOMB CORE OR CORRUGATION CORE PANEL MACHINE
-AL, CORRUGATION CORE PANEL MACHINE
-AL. HONEYCOMB CORE MACHINE
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1
Detailed Description

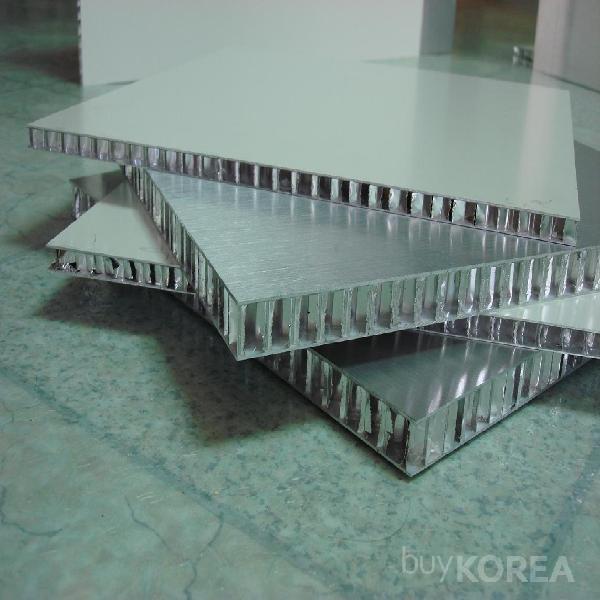

## ALUMINIUM HONEYCOMB SANDWICH PANEL PRODUCT BASIC SPECIFICATION.
1. BASIC PANEL SANDWICH CHARACTERISTICS.
0. COVER SHEET ALUMINIUM 3000 & 5000 SERIES.
0. CORE CELL ALUMINIUM HONEYCOMB 3000 SERIES.
0. V CELL SIZE 1/4” TO 1”(6.3 mm -25.4 mm).
0. CORE FOIL THICKNESS 50-80 micron.
0. CORE DENSITY 4.8 TO 1.4 pcf(0.08 gr/cm3-0.02 gr/cm3).
0. INTENDED USE(APPLICATIONS) ARCHITECTURAL BUILDING WALL CLADINGS, TRANSPORT
& INDUSTRIAL.
0. STRUCTURAL REQUIREMENT WIND-LOADS HIGH RAISE BUILDINGS.
0. FIRE PERFORMANCE EUROCLASS B(EN 13501-1).
0. ADHESIVES STRUCTURAL EPOXY/PU, HIGH PEEL STRENGTH, STABILITY
AND EXCELLENT.
-FIRE BEHAVIOUR A2B(EN 13501-1)
0. TEMPERATURE RESISTANCE -40℃ TO +80℃
2. SANDWICH PANEL DIMENSION REQUIERMENTS.
0. TOTAL PANEL THICCKNESS 6mm/8mm/10mm/15mm/20mm/25mm
0. CORE THICKNESS 4.5mm TO 23mm.
0. SHEET THICKNESS 1/0.7mm; FRONT SIDE.
0.5/0.7mm; REVERSE SIDE.
(USUALLY STANDARD PRODUCTION 0.7 EXT/0.5 INT)
PVDF PAINTED EXT. FACE.
0. TOTAL PANEL WEIGHT 4.9 TO 8 Kg/m2
0. PANEL WIDTH 1250mm/1500mm/1750mm/2000mm(MAX.).
0. STANDARD LENGTH PANEL 9,000mm(MAX.)
0. THICKNESS TOLERANCE +/- 0.2mm
0. FLATNESS ≤0.15%
3. INDUSTRIAL PRODUCT BASIC SPECIFICATION;
0. LINE SPEED MAX. SPEED 4m/minute.
0. PRODUCTION CAPACITY 2,800,000 m2/YEAR BY 3 SHIFTS.
0. PROCESS OF PRODUCTION LINE MAX. EFFICIENCY PRODUCTION PROCESS AND MINIMUM
PRODUCTION COSTS. FULLY AUTOMATIC CONTINUES LINE
AND STACKING EQUIPMENTS.

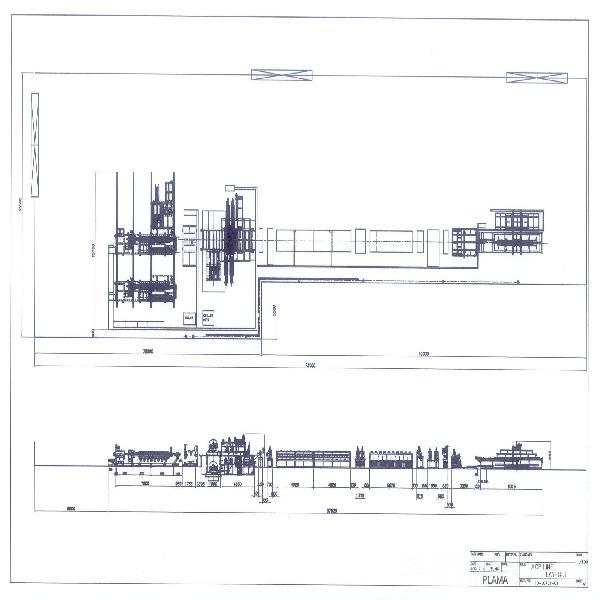

0. LINE LENGTH 75/70ml(+20 ml FREE AFTER AND BEFORE).
LENGTH PLANT; 110 ml
0. UNCOILERS REQUIREMENTS 2 UNITS(ONE IS UP AND ANOTHER IS DOWN).
WIDTH OF COIL; 2200mm(max)/1250/1500/1750/2100mm
INTERNAL DIA.; 508mm/EXTERNAL DIA.;1500mm
MAXIMUM WEIGHT; 8 TON PER COIL.
0. CUTTING MACHINE TRANSVERSAL CUTTING AND TWO LONGITUDINAL CUTTING
EDGES.
0. PRESS MACHINE HEATING PRESS DOUBLE BELT.
0. FILM PROTECTION EQUIPMENT INCLUDED FOR 2000mm WIDTH AND 80 MICRONS THICKNESS.
0. PRIMARY ALUMINIUM HONYCOMB WILL BE USED FROM NON SPANDED SLICE AT THICKNESS
REQUIRED IN CORE OF CELL SIZE 1/4”.
(ALLOY 3003-THICKNESS 50 MICRONS, PRE-TREATED AND
MICRO PERFORATED. THE BUYER WILL SUPPLY.
0. MACHINE FOR JOINT SLICE WILL BE INCLUDED IN THE LINE.
0. MACHINE FOR EXPANED HONEYCOMB WILL BE INCLUDED IN THE LINE IN CONTINUOUS PROCESS.
0. STACKER INCLUDED FOR PANELS MAXIMUM SIZE 2000 * 9000mm.
PALETS WITH 1.5 meters HEIGHT POSSIBLE.
## EXPECTED LINE INSTALLATION; SEPTEMBER 2010.
