COMPOSITE PIPE MACHINE
-COMPOSITE PIPE MFG. LINE WITH BUTT WELDING SYSTEM
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1
Detailed Description
|
PLAMA |
I'm here for you

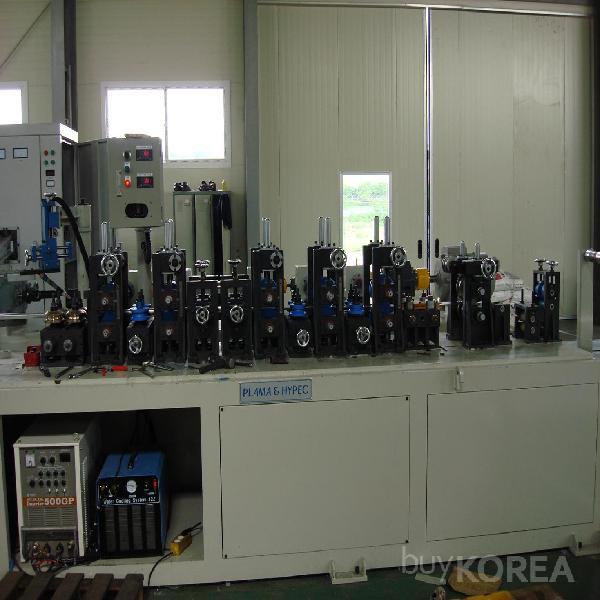

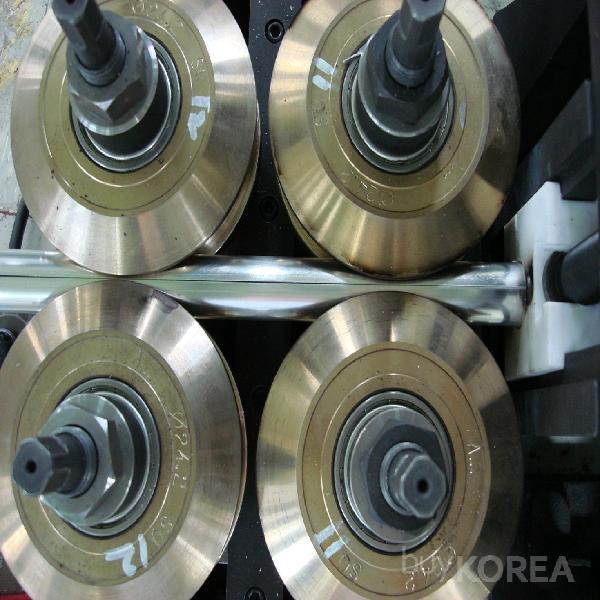

## GENERAL DATA OF AL+PE 5 LAYER COMPOSITE PIPES PRODUCTION LINE FROM 16A TO 32A DIAMETER ##
Ⅰ. GENERAL TECHNICAL DESCRIPTION
THIS EQUIPMENTS ARE DESIGNED TO PRODUCE AL+PE 5LAYER COMPOSITE PIPES BY THE METHOD OF EXTRUSION FOR USING OF INDUSTRIAL PURPOSE AND HEATING & COOLING ARRANGEMENTS.
Ⅱ. MAJOR SPECIFICATION
1. APPLICABLE RESIN PE(PE-RT) , PEX AND GLUE(ADHESIVE).

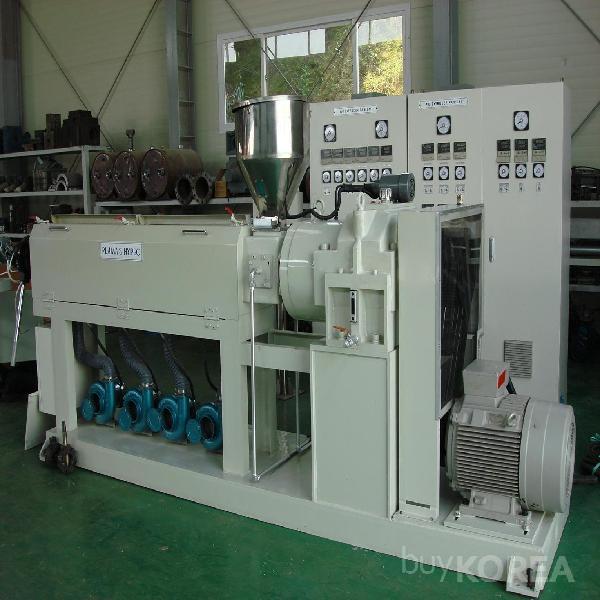

2. EXTRUDER CAPACITY AND PLASTICIZE CAPACITY
|
EXTRUDER |
APPLICABLE RESIN |
Q'TY |
PLASTICIZE CAPACITY |
|
HE-70-30 |
FOR INNER PIPE(PE-RT/PEX) |
1 LINE |
95-140kgs/HR (AVERAGE; 100KG/HR) |
|
HE-40-28 |
FOR ADHESIVE |
2 LINES |
30-50kgs/HR (AVERAGE; 30kgs/HR) |
|
HE-70-30 |
FOR OUTER PIPE(HDPE/PEX) |
1 LINE |
95-140kgs/HR (AVERAGE; 100kgs/HR |
** PE-RT(POLYETHYLENE RAISED TEMPERATURE RESISTANCE)
THIS RESIN HAS NOT ONLY SPECIAL FUNCTION JUST SAME AS PEX-B RESIN BUT ALSO CAN USE TRANSPORTATION OF DRINKING WATER.
3. PRODUCTS SIZE 16A, 20A, 26A, 32A
4. SPEED OF THE HAUL OFF UNIT MAX. 50m/MINUTE
(WORKING SPEED; REFER TO BELOW DATA)
5. CENTER HEIGHT OF EXTRUDER 1100mm MORE OR LESS 30mm
6. OPERATION DIRECTION LEFT
7. PAINTING COLOR D80680
8. REFERENCE DATA FOR ABOVE PRODUCTS
|
NOMINAL |
OVERALL DIMENSION |
LINE SPEED |
REMARK (AVERAGE) |
||
|
|
DIAMETER(mm) OUTER/INNER |
PIPE THICKNESS |
WEIGHT (kg/ROLL) |
||
|
TOTAL(mm/AL(mm)/WEIGHT(gr/m) |
|||||
|
16A |
16.0 / 11.5 |
2.25 /0.5 /42 |
11.8 |
20-30m |
25m |
|
20A |
20.0 / 15.0 |
2.5 / 0.5 / 86 |
18.8 |
16-20m |
18m |
|
26A |
26.0 / 20.0 |
3.0 / 0.6 / 129 |
14.55 |
13-16m |
14m |
|
32A |
32.0 /26.0 |
3.0 / 0.6 / 158 |
18.1 |
10-14m |
12m |
** ABOVE ALL OF DATA MAY BE CHANGED BY EACH RESINS AND OPERATION CONDITION**
# APPLICATION OF COMPOSITE PIPES
|
SECTION |
SPECIAL |
GENERAL |
HEATING |
GAS |
SANITARY |
RADIANT |
|
MATERIAL |
PEX-B/AL/PEX-B |
PE/AL/PE |
PEX-B/AL/PEX-B |
PE/AL/PE |
PERT/AL/PERT |
PERT/AL/PERT |
|
TEM.(℃) |
-50/+110 |
-50/+50 |
_50/+110 |
-50/+70 |
-50/+110 |
-50?+110 |
