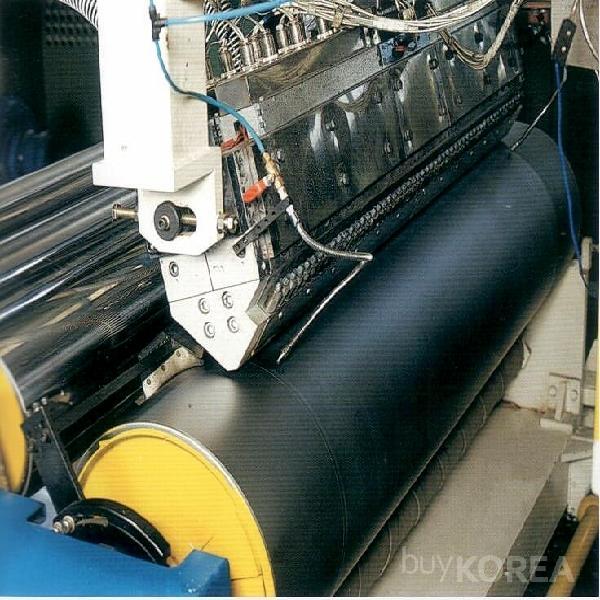

# SPECIFICATION OFLLDPE 3-LAYER STRETCH FILM MFG. LINE. THIS 3-LAYER CO-EXTRUSION LINE IS CONSISTED OF 3 SINGLE EXTRUDERS, T-DIE, CASTING ROLL AND OTHER DOWN STREAM FOR PRODUCTION 3-LAYERS STRETCH LLDPE FILM.

[MODELPLAMAPMEHY-8/11/8-3LSFL]

'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''

1. MAJOR SPECIFICATION.

1) MODEL.                                    PMEHY-8/11/8-3LSFL

2) APPLICABLE RESIN                          LLDPE & PE FILLER

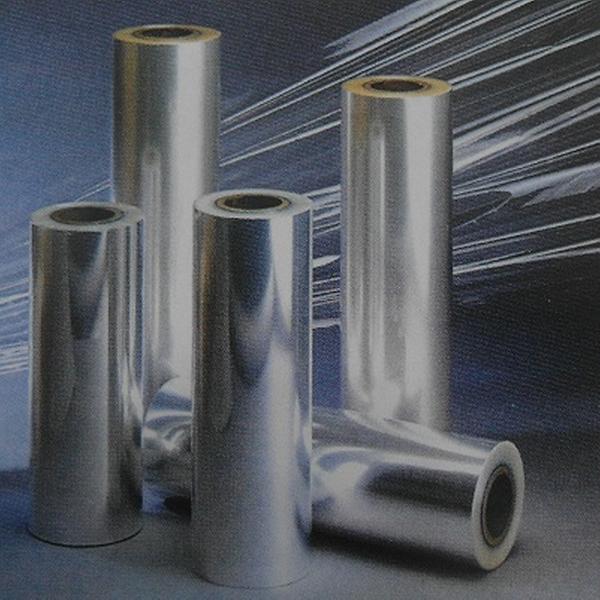

3) PRODUCTION GOODS                          A/B /C 3-LAYERSSTRETCH FILM

-. FILM WIDTH                                     2000mm(500mm * 4 EQUAL PARTS)

-. FILM THICKNESS                                 15-50μ

-. WINDING LENGTH                                 400-520meters

4) EXTRUDING CAPACITY                        360 kgs/HOUR

(IT CAN BE CHANGED ACCORDING TO THE MIXED RESIN SITUATION AND FILM THICKNESS.)

5) LINE SPEED                                60-150 meters/minute

6) HEIGHT OF THE MACHINE                     CENTER 4850mm

7) UTILITIES

(1) ELECTRIC POWER SOURCE                         220(380V) * 50 HZ * 3∅

(2) TOTAL POWER CAPACITY                          APPROX. 620 KW

-TOLERANCE OF VOLTAGE AND FREQUENCY               10%/+/- 1 HZ

(TOTAL POWER CAN BE CHANGED ACCORDING TO THE BUYER’S CHOICE CONCERING MACHINE MECHANISM.)

(3) COOLING WATER

-. QUALITY                                        NATURAL INDUSTRIAL WATER

-. PUMP PRESSURE                                  2-3 kgf/cm2

-. COOLING WATER CONSUMPTION                      300 ltr/minute

 (4) COMPRESSED AIR

-. AIR PRESSURE                                   5-7 kgf/cm2

-. AIR CONSUMPTION                                1.5m3/HR APPROX.

(5) ENVIRNMENT CONDITION OF  THE WORKING AREA

-. TEMPERATURE;                                   15-40c

-. HUMIDITY      ;                                30-80%

8) SCOPE OF SUPPLY

(1) GROUNDING CONSTRUCTION

(2) ELECTRIC WIRING, PIPING  CONSTRUCTION

(3) SPEECIAL OIL WHICH IS NOT LISTED IN OUR SPARE PART LIST

(4) SPARE ROLL & BEARING CASE WHICH NEED FOR ROLL.

8) MACHINE COLOR; ACORDING TO THE REQUEST OF THE BUYER.

9) MACHINE DIMENSION(L * W * H);             APPROX. 14m * 6.8m * 4.9m
