SPECIFICATION

MODEL

PMOHY-PNL1400-AUT

PRODUCTION CAPACITY(ON THE BASE OF PALM FIT COATING)

650-1100 PAIRS/HR

MOULD LINK BRAKET

2800 pcs(TOTAL)

TOTAL NUMBER OF GLOVE MOULD

1400 PAIRS(2800 CAVITIES)

PITCH OF MOULD LINK

200 mm

MAIN DRIVING MOTOR

3.75 kw WITH GEARED MOTOR

NBR MIXING TANK(GEARED MOTOR)

0.75 kw ☓ 2 sets=1.5 kw       (900 ltr * 2   sets)

SIZE; Ø1200 *1200L

NBR FEEDING TANK(GEARED MOTOR)

400w ☓2sets= 800   w           (400 ltr * 2 sets)

SIZE; Ø800 *1000L

MAIN CONTROL SYSTEM

SIEMENS ELECTRIC PARTS(EXCEPTION TOUCH MONITOR CONTROL UNIT; THE BUYER   OPTION)

IF THE BUYER WANTS TO SIEMENS ELECTRICS   AND TOUCH MONITOR, IS AVAILABLE.

DRIVING SYSTEM

CHAIN DRIVE WITH GEAR(170m)

WATER TANK FOR KNO3   EXTRACTION

3 sets(11 * 0.8 * 0.4m)-----2.5 tons * 3 sets

TEMP;30-40C/1^st TANK;INCLUDING BOILER

HEATING FAN & EXHAUST FAN

7.5 kw * 2 sets FOR HEATING BLOWER

3.75 kw * 1 set FOR EXHAUST BLOWER

KNO3 TREATMENT TANK & NBR DIPPING TANK

2 sets (0.5 * 0.4 * 0.1m) FOR KNO3

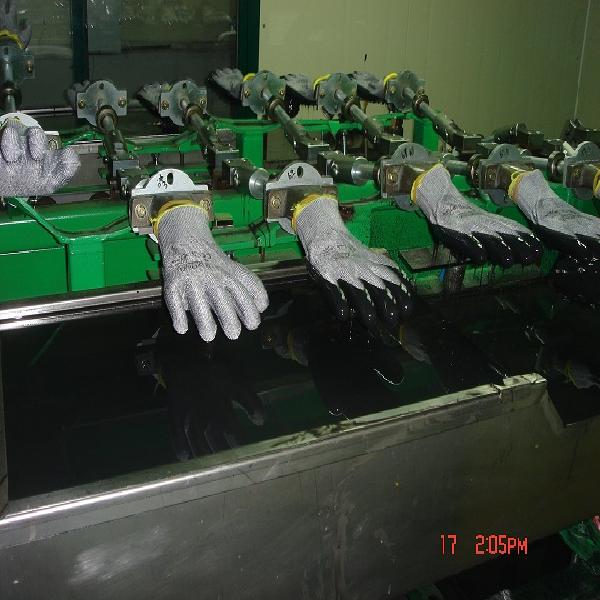

3 sets (0.5 * 0.4 * 0.1m) FOR NBR DIPPING

(PALM & HALF & FULL COATING)

3 sets FOR 2 TIMES DIPPING

DRYING SYSTEM FOR KNO3

CONNECTION BY DUCT WITH DRYING BURNER.

DRYING CHANNEL LENGTH; 30meters

BALL MILL(CRUSHING & MIXING OF ADDITIVES

200ltr

LENGTH OF CHAIN

340 m

WATER HEATING BOILER

* DIESEL CONSUMPTION

* POWER CONSUMPTION

70,000 kcal *1 SET

* 8 ltr/HR ☓ 1 set=8 ltr/HR

* 200 w/HR ☓1 set=200 w/HR

## REPLACEMENT BY ELECTRIC HEATERS   INSTEAD OF WATER HEATING BOILER.

DRYING BURNER

* DIESEL CONSUMPTION

* POWER CONSUMPTION

250,000 kcal * 2 sets

* 60 ltr/HR ☓2 sets=120 ltr/HR

* 400 w/HR ☓2 SETS=800 w/HR

TOTAL ELECTIRC POWER

31 kw

SPARE PARTS

MOULD BY EACH SIZE

20 pairs *6 KINDS=120 pairs

MOULD LINK

20 sets

ELECTRIC PART

* MAGNET

* RELAY

FULL SETS

* 3.75 kw; 2 sets

* 10 EA

BURNER( BOILER/BURNER)

2 sets

CIRCULATION PUMP WITH 1/4HP FOR BOILER

2 sets

MACHINE DIMENSION(L * W * H)

5500 * 2050 * 3500mm
