- PID
- 3001386

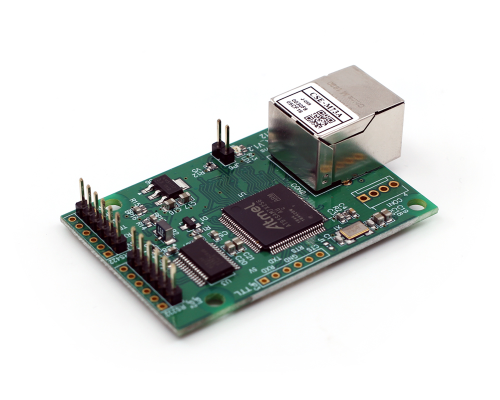

CSEM73G Serial Ethernet Module
Request For Quotation
This Embedded Serial to Ethernet Converter is equipped with flexible configuration and network communication by AT Commands among other features.
- Certification
-
- Award
-
- Shipping
-
- Lead Time5 ~ 7days
- Modes of Transport CPT,EXW,FCA
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Product Summary
CSE-M73G is an embedded serial to Ethernet module with a built-in RJ45 connector for the Ethernet interface. Embedded with an optimized TCP/IP stack, et module helps you minimize the hassle needed to mount since it comes equipped with an RJ45 connector and serial port interface with RS232, RS422, and RS485.
Detailed Description
- Features
- 1 x RS232/RS422/RS485, or 3.3V (5V tolerant)
- 10/100Mbps Ethernet
- RJ45 connector embedded
- Compact module type (64.4mm x 40mm x 17mm)
- Multi-Monitoring (maximum 8 channels)
- Separator settings for packet fragmentation
- Configuration via ezManager
