Detailed Description

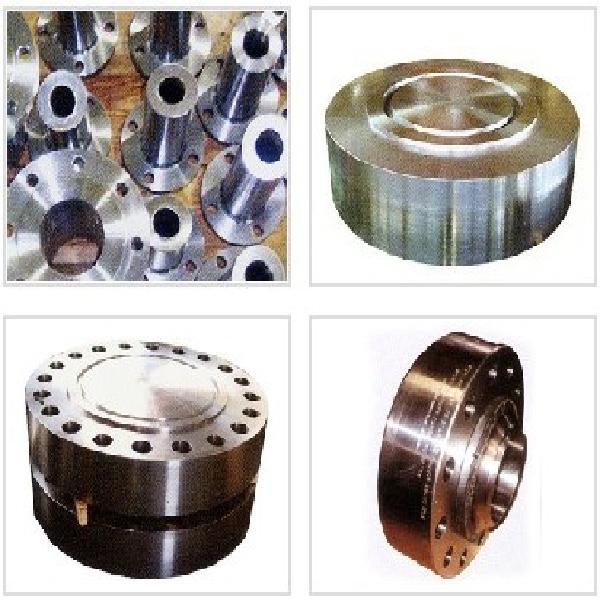

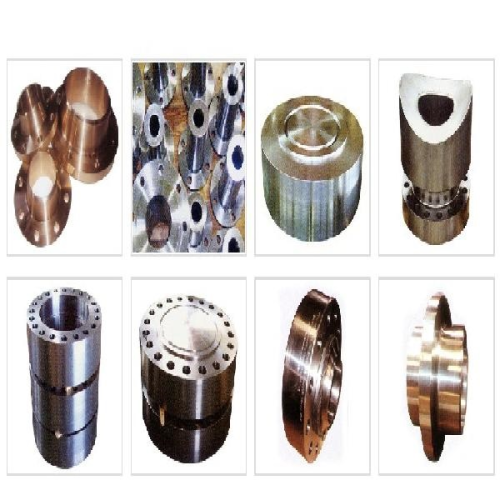

1. FLANGE

* KIND OF ITEMS :

WELDING NECT FLANGE, SLIP ON FLANGE, LAP JOINT FLANGE, BLIND FLANGE, SOCKET WELDING FLANGE, SPECTACLE FLANGE, ORIFICE FLANGE.

* APPLICABLE STANDARD :

ANSI B16.5, MSS SP-44, API605, AWWA C207, BS 3293

* AVAILABLE MATERIAL :

ASTM A105, ASTM A350 LF2, LF3, ASTM A694 F42, 52, 60, 65, 70

ASTM A182 F1, 5, 9, 11, 22, 91, ASTM A182 F304, F304L, F316L, F321, F347

ASTM A182 F51, F53

* SIZE :

1/2” ~ 60”, 62” AND LAGER SIZES ACCORDING TO THE CLIENT'S BLUEPRINTS

2. FORGING

* KINDS OF ITEMS

SR NOZZLE, NOZZLE, TUBE SHEET, FORGED NECK, CHANNEL COVER, GIRTH FLANGE, SHAFT,

BEARING COVER, CRANE WHEEL, ROLL CHOCK, DUMY BLACK, TOWER FLANGE.

* APPLICABLE STANDARD :

ACCORDING TO CLIENT’S SPECIFICATION

* AVAILABLE MATERIAL :

A266GR2, A266GR4, SFVC2A, SF45, SF540, SCM420, SCM440,

S48C, S45C, 34rMo4, 42CrMo4, ASTM A105, ASTM A350 LF2, LF3

ASTM A694, F42, 52, 60, 65, 70, ASTM A182 F1, 5, 9, 11, 22, 91

ASTM A182 F304, F304L, F316L, F321, F347

ASTM A182 F51, F53

* MAX. SIZE : OD5000mm ACCORDING TO CLIENT’S DRAWINGS

* MAX. TON : 30 TON

* CERTIFICATION : EN 102043.1, EN 10204 3.2 Y LLOYDS, BV, SGS, DNV, TUV, ETC.
