NFC Reader
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 5days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description
DUALi offers useful software develop kit , NFC manger which is designed very simple & easy to use even for the User/Developer who doesn’t have technology background.

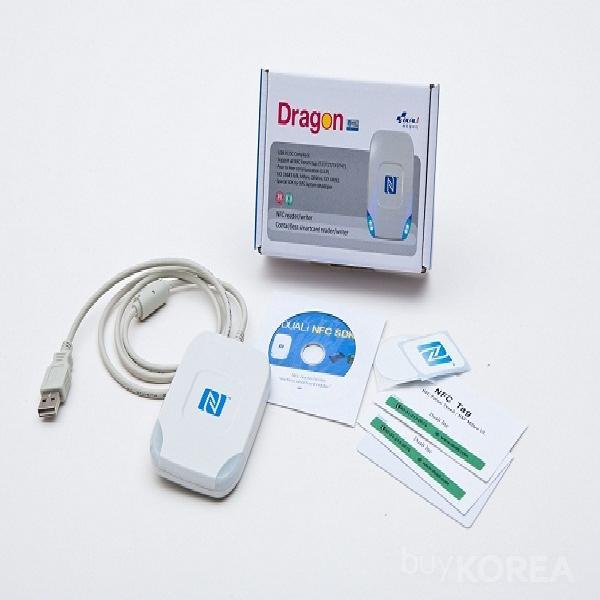

NFC EDK
• Development Kit for NFC solutions. Includes NFC reader/Writer NFC Manager software
• Operating systems: Windows XP/2000/Vista/W7 (32/64) (USB PC/SC Mode)
• Contents: Contactless reader (Dragon, USB interface) SDK CD NFC tag samples(5ea)

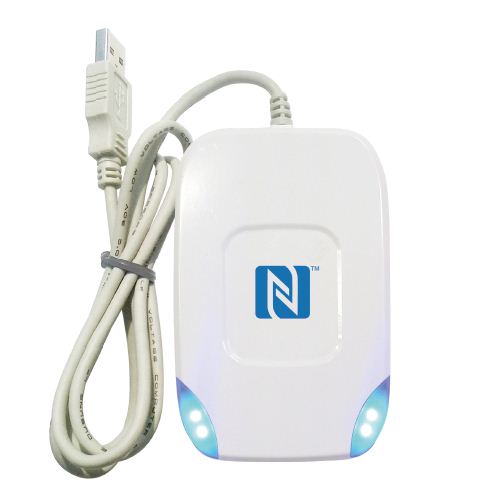

Dragon (Contactless R/W)
* Features
- Supporting all NFC Forum tags (T1T/T2T/T3T/T4T)
- Peer to Peer communication (LLCP)
- ISO 14443 A/B, Mifare, DESFire, ISO 18092
- ISO 7816 – 1ea x SIM type (SAM) -> Optional
- USB PC/SC Mode Special SDK for NFC System developer
NFC manager (Software)
Example source: Java Java document & library
1. Automatic Tag Detection and Format (Tag type 1,2,3,4)
2. Read NDEF data from Tags
3. Write NDEF data to Tags
NFC Manager Program provides 4 types of below record.
- Text Record
- URI Record
- SmartPoster Record
- vCard Record
Supporting Tag type:
| NFC Forum Type 1 Tag | Topaz IRT5011 |
| NFC Forum Type 2 Tag | Mifare Ultralight / Mifare Ultralight C NTAG203 my-d NFC SLE 66R01P my-d NFC SLE 66R32P Kovio 2k (K14T1) |
| NFC Forum Type 3 Tag | FeliCa |
| NFC Forum Type 4 Tag | DESFire, ISO/IEC 14443 standard cards |
