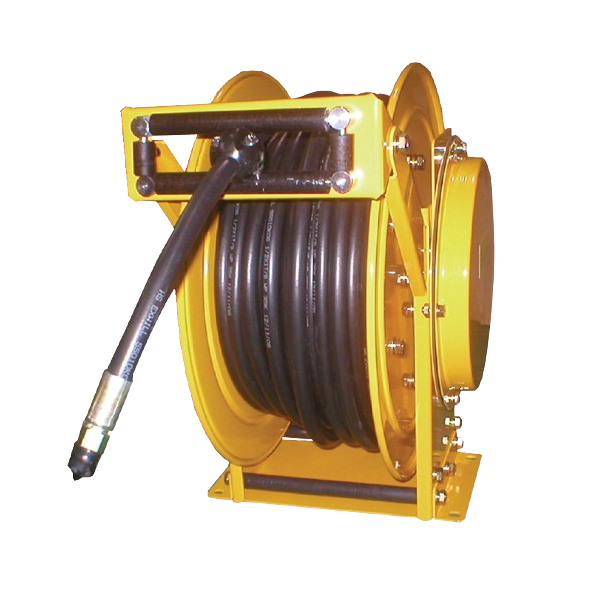

Hose Reel-'ST' Series
Request For Quotation
HOSE REEL-'ST' SERIES
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description
| For : Air,Water,Hydraulic,Lubrication etc. | |||||||||
| • For 1/4" througf 1" I.D HOSE | |||||||||
| • Hose capacity of Reel in Feet and Meters:maximum 97 feet/30meters. | |||||||||
| • Reels are all steel construction and compact design for applications with crtitical space requirements. | |||||||||
| • Stainless steel reels are available when you requsted. | |||||||||
| • Dual pedestal base and guide plate. | |||||||||
| • All bolted assembly without weldings | |||||||||
| • Dual ball bearing support. | |||||||||
| • 4-way roller assembly. | |||||||||
| • Non sparking ratchet assembly. | |||||||||
| • Full flow shaft and ball bearing swivel. | |||||||||
| • Pressures is available to maximum 10000 psi (689 bar) | |||||||||
| • Temperature operating range from -20℉ (-29℃) to +250℉ (121℃) | |||||||||
| • Consult factory for other pressures & temps. | |||||||||
| • Standard inlet 90° balanced pressure swivel joint | |||||||||
| • All(Outlet & inlet) connection threads is female NPT and matchesswibel size. | |||||||||
| • Other threads can be furnished and must be specified | |||||||||
| • Standard inlet, outlet riser and hub assembly are steel. | |||||||||
| • Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available. | |||||||||
| • Painting:powder coat. | |||||||||
| • Low pressure hose reels are furnished standard with PVC. | |||||||||
| • Medium pressure hose reels are furnished standard with S.A.E 100R1 TYPE AT one wire braid hose. | |||||||||
| • High pressure hose reels are furnished standard with S.A.E 100R2 TYPE AT two wire braid hose. | |||||||||
| • Constant Tension is available | |||||||||
