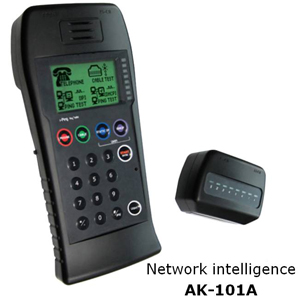

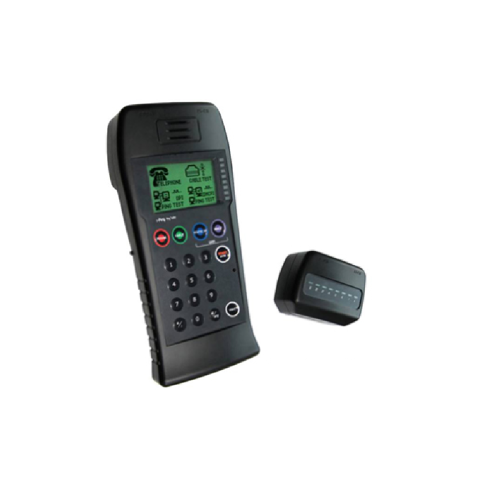

Network Cable Tester
- Award
-
- Shipping
-
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Sets
Detailed Description
1.Application :
- Network Installation & Maintenance
- Data communication / Tele-communication

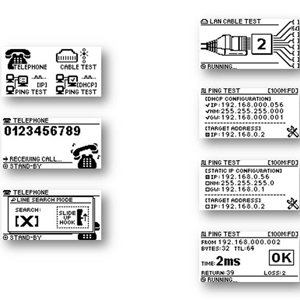

2. Feature :
1) Ping test
- Fast Ethernet access (10BASE-T/100BASE-TX)
- Auto configuration / Auto negotiation
- DHCP / Static IP
2) Telephone network
- Line check
- DTMF dialing / Speaker phone
3) Cable test
- Physical LAN Test
- Each wire(8-pin) connection
3. Specification
|
Ping Test |
|
|
Network Standard |
IEEE 802.3/802.3u |
|
Media Compatibility |
10BASE-T, 100BASE-TX - Auto-negotiation Supported - 10/100 Mbps full and half duplex |
|
MDI/MDI-X |
Auto-crossover Supported |
|
LAN Cable Test |
|
|
Test Method |
Each wire(8-pin) connectivity |
|
Corded Telephone |
|
|
Caller ID Standard |
Bell 202A - Modulation : FSK - Logical 1 (Mark) : 1200+/-12Hz - Logical 0 (Space) : 2200+/-22Hz - Transmission rate : 1200+/-12baud |
|
Dialing Method |
DTMF |
|
Line Impedance |
600Ohm |
|
Speakerphone |
Supported |
|
General |
|
|
Connector |
RJ-45, RJ-11 |
|
Display |
2.3” Mono Graphic LCD - Back Light Supported |
|
Dimensions (width x height x depth) |
Master - 3.3” x 7.4” x 1.4” - 84.1mm x 188mm x 34.9mm Remote - 3.3” x 2.4” x 1.5” - 84.1mm x 60mm x 37.1mm |
|
Weight (w/o Battery) |
Master - 8.1oz. (230g) Remote - 2.1oz. (60g) |
|
Battery |
Master - 9V Alkaline(6LR61) Remote - 9V Alkaline(6LR61) / 9V Carbon-Zinc(6F22) |
|
Operating Temperature |
10 ℃ ~ 40℃? |
|
Storage Temperature |
-10℃ ~ 60℃? |
|
Relative Humidity |
90% |
* We're welcome any discussion for OEM/ODM business including wholesale business.
