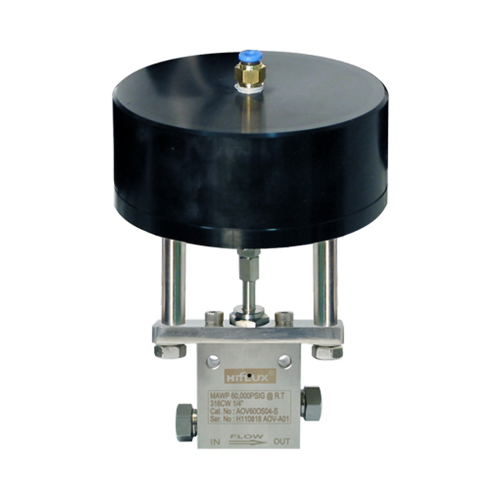

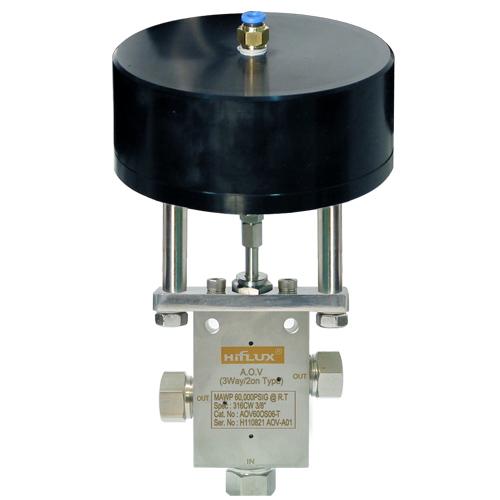

[HIFLUX] Air Operated Valve (AOV) - Normal close type


The Air Operated Valve (AOV) is a valve that opens and closes valves using air pressure.
As air pressure is used, there is almost no danger of an explosion occurring compared with valves that are operated with electric signals.
As the AOV operates under the pressure of as little as about 5kgf/cm2, the product can be used in any place where the air is supplied.
There is the Normal Close Type and the Normal Open Type according to valve conditions, whether the valve is open or closed in normal times.





Step 1. In the normal close type, the stem connected with the round plate goes downward in normal times and the valve is closed.
Step 2. If the air pressure is applied from the lower side at this time, the round plate is moved upward by incoming air pressure.
Step 3. The closed orifice is opened and the fluid (or gas) flows.
Step 4. To close the valve again, it is necessary to block incoming air pressure and vent air within the product.
Step 5. The round plate and the stem go downward again with the restitution force of a spring located in the upper part, the valve closes and blocks the flow of the fluid.



* Features

- Normal close type : When the valve is closed in normal type, if the air is supplied, it will open automatically.
- The minimum working pressure of air is 5kgf/cm2.
- The underbody of A.O.V where liquid or gas passes through also has 4 types as a needle valve.
- The system can be controlled remotely.
- Driven by air, the explosion-proof valve is safer than the electric type which may explode.
- A valve using stainless steel 316 cold material for excellent corrosion resistance.



* Pressure & Tube Size

* Body Types





* [HIFLUX] Air Operated Valve Series - Normal Close Type

15000psi Straight type	15000psi Angle type	15000psi 3Way/1on type	15000psi 3way/2on type
20000psi Straight type	20000psi Angle type	20000psi 3Way/1on type	20000psi 3way/2on type
60000psi Straight type	60000psi Angle type	60000psi 3Way/1on type	60000psi 3way/2on type

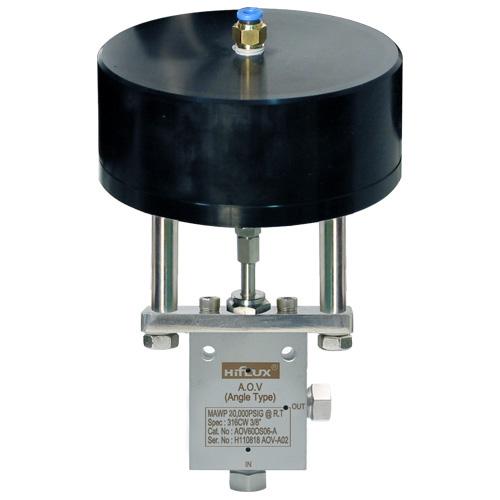

[HIFLUX] Air Operated Valve (AOV) - Normal Open type


The air operated valve (A.O.V) is a valve that opens and closes valves using air pressure.

As air pressure is used, there is almost no danger of an explosion occurring compared with valves that are operated with electric signals. As the A.O.V operates under the pressure of as little as about 5kgf/cm2, the product can be used in any place where the air is supplied. There is the normal close type and the normal open type according to valve conditions, whether the valve is open or closed in normal times.




① In the normal open type, the stem connected with the round plate is in an upper position in normal times, so the
    valve is open.
② If air pressure is applied from the upper side at this time, the round plate is moved downward by incoming air pressure.
③ The stem connected to the round plate also moves downward, blocks the open orifice and cuts off the flow of the fluid.
④ To open the valve again, it is necessary to block incoming air pressure and vent air within the product.
⑤ The round plate and the stem rise again with the restitution force of a spring located in the lower part, the valve opens and the fluid flows again.



* Features

- Normal open type : When the valve is open in normal type, if air is supplied, it will close automatically.
- The minimum working pressure of air is 5㎏f/㎠.
- The underbody of A.O.V where liquid or gas passes through also has 4 types as a needle valve.
- The system can be controlled remotely.
- Driven by air, the explosion-proof valve is safer than the electric type which may explode.
- A valve using stainless steel 316 cold material for excellent corrosion resistant.
- Air inlet port : 1/8" PT 6mm hose.

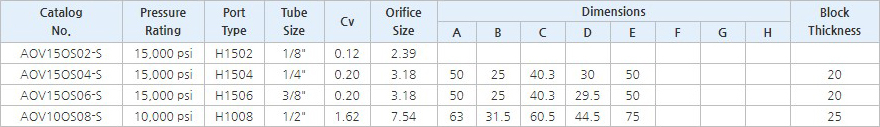

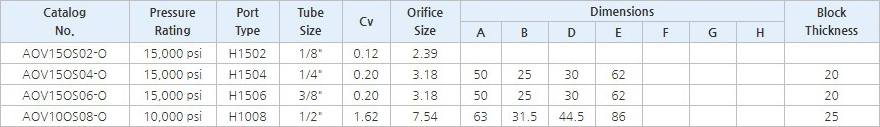

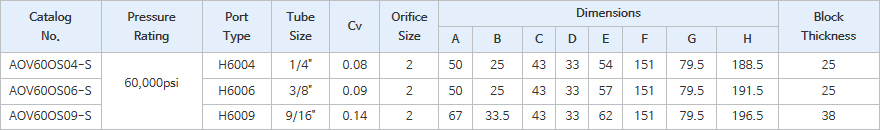

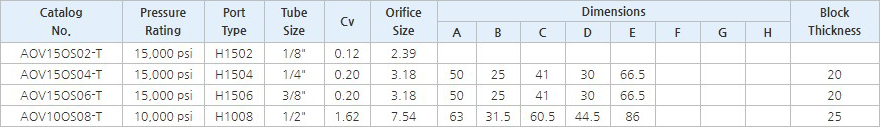

* Pressure & Tube Size

* [HIFLUX] Air Operated Valve Series - Normal open Type


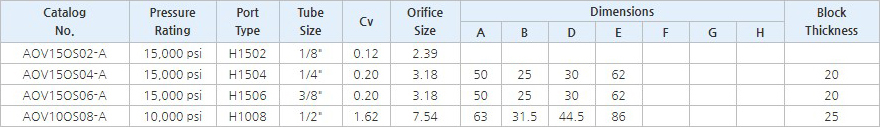

15000psi Straight type	15000psi Angle type	15000psi 3Way/1on type	15000psi 3way/2on type

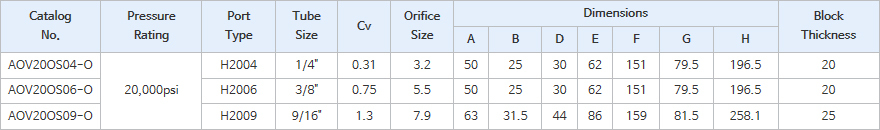

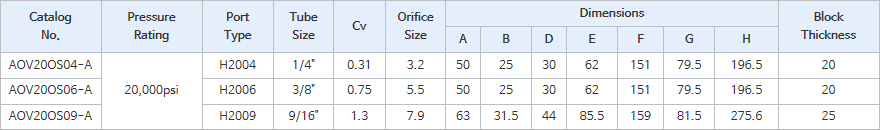

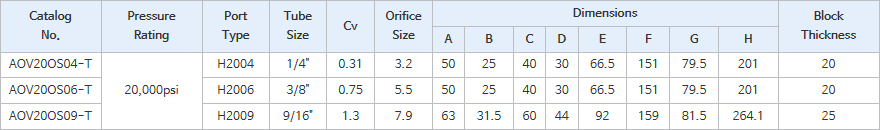

20000psi Straight type	20000psi Angle type	20000psi 3Way/1on type	20000psi 3way/2on type

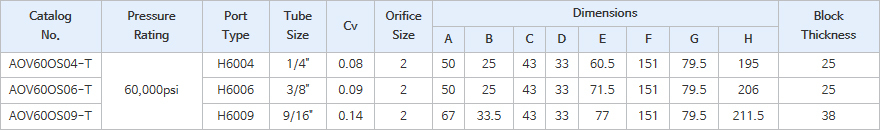

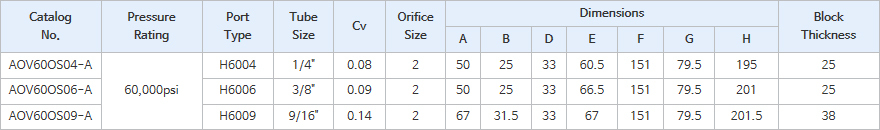

60000psi Straight type	60000psi Angle type	60000psi 3Way/1on type	60000psi 3way/2on type
