DC Worm Geared Motor 50W90W Automatic sliding Door
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10
Detailed Description
SW63 Series (SW63)
Output: 50W ~ 120W (Approx)
Typical Applications
|
- Low-Cogging and high power - Built-in Noise Filter - Insulation level B - Protection class IP50, higher class available on request. - the standard version has leads(500mm) - Motor shaft held by Ball bearing - Motor, voltage, shaft spec and lead wire, etc. archangeable on customers request |

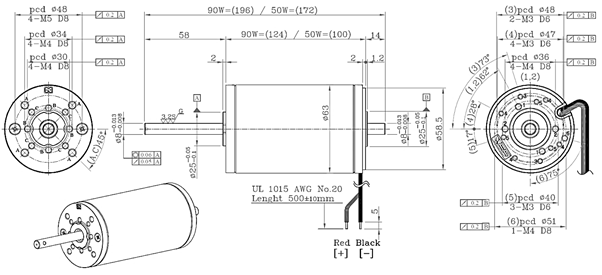

DC MOTOR (50W/90W)
■ Specification (Motor only)
|
DATA / SPEC |
SD63X50 |
|||||||||
|
Model |
5024-37 |
5024-31 |
5040-37 |
5040-31 |
5040-37 |
5040-31 |
||||
|
Output |
W |
50 |
50 |
50 |
||||||
|
Rated Voltage |
VDC |
24 |
40 |
90 |
||||||
|
Rated Speed |
rpm |
3266 |
2516 |
3208 |
2492 |
3203 |
2485 |
|||
|
Rated Torque |
Kgf.cm |
1.49 |
1.77 |
1.52 |
1.81 |
1.52 |
1.82 |
|||
|
Rated Current |
A(Max) |
2.5 |
2.5 |
1.9 |
1.9 |
1.1 |
1.1 |
|||
|
Stall Torque |
Kgf.cm(Min) |
11.4 |
12.8 |
10.3 |
11.6 |
10.4 |
11.7 |
|||
|
Stall Current |
A |
19.8 |
18.7 |
13 |
12.5 |
6.0 |
5.7 |
|||
|
No Load Speed |
rpm |
3700 |
3100 |
3700 |
3100 |
3700 |
3100 |
|||
|
No Load Current |
A(Max) |
1.0 |
1.0 |
0.8 |
0.8 |
0.3 |
0.3 |
|||
|
Cogging Torque |
gf.cm |
300 |
300 |
300 |
300 |
300 |
300 |
|||
|
Run Duty |
Hours |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|||
|
DATA / SPEC |
SD63X90 |
|||||||
|
Model |
9024-37 |
9024-31 |
9040-37 |
9040-31 |
9040-37 |
9040-31 |
||
|
Output |
W |
90 |
90 |
90 |
||||
|
Rated Voltage |
VDC |
24 |
40 |
90 |
||||
|
Rated Speed |
rpm |
3163 |
2407 |
3176 |
2436 |
3186 |
2478 |
|
|
Rated Torque |
Kgf.cm |
2.77 |
3.29 |
2.76 |
3.23 |
2.75 |
3.20 |
|
|
Rated Current |
A(Max) |
5.1 |
5.1 |
2.9 |
2.9 |
1.5 |
1.5 |
|
|
Stall Torque |
Kgf.cm(Min) |
17.2 |
18.3 |
17.5 |
18.5 |
17.8 |
18.6 |
|
|
Stall Current |
A |
34.1 |
32.8 |
20.4 |
19.5 |
8.5 |
8.2 |
|
|
No Load Speed |
rpm |
3700 |
3100 |
3700 |
3100 |
3700 |
3100 |
|
|
No Load Current |
A(Max) |
1.3 |
1.3 |
0.8 |
0.8 |
0.3 |
0.3 |
|
|
Cogging Torque |
gf.cm |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
Run Duty |
Hours |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
- The data wrote according to the No Load 3700 and 3100rpm
- 90W 24VDC Motor obtained certification “CE(EM 60034-1)”
- When you place an order more than 1LOT/100ea, It is possible to produce by special type.

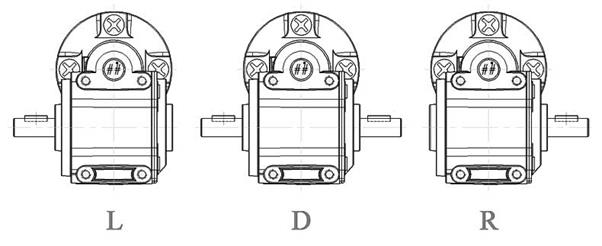

SW63 WORM GEARBOX
■ Specification (Geared Motor)
|
DATA / SPEC |
SW63 Series |
|||||
|
Reduction Ratio |
Module |
M1.5 |
M1.0 |
|||
|
Ratio & Threads |
1/10 [3’rd] |
1/15 [2’rd] |
1/30 [1’rd] |
1/24 [2’rd] |
1/48 [1’rd] |
|
|
Efficiency |
[%] |
70 |
65 |
55 |
60 |
50 |
|
Continuous Load |
[Kgf.cm] |
80 |
60 |
|||
|
Axial Load |
[Kgf.cm] |
300 |
200 |
|||

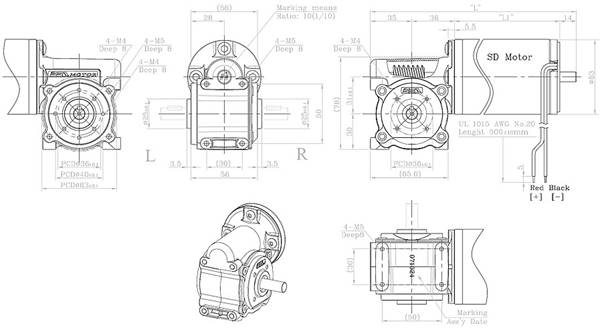

■ Dimensions (with SD63 DC Motor)
■ Specification (with SD63X90W DC Motor)
|
Motor Type & Speed (Lengths “L”) |
Output [W] |
Voltage [VDC] |
Ratio [SW63] |
No Load |
at Rated Load |
Stall |
Cogging Torque [Kgf.cm] |
||||
|
Speed [r/min] |
Current [A] |
Speed [r/min] |
Current [A] |
Torque [Kgf.cm] |
Current [A] |
Torque [Kgf.cm] |
|||||
|
SD63X90 3700rpm
(209mm) |
90 |
24 |
10 |
370 |
1.3 |
316 |
5.1 |
19.3 |
34.1 |
127 |
8.0 |
|
15 |
246 |
1.3 |
210 |
5.1 |
27.0 |
34.1 |
178 |
10.0 |
|||
|
24 |
154 |
1.3 |
131 |
5.1 |
39.8 |
34.1 |
200 |
10.0 |
|||
|
30 |
123 |
1.3 |
105 |
5.1 |
45.7 |
34.1 |
300 |
- |
|||
|
48 |
77 |
1.3 |
65 |
5.1 |
66.4 |
34.1 |
200 |
- |
|||
|
40 |
10 |
370 |
0.8 |
317 |
2.9 |
19.1 |
20.4 |
127 |
8.0 |
||
|
15 |
246 |
0.8 |
211 |
2.9 |
26.8 |
20.4 |
178 |
10.0 |
|||
|
24 |
154 |
0.8 |
132 |
2.9 |
39.7 |
20.4 |
200 |
10.0 |
|||
|
30 |
123 |
0.8 |
105 |
2.9 |
45.6 |
20.4 |
300 |
- |
|||
|
48 |
77 |
0.8 |
66 |
2.9 |
66.2 |
20.4 |
200 |
- |
|||
|
90 |
10 |
370 |
0.3 |
318 |
1.5 |
19.0 |
8.5 |
127 |
8.0 |
||
|
15 |
246 |
0.3 |
212 |
1.5 |
26.7 |
8.5 |
178 |
10.0 |
|||
|
24 |
154 |
0.3 |
132 |
1.5 |
39.5 |
8.5 |
200 |
10.0 |
|||
|
30 |
123 |
0.3 |
106 |
1.5 |
45.4 |
8.5 |
300 |
- |
|||
|
48 |
77 |
0.3 |
66 |
1.5 |
66.0 |
8.5 |
200 |
- |
|||
|
SD63X90 3100pm
(209mm) |
90 |
24 |
10 |
310 |
1.3 |
240 |
5.1 |
23.0 |
32.8 |
127 |
8.0 |
|
15 |
206 |
1.3 |
160 |
5.1 |
32.0 |
32.8 |
178 |
10.0 |
|||
|
24 |
129 |
1.3 |
100 |
5.1 |
47.3 |
32.8 |
200 |
10.0 |
|||
|
30 |
103 |
1.3 |
80 |
5.1 |
54.2 |
32.8 |
300 |
- |
|||
|
48 |
64 |
1.3 |
50 |
5.1 |
78.9 |
32.8 |
200 |
- |
|||
|
40 |
10 |
310 |
0.8 |
243 |
2.9 |
22.6 |
19.5 |
127 |
8.0 |
||
|
15 |
206 |
0.8 |
162 |
2.9 |
31.9 |
19.5 |
178 |
10.0 |
|||
|
24 |
129 |
0.8 |
101 |
2.9 |
46.8 |
19.5 |
200 |
10.0 |
|||
|
30 |
103 |
0.8 |
81 |
2.9 |
54.0 |
19.5 |
300 |
- |
|||
|
48 |
64 |
0.8 |
50 |
2.9 |
78.1 |
19.5 |
200 |
- |
|||
|
90 |
10 |
310 |
0.3 |
247 |
1.5 |
22.4 |
8.2 |
127 |
8.0 |
||
|
15 |
206 |
0.3 |
165 |
1.5 |
31.6 |
8.2 |
178 |
10.0 |
|||
|
24 |
129 |
0.3 |
103 |
1.5 |
46.5 |
8.2 |
200 |
10.0 |
|||
|
30 |
103 |
0.3 |
82 |
1.5 |
54.5 |
8.2 |
300 |
- |
|||
|
48 |
64 |
0.3 |
51 |
1.5 |
77.5 |
8.2 |
200 |
- |
|||
- When you place an order more than 1LOT/100ea, It is possible to produce by special type.

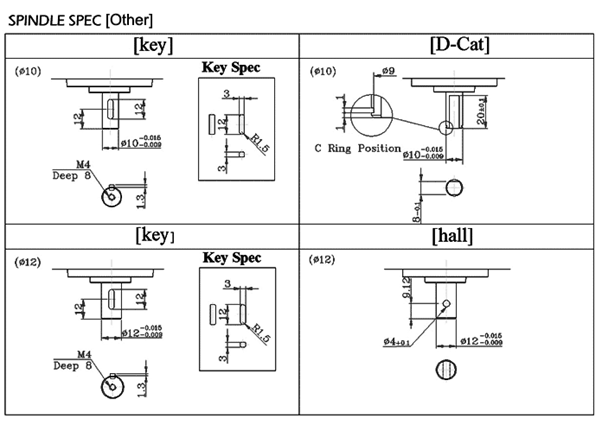

- Our standard Spindle is made by non-heat treatment. But, if you would like to get the Spindle made heat treatment, it can be made as your request.
- When the gearbox is with module M 1.5, The maximum allowance torque is 300kgf.cm and when it is with module M1, It is 200kgf.cm
