** Crane Bar System (Crane Busbar, Trolley Bar, Power Conductor Bar) **

1. Features

- Crane bar system is a power feeding system which is to supply electric power for operating an overhead crane in the direction of runways.

- Five (5) types of crane bar systems are available with us, which applies to the lifting capacity and functions of overhead cranes required by the customer.

2. Type & Specifications by Model No.

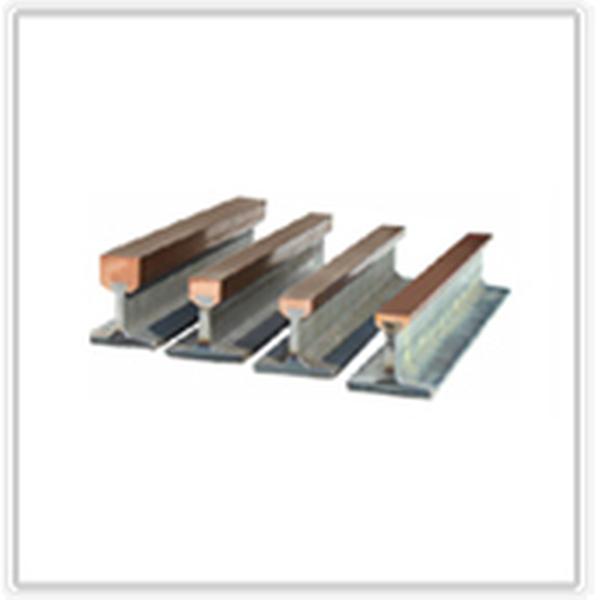

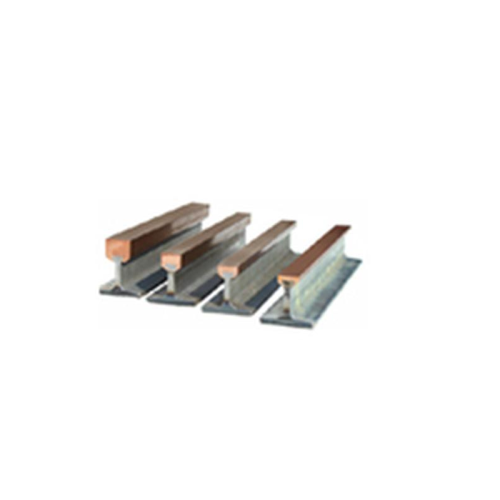

2-a) Copper Headed Steel Rail Type (Copper/head + Steel/rail)
* Range of Amperage: 300A to 3,200A
* Length: 6m/pc

* Specifications by Model No.

a) ES-STB-03/24kg/300A/Copper+Steel

b) ES-STB-05/26kg/500A/Copper+Steel

c) ES-STB-06/28kg/600A/Copper+Steel

d) ES-STB-08/30kg/800A/Copper+Steel

e) ES-STB-10/36kg/1000A/Copper+Steel

f) ES-STB-12/41kg/1200A/Copper+Steel

g) ES-STB-15/51kg/1500A/Copper+Steel

h) ES-STB-18/53kg/1800A/Copper+Steel

i) ES-STB-20/58kg/2000A/Copper+Steel

j) ES-STB-25/65kg/2500A/Copper+Steel

k) ES-STB-30/70kg/3000A/Copper+Steel

l) ES-STB-32/75kg/3200A/Copper+Steel

* Accessories: Joint keeper, Expansion section, Hanger clamp, Power feeder, Locating clamp, Pantograph, Bracket, etc.
- Used as a power feeding system for heavy duty overhead cranes traveling at steel mills exposed to extremely high heat.

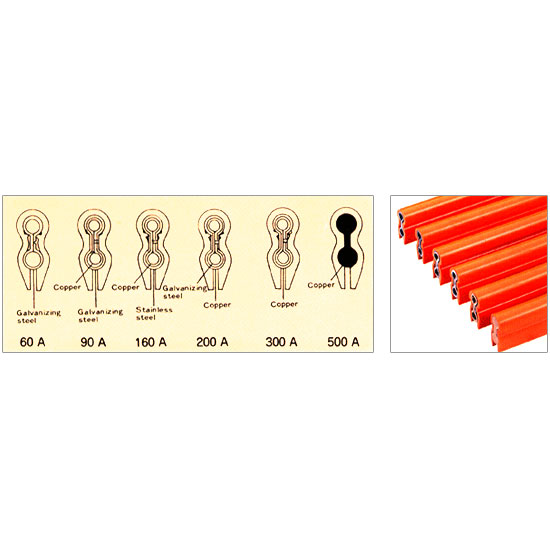

2-b) Insulated Peanut Type
* Range of Amperage: 60A to 300A
* Length: 3m/pc

* Specifications by Model No.

a) ET-1-007/2.40kg/60A/Galvanized Steel(100%)

b) ET-1-001/2.75kg/90A/Galvanized Steel(85%)+Copper(15%)

c) ET-1-009/3.00kg/160A/Copper(50%)+Stainless Steel (50%)

d) ET-1-003/3.00kg/200A/Galvanized(50%)+Copper(50%)

e) ET-1-005/3,15kg/300A/Copper

  * Accessories: Power feeder, Hanger clamp, Joint cover, Joint keeper, Expansion section, Collector, bracket, etc.
- Used as a power feeding system for light & medium duty of overhead cranes traveling at general manufacturing shop, warehouses, material storage yard, etc.
- 160A is for acid-proof type made of copper and stainless steel.

2-c) Insulated UB-Bar Type
* Range of Amperage: 200A to 2000A
* Length: 6m/pc

* Specifications by Model No.

a) EC-U30-2/200A/Copper(100%)

b) EC-U30-3/300A/Copper(100%)

c) EC-U30-5/500A/Copper(100%)

d) EC-U40-8/800A/Copper(100%)

e) EC-U40-10/1000A/Copper(100%)

f) EC-U50-15/1500A/Copper(100%)

g) EC-U50-18/1800A/Copper(100%)

h) EC-U50-20/2000A/Copper(100%)

* Accessories: Power feeder, Hanger clamp, Joint cover, Joint keeper, Expansion section, Collector, bracket, etc.
- Used as a power feeding system for medium & heavy duty overhead cranes traveling at heavy industries companies.

2-d) Insulated Al-Heavy Bar Type
* Range of Amperage: 500A to 1,500A
* Length: 6m/pc
* Specifications by Model No.

a) EC-AL-1001/18.4kg/500A/Aluminum

b) EC-AL-1002/26.0kg/1000A/Aluminum

c) EC-AL_1003/34.0kg/1500A/Aluminum

* Accessories: Joint assembly, Expansion section, Feed-in conductor, Hanger clamp, Carbon brush, Collector, Bracket, etc.
- Used as a power feeding system for heavy duty of overhead cranes traveling at shipbuilding yards exposed to a variety of chemical dust.

2-e) Insulated H-Bar Type
* Range of Amperage: 500A to 1,000A
* Length: 6m/pc
* Specifications by Model No.

a) EC-H-5/500A/Aluminum + Stainless Steel

b) EC-H-8/800A/Aluminum + Copper

c) EC-H-10/1000A/Aluminum+ Stainless Steel

* Accessories: Joint assembly, Expansion section, Feed-in conductor, Hanger clamp, Carbon brush, Collector, Bracket, etc.
- Used as a power feeding system for heavy duty of overhead cranes traveling at shipbuilding yards exposed to a variety of chemical dust and high humidity.


3. General Terms & Conditions

* Payment: By telegraphic transfer (T/T)

* Delivery: Three (3) weeks on an FOB Korea basis

* Packing: By wooden box type of packing

* Country of Origin: Republic of Korea (South Korea)

* Supplier: Kumoh Corporation, Korea
* Product Catalogues by Type: Available upon request
