ㅣIntroduction&Function

CodeWiz – Arduino-Type Coding Educational Device

■ What is CodeWiz?

CodeWiz is an all-in-one board that can complete software, AI, IoT, and Maker education on one board. CodeWiz includes Bluetooth, Wi-Fi, and various sensors, making it a perfect educational board for convergence education projects.

■CodeWiz Features:

▶ Embedded OLED and Neopixels enable learning of various colors and images

▶ Spatial learning with a distance sensor that measures distance and a 3-axis the sensor that measures the tilt

▶ Sensory learning with MIC sensor and buzzer for sound input/output

▶ Excellent expandability with 6 touch sensors and 2 button sensors

(Can connect a LEGO brick to the hole of the touch sensors)

▶ Simple brushless motor control and LED control using digital output

▶ Wi-Fi and Bluetooth connection available (Sensors can be controlled from the web by designating CodeWiz as a server)

▶ Light sensor, Hall sensor, and Temperature sensor are all built into one board

→ possible focus on software training to avoid making complex circuits each time

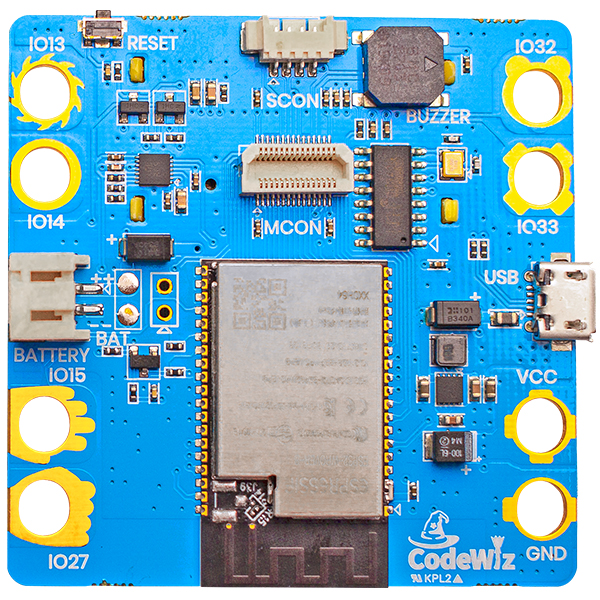

■ Codewiz Hardware Specifications

[Micro-Processor]

ESP32-Wrover-B Xtensa dual-core LX6 microprocessor (Clock Speed: 240MHz)

[Communication Interface]
Wi-Fi, Bluetooth, micro-USB, I2C

[Onboard Memory]
Flash: 440K
RAM: 520K

[Expanded Memory]
SPI Flash: 4MB
PSRAM: 8MB

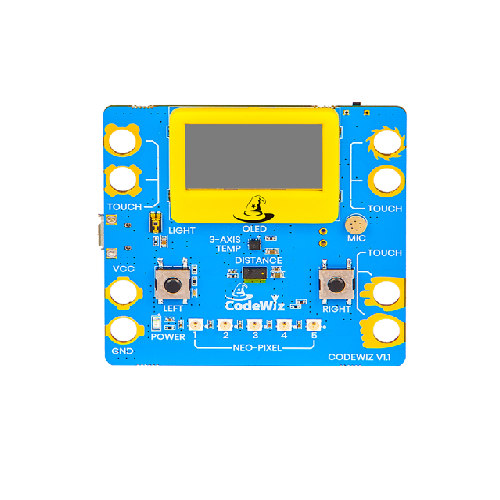

[Onboard Components]
5 Neo-Pixel
Light Sensor
3-Aixis Gyro-Sensor
Microphone
2 Button
6 Touch Sensors (I/O Pins)
Distance Sensor
0.96Inch Mono OLED
Passive Buzzer

[Power]
Operating Voltage : 3.3V
Input Voltage : 2.6 ~ 5.5V
(Alkaline AA(AAA) 2Cell, 3Cell, Lithium ion, USB Power)

[Dimensions]
55mm by 55mm

ㅣCompany introduction

Our company name, CODABLE, is a compound word formed from the words 'code + able', which means the possibility of transforming one’s imagination into reality using coding.

CODABLE Co., Ltd. is a company that develops and distributes coding education, curriculum and textbooks.

We develop an appropriate and healthy curriculum for coding education.

▶ Software Basic Education Curriculum

- CODABLE's entire curriculum is structured and widely used in elementary, middle school, high school, and college education.

It is a curriculum that engages students and creates a long-term plan in software education.

CODABLE's Software Basic Education Curriculum is an interesting program that can be selected and used according to the purpose of education, and is applied using a Creative Problem-Solving Model, STEAM education, and subject linkage.
