Model UF300 Gene Checker Ultra Fast Real Time PCR System
- Certification
-
- Award
-
- Shipping
-
- Type of Freight MM
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description

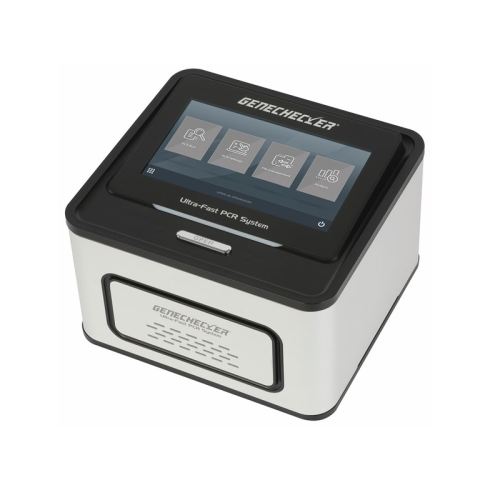

GENECHECKER® Model UF-300 Real-time PCR System
Fast, Compact, and Intuitive Platform for Point-of-care Molecular Diagnostics
- Patented chip based reaction provides rapid output - “40 Cycles in 20 Minutes”.
- Intuitive user interface (LCD touch panel) makes the test simple and easy.
- Small footprint of the platform makes it ideal for point-of-care testing applications.
- DC driven operation with low power consumption (Battery operation is possible.)
- Improved temperature accuracy and uniformity.
- Dual detection channels (FAM/ROX) available.
Integrated touch panel user interface for intuitive controls.
GENECHECKER® UF-300 Real-time PCR System has a touch panel interface on the top so that users can set the parameters and instantly run the tests. This 8-inch panel is made of TFT display to provide a brighter view and faster response.
Improved instrument performance for delicate diagnostic applications.
While it maintains its unique performances of ultra-fast reactions, UF-300 real-time PCR system offers improved temperature accuracy and uniformity. This platform has dual detection channels (FAM/ROX) for the application demanding internal controls of the test.
SPECIFICATION
| Operating Mechanism | Precise control of peltier element |
| Temperature Accuracy | ± 0.2°C |
| Temperature Uniformity | ± 0.2°C (well to well) |
| Ramping Rate | 8°C / second |
| Range of Temperature Setting | 1 ~ 99°C (0.1°C resolution) |
| Sample Format | Polymer based 3-Dimensional Microfluidic Chip |
| Number of Sample per Run | 10 |
| Reaction Volume | 10μl |
| Method of Detection | Measurement of fluorescence signal using CMOS module |
| Display and User Interface | 7-inch TFT display capacitive touch panel |
| Type of Excitation | High brightness LED |
| Detection Channel | FAM and ROX |
| Emission Wavelength | FAM : 472 nm / ROX : 575nm |
| Power | AC 100-240V, 50/60Hz Input / DC 12V Output(MAX 2.0A) |
| Current Consumption | Max. 2.0A |
| Connectors | USB Type A 2 ports |
| Dimension | 218(w) x 200(d) x 142(h) mm |
| Weight | 3.3 kg |
ORDERING INFORMATION
| Cat. No. | Description | Pack Size |
| 1399100200 | GENECHECKER® UF-300 Real-time PCR System | 1 SET |
| 1699100500 | Optional Power Cable for Car Cigarette Power Socket | 1 SET |
