#Gas Analyzer #Flue Gas Analyzer #NOx. SO2 Analyzer

About DGA-X

• Multi gas analyzer by UV DOAS (UV absorption) measuring principle, which features almost no interference by moisture and particles.

• Best suited for process monitoring such as SCR/FGD, and also applicable for CEMS.

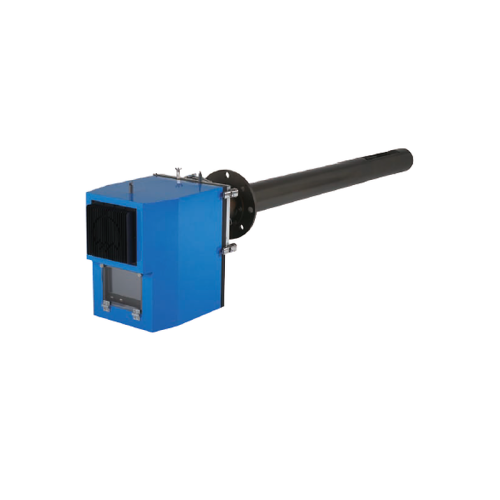

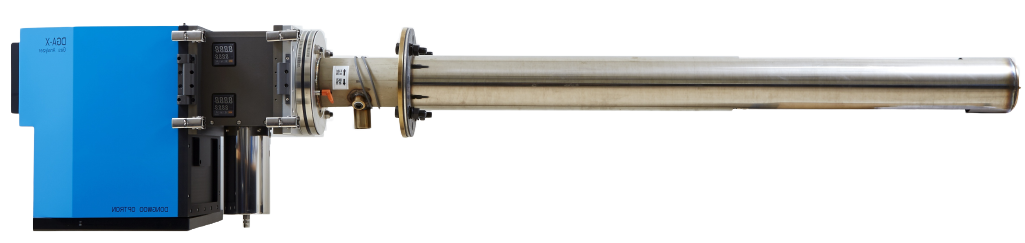

DGA-X is an In-Situ type analyzer applicable for CEMS (Continuous Emission Monitoring System) and Process monitoring.

It is designed to quantify and analyze hazardous environmental gas components, SOx, NOx, and NH3.

Taking advantage of the benefits of the UV light source DGA-X efficiently detects even the weakest emission signals, which can be easily influenced by other environmental parameters like dust and humidity.

DGA-X is equipped with an auto calibration unit containing a reference zero gas cell, and through this convenient feature, users can efficiently maintain the equipment on a regular basis.

DGA-X is designed to cover a variety of applications including petroleum or fossil fuel based power plants, petrochemical plants, waste incineration plants, steel plants, cement manufacturing plants, textile plants, pulp manufacturing plants, and other facilities that generate environmentally hazardous emissions.

Key Points

• Simultaneous measurements for two components among NOx, SO2, and NH3

• Less interference from moisture and particles as it uses UV light source

• NOx converter is not required as it measures NO and NO2 separately

• Enclosure level up to IP66 and NEMA4X

• Real Gas Calibration using patented Auto Calibration Unit (ACU)

• EX version is available as an option

Certification

- Type Approval (Korea)

- Performance Approval (Korea)

- CPA, CCEP (China)

- TUV (Germany)

- CE

- CB

- EAC

Company Information

Established in 1989, Dongwoo Optron has succeeded in developing the first flue gas analyzer in Korea based on many years of experience in spectroscopy.

With continuous effort and investment to improve the quality and performance, Dongwoo Optron has achieved total sales of more than 2,000 units of flue gas analyzers and established itself as one of the leading flue gas analyzer manufacturers.

In pursuit of ‘Accurate Analyzer with User-friendly System’, Dongwoo Optron will continue to strive to achieve customer satisfaction and trust in the global market.
