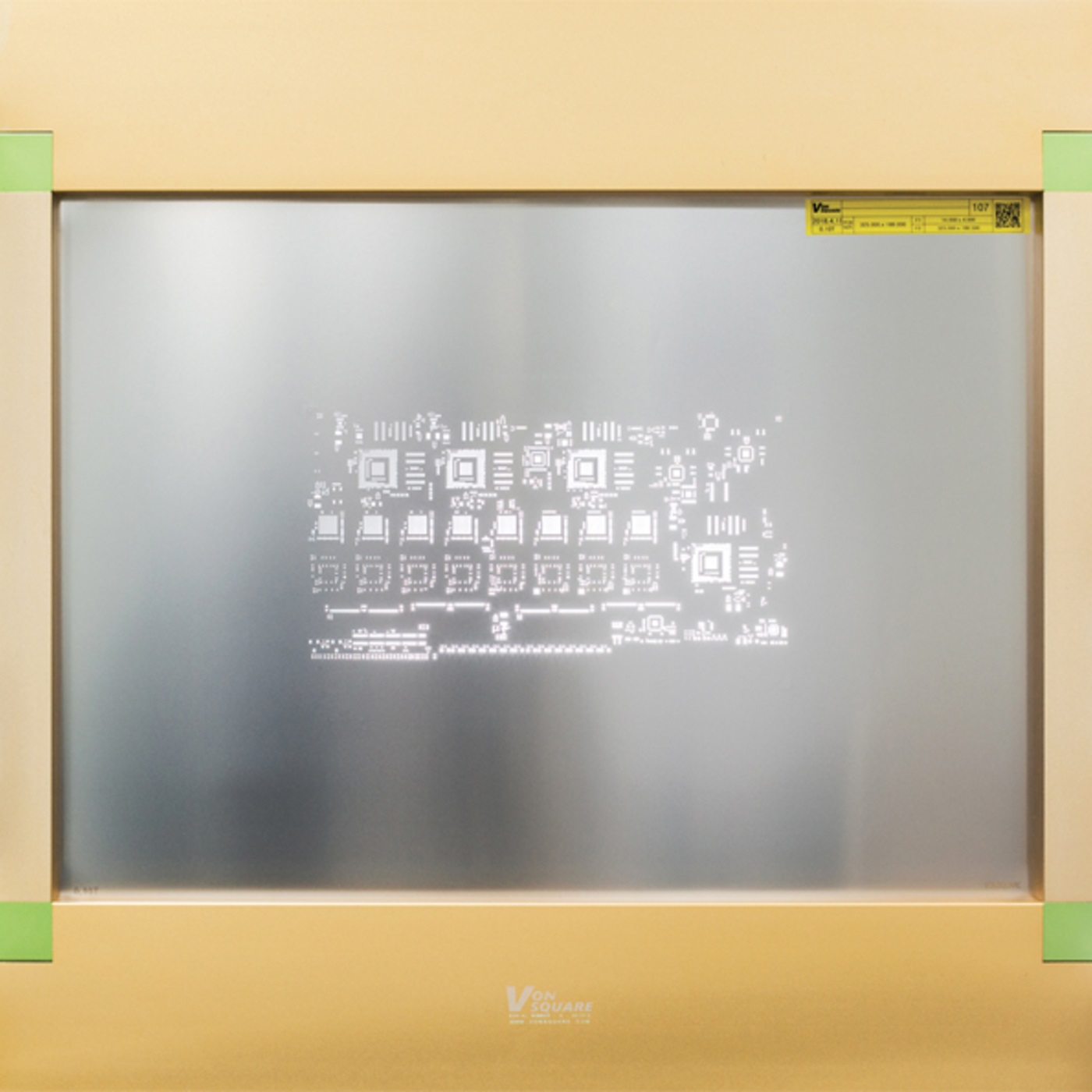

VONSQUARE - FRAMELESS ADJUSTABLE TENSION DESCRIPTION:

Vonsquare can adjust the tension and replace stencils on a soldering printer.

It is rent-free. Enjoy it without any time and financial complexities.

Technical Specifications

*23" x 23" Frameless will be launched shortly.

• High tension

  It can adjust tension by air supply (0~6bar).

  Greater, more consistent tension over the life of the stencil as compared to mesh-mounted stencils.

  Test results show that tension is an important production condition for transfer efficiency and density.

  The tension of mesh-mounted stencils is 40~50 N/cm and fixed.

  The tension of VONSQUARE’s Frameless is 35~70 N/cm and adjustable.

• Rent-free service

  VONSQUARE’s Frameless is rent-free.

  We know that you simply cannot afford to invest time and money into a needlessly complex system.

  As a technology leader, we can eliminate the hassle of complex processes.

• Replaceable stencils within the facility

   VONSQUARE’s Stencils are easy to be replaceable on soldering printers.

  Existing frameless needs loading jig and high air supply.

  But Replacement of VONSQUARE’s Frameless is the lift-and-slide system and does not requirea  loading jig and a high air supply.

  It does not need a continual air supply to maintain their tension as well.

• Function of adjustable tension

  Possible to set tension for each model of stencils.

  Possible to set tension for specific usage time and frequency.

  Tension setting of same condition every time use.

• Friendly to environment

   Mesh mounted stencils are inevitable to use hazardous chemicals (such as bond).

   VONSQUARE’s Frameless does not use any hazardous chemicals.

• Greater available print area

   Grater available print area for large board applications. Better transfer efficiency and excellent solder paste deposition definition.

• Improved mounting reliability

   Existing frameless products may potentially burst tube and need repair kit, or service.

   VONSQUARE’s Frameless has excellent durability driven by a cylinder type with a self-developed stencil mounting method.

• Safety for operator and stencil

   VONSQUARE’s Stencil is light for easy handling and prevents potential operator’s injuries on the sharp stencil edges.

• High quality

   VONSQUARE’s Frameless is produced from custom-made precision machined products with a highly reliable tensioning system.

   Each frame is assembled individually, and tested according to the highest standards.

• Extended lifetime of stencils

   Mesh mount stencils and other frameless (tube type) will inevitably break down and reduce tension over time.

   But VONSQUARE’s Frameless maintains the tension adjustment.

• Consumables

   VONSQUARE has no consumable parts except Air inlet.

   A rigid frame reduces the potential for stencil handling damage.
