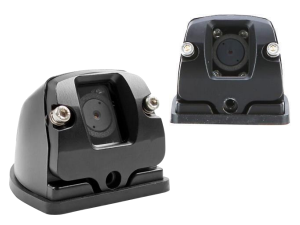

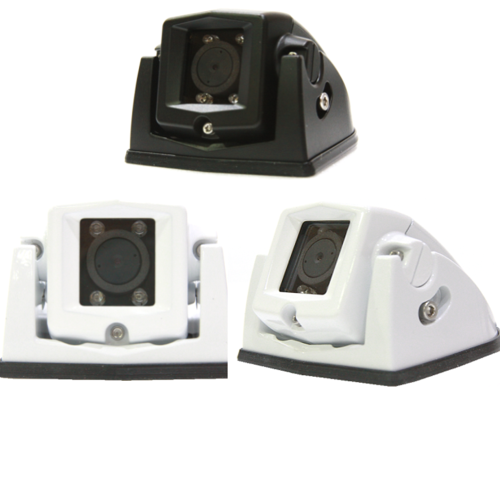

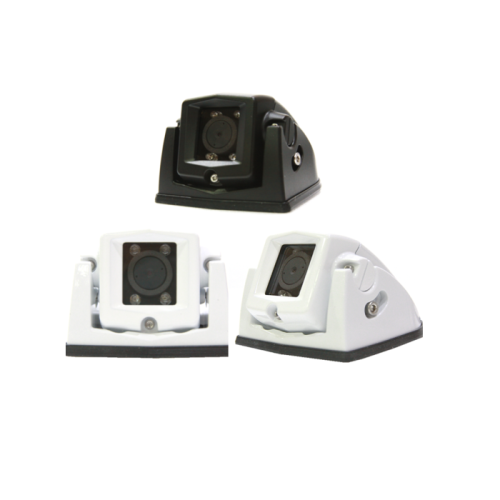

XCR-45FN   /   XCR-F45 SIDE CAMERA

[ Features ]

- Sony 1080P CMOS camera    - Analogue high definition 1080P support    - D-WDR    - Sharp & wide angle view

- Certified IP Rating    - Harsh environment tested    - Built-in low light 4 IR LEDs    - Enhanced H/V resolution

- IEC 529, IP69K    G-Force rating : 30G

[ Specifications ]

- Image sensor : 1/2.9" 2.12M Sony CMOS Image sensor

- Effective Pixels : 1936(H) x 1097(V)

- Video signal system : AHD (Analogue high definition 1080P)

- Synchronizationsystem : Internal

- S/N ratio : M,48db (AGC off)

- Minimum Illumination : 0.2 Lux

- Video Out : 1080P@30fps / 1080P@25fps  /  CVBS@960H

- BLC : Auto

- IRIS : Electronic Auto IRIS

- Vew angle : 180Deg

- Operating Voltage Range : 9V~32V

- perating Termp : -30~80˚C

- Storage Temp : -40~85˚C

- Weight : 0.42Kg

- Dimention : 45(W) x 61(D) x 41(D)mm -XCR-45FN                   69(W) x 61(D) x 60(H)mm -XCR-F45
