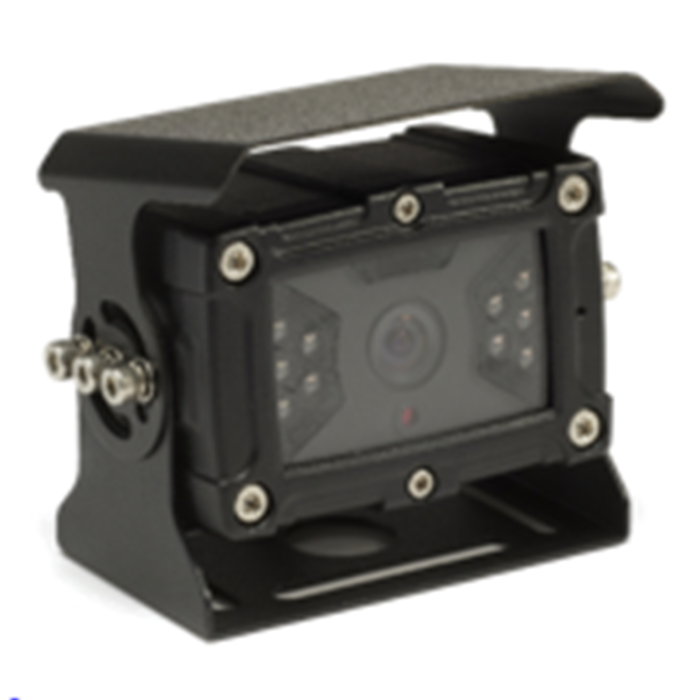

[ Specification ]

- Image Sensor : 1/2.9" Sony Progressive Scan CMOS Image sensor

- Total Pixels : 2000(H) x 112(V)

- Number of Effective pixels : 1984(H) x 1105(V), 2.19MP

- Video Signal System : AHD, Internal, Option (CVBS, 960H)

- Max. Video Resolution : 1080p@30fps/25fps

- S/N Ratio : 50db or more (AGC OFF)

-Min. Illumination : 0Lux ( With IR LED), 6Lux : LED On,  25Lux : LED Off)

- Lens : 2.45mm, (F2.0), D(147˚ ), H(109˚ ), V(83˚ )

- Option : Mechanical Day & Night (IR filter changeable)

- Power Input Range : 12V (8~30V), 2.5W

- Power Consumption (DC 12V) : IR ON Max (230mA), IR OFF Max (90mA)

- Operation Temperature : -20~70℃

- Storage Temperature : -40~ 85℃

- Size(W.H.D) : 85 x57.5 x 50mm

- Weight : 0.5Kg
