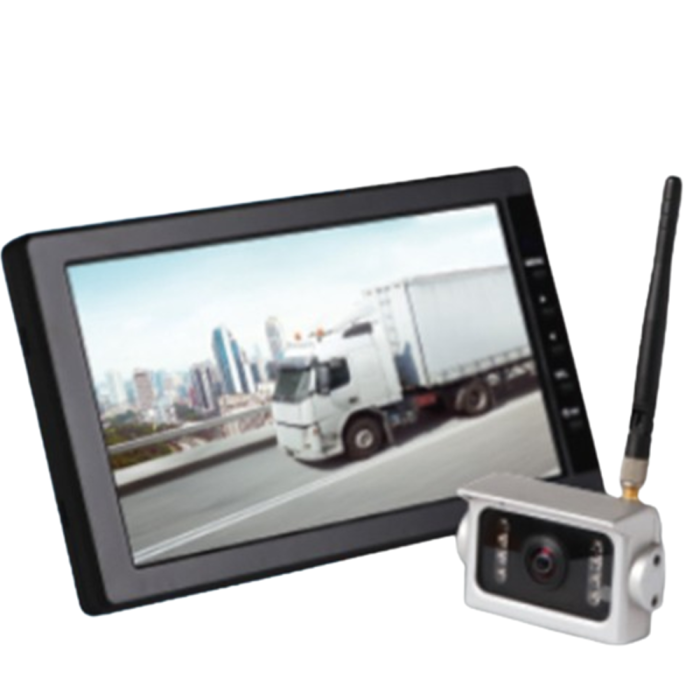

• Product name: Wireless transmission/reception monitor and camera
• Brand name (Company/Brand name): XRM
• Type: Wireless
• Usage: For vehicles
• Material: Plastic monitor case / Aluminum die-cast camera case
• Voltage: DC 10~32V
• Power: 7W
• Size/Dimension: 184(w) x 109(H) x 16.5(D)mm
• Weight: 370g
• Warranty: TBD
• Certification: FCC / CE,,,

1) XRM-700(RX monmitor)

   -Screen size : 7Inch     -Resolution : 1280 x 720p     -Luminance : 400cd

   -External Input : A/V2(NTSC/720p30fps)/1080p30fps + MONO)

   -Audio Output : Built-in Speaker     -Video system : CVBS/AHD/TVI     -Receive : 1 A/V (AHD 720p30fps), No Audoo

   -Frequency : 2400~2483Mhz     -Operating Voltage : DC12~MAX 32V     -Consumption :  840mA/12V, 420mA/24V

   -Operating Temperature : -20~60C     -Receiver Antenna : Built-in     -Weight : 300g

   -Demension : 184(W) x 109(H) x 16.5(D)mm     -Accessories : Ext. cable/ Remote control

   -Other : FM. TX(88.3~90.0Mhz)

2) XCR-100(TX rear camera)

    Image sensor : 1/3" Sony CMOS     -Signal system : NTSC/PAL     -View angle : H. 170   V 130

   -Transmission(Range) : A/V 100m     -Frequency : 2400~2483Mhz     -Consumption : 4W     -Operating Temperature : -20~70

   -IR LED : 8 LEDs     -Waterproof : IP69K (Diecasting Metal housing)     -BLC : Auto     -IRIS : Electronic Auto

   -Resolution : 1280 x720p     -SN Ratio : More than 48db     -Weight :250g     -Size : 76(W) x 50(H) x 42(D)

   -Accessoris :Ext. cable, mountinh Bracket & Screw kits

3) XCR-45NW Side camera(Option)

   -Image sensor : 1/3 Sony CMOS     -Sygnal system : NTSC/PAL     -Vew angle : (H)170, (V)130   -G-force Ratio : 40G

   -Min. I,lllumination : 0 Lux     -Adjustable view angle by mount bracket     -Operating Voltage : 9~24V

   -Consumption : 4W     -Operation Temperature : -30~85     -4 x IR LEDs     -IP69(Diecasting Metal housing)

   -BLC : Auto     -Electronic Auto IRIS     -Resolution : 700 TV line     -SN Ratio : More than 48db
