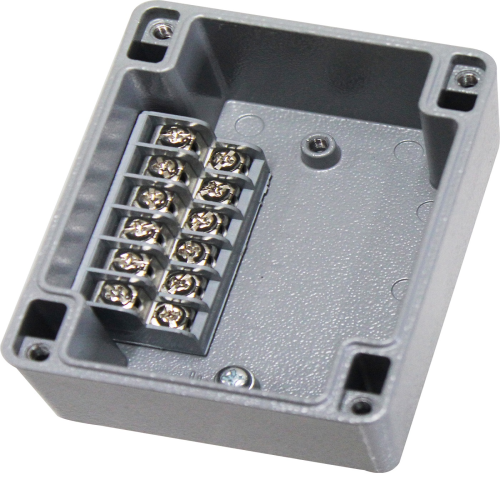

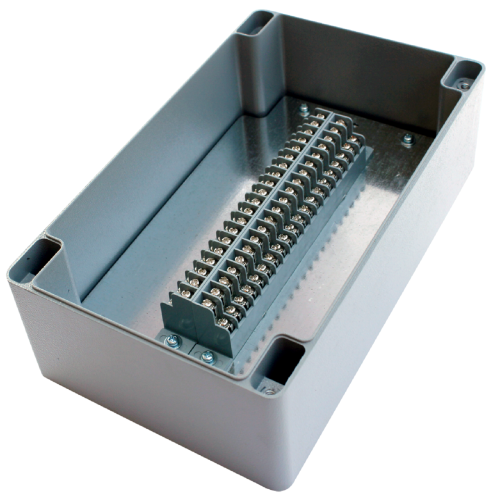

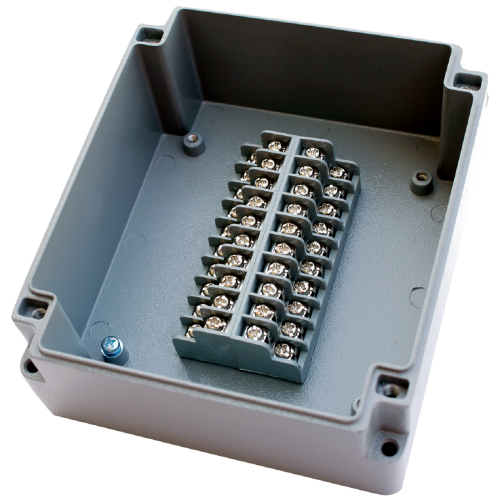

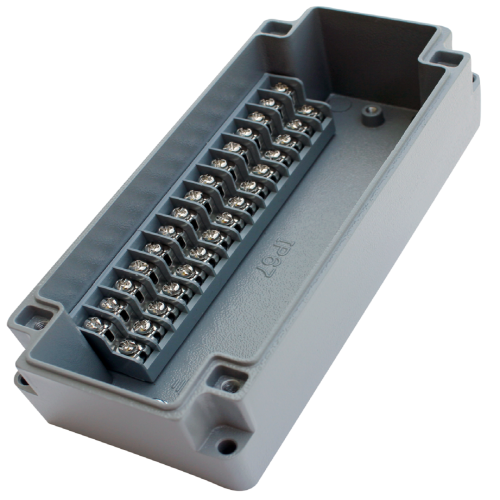

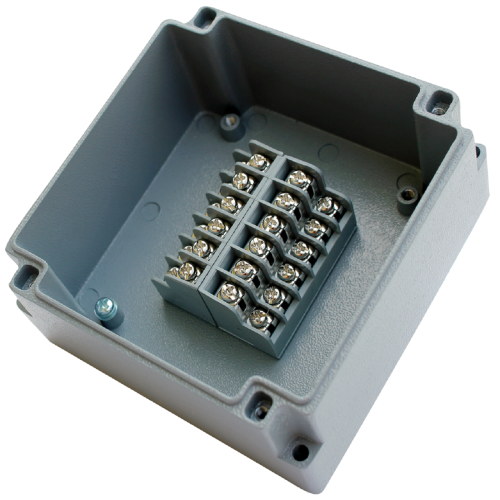

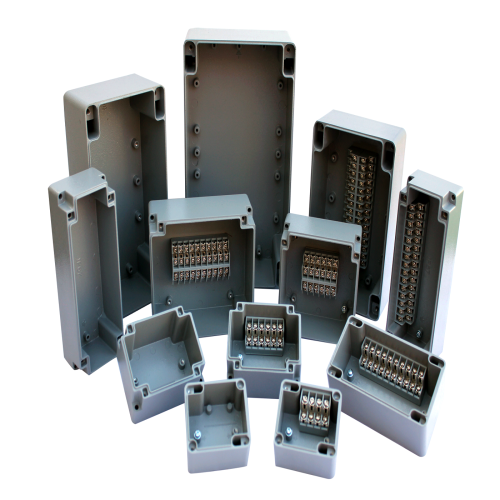

The aluminum terminal box is an integrated junction box with terminals located inside the box.
Our aluminum terminals are manufactured from aluminum (AL 12 type) with a standard rating of 10 Amp to 250 V, and the
exterior is painted in gray. Just like our aluminum boxes, the aluminum terminal boxes are packed with polyurethane gasket
foaming, providing excellent waterproofing and dust proofing, and are used in a wide range of industrial machinery, robotics,
commercial wiring and low voltage control systems.

Feature
This is all-in-one type terminal with various sizes and terminal types, and its polyurethane foaming is effective for waterproofing

and dust proofing, and is highly productive and efficient.

Electrical Specifications
Allowable current: 10 A
Rated frequency: 50Hz
Rated input voltage: AC 250 Volts
Withstand voltage: 1880V / 1 minute

Product Specifications
Color: Gray
Tolerance: ± 1mm
Thickness: 3.5T ~ 4T
Operating temperature: -20℃ ~ +70℃
Protection rating: IP67
Material: Aluminum (AL 12 types),
ABS incombustible (Terminal Block)
