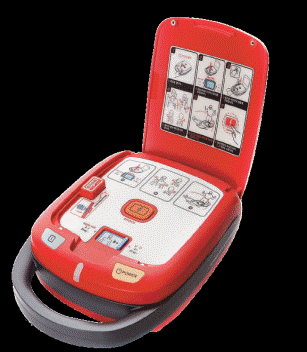

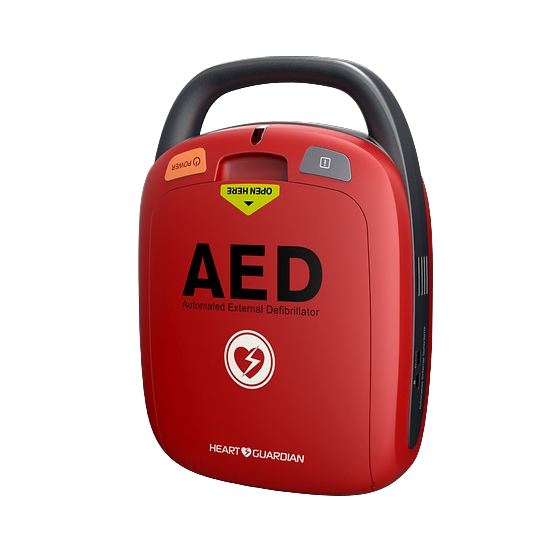

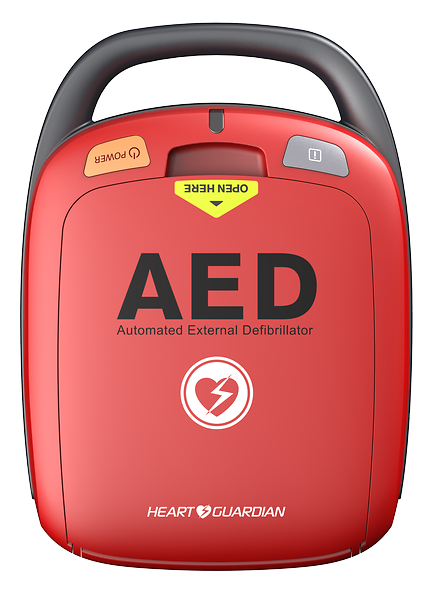

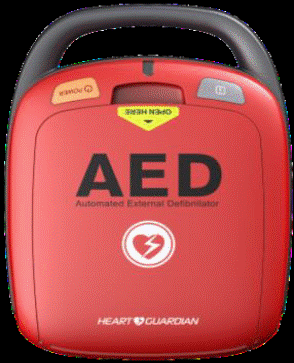

RADIANQBIO AUTOMATED EXTERNAL DEFIBRILLATOR HR501



We are pleased to submit this proposal for RADIANQBIO AED Automated External Defibrillators (AED).

RADIANQBIO AED is a portable electronic device (size of a laptop) Made in Korea  that is used to

treat Sudden Cardiac Arrest (SCA).







 RADIANQBIO AED (Automated External Defibrillator) helps recover normal cardiac function upon acute heart disease, such as acute cardiac arrest, by providing cardiac function analysis and, if necessary, electroshock.

HeartGuardianTM as an AED, provides precise analysis of victims' body conditions and configures exact amount of shocks needed, promising safety and quicker responses.

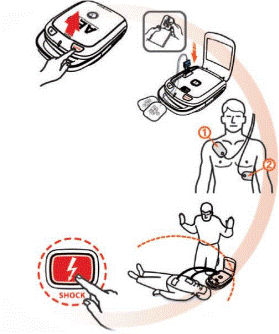

 Easy to use and accessible by all without special  training

•             At the moment Heart Guardian is opened, auto-

                     guidance will be provided for every stage of the

                     operation.

•

•           In case of difficulty listening to the audio-

            guidance, LED indicator will guide you

•           From analysis to charging, all services are automatic

•          All you need to do is to apply the pad at the right

           place and press a button to start

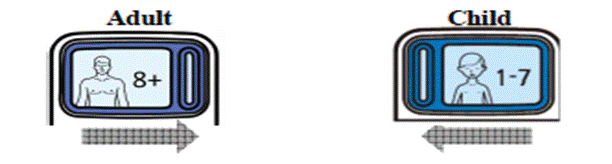

Compatible with both Adult and Child



  AED pad is applied regardless of age and gender, simply by setting up one button

HeartGuardian provides precise amount of shock energy tailored to patents body size and condition of two different levels



HeartGuardian offers data extraction with the embedded memory

HeartGuardian AED offers «defibrillation blackbox» by recording operation history

Once recorded, data can be transferred out and analyzed through Bluetooth-enabled functions



Prompt and Accurate Analysis of ECG

Heart Guardian offers ECG (Electrocardiography) analysis in just 8.5 seconds

ECG analysis function provides detection of irregular cardiac waves with 97.8% accuracy and immediately commences electric charging upon detection.

Embedded shock timing table based on patients' impedance levels, enables the most accurate charging time and shock timing analysis.

Technical specification   HR501
Automatic/Manual Self-diagnosis
Precise Impedance Analysis
Audio-guidance
Adults/Kids Compatible
Compact size
ECG analysis: 8.5 sec
Charging: 8 sec
Shock output: 150 J (Adults), 50 J (kids)
Data storage: 40 min (embedded memory)
Data transfer protocol: Bluetooth 2.0

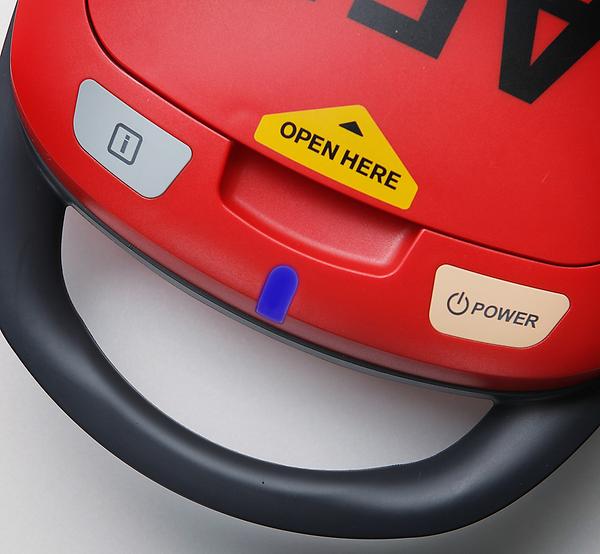

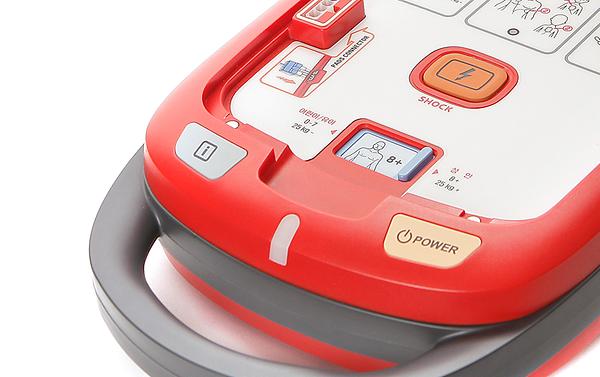

Control Buttons: Power, Analysis, Shock
Battery type: Li-Mn (12V DC 4.2A)/by using any kind of Common  battery types
Shock Frequency
Minimum 200 times (*standby)
BiMos High Voltage Switching Circuit BiMos High-Voltage Switching circuit technoly enables the high sudden voltage (above 2,000V) generation with 8 seconds   Pad Type
Electrode pad, disposable and dhesive
Dimension: 230(W) х 320(L) х 85(H) mm
Weight
1.9 kg

 Warranty

  5 years (2 years for pads/4years for batteries)

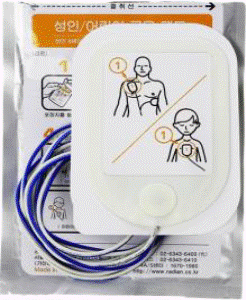

          P-303 Standard type (HR-501 Life Mode)

   l Adult/Child compatible, 1 pair

   l Size: 145(H) x 98(W) x 1(T)mm

            l  Polyolefin foam  Adhesive:  180-129A

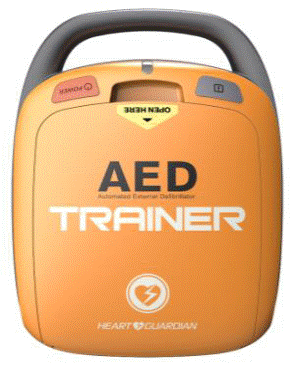

P-301T for Training (HR-501T)

l Αdult/Child compatible, 1 pair

l Size: 145(H) х 98(W) х 1(Т)mm

l Polyolefin foam

l Maximum use count: 1~2000













TRAINING FOR HOW TO USE

    We offer the following Free Of Charge training to your good company.

 Radianqbio Sales Training for your Sales Executives at your premises.

 Radianqbio how to use Training at your premises.



MAINTENANCE

    Radianqbio AED has a periodical maintenance policy which is standard for all countries and

    markets. The standard maintenance reduces the responsibility of your Company or the Radianqbio Owner to follow the replacement dates of spare parts and service due dates. The replacement of the battery and electrodes are synchronized to one (1) periodical maintenance package which our company follows up. Also, functional tests are performed with special simulators. Our policy also ensures that the electrodes are always «pre-connected» when Radianqbio is delivered following a service.



The time and place of a sudden cardiac arrest case is unpredictable. For this reason, Radianqbio is

aimed to be “always ready to use, ready to save”.



PERIODICAL MAINTENANCE



It is performed every 24 months after date of purchase. Within 3 months prior periodical

maintenance, the owner will be contacted accordingly for timely arrangements. After each

maintenance, extends Radianqbio AED Guarantee for 2 more years.

During maintenance, a Certified Technician at India performs the following:



 Replacement of the main battery.

 Replacement of the electrodes.

 Measurement of the  Radianqbio AED with specially developed diagnostic measuring

equipment. This involves, among other things, the provision of the power of electric

shocks simulating cardiac arrest.



 Checking of the software. If necessary, the software is updated in accordance with the

most recent AHA (American Heart Association) protocol guidelines.



Checking for damage and irregularities.

After checking, the Radianqbio AED is equipped with a Radianqbio AED service label sticker and

Guarantee is extended for 2 more years. One copy of the test report will be stored with the

Radianqbio AED delivered, one copy will keep for our records and one will be send to your good

company.
