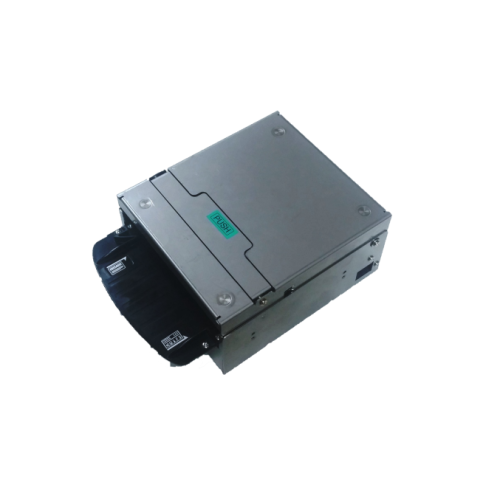

Combined ID and Check Scanner WIS-2000
Request For Quotation
Combined ID and Check Scanner for KIOSK
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
FEATURES
WIS-2000 is a Cheque/Card scanner with high speed scanning at 350mm/sec.
It provides a reliable MICR reading rate based on a patented jitter-free mechanism.
Ethernet and Serial interfaces are optional.
SPECIFICATIONS
| Item | Specification |
| Document | |
| Height | 54~106mm |
| Length | 80~235mm |
| Weight | 60~120g/m2 |
| Scanner | |
| Scanning Side | Duplex |
| Sensor | Color CIS |
| Scan Width | 104mm |
| Resolution | 200/300dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| Image Formats | TIFF G4, JPEG, BMP |
| Feed speed | 350mm/sec |
| Card Scanning | |
| Media | Credit card size non-embossed card |
| Barcode | PDF417 Decode (option) |
| MICR Reader | |
| Recognize Codes | E13B/CMC7 |
| Read Head | Magnetic head with permanent magnet excitation |
| Interface | |
| USB | USB 2.0 HS |
| Ethernet | 100Base-TX/10Base-T |
| Physical Dimensions | |
| Size | 160mm(W) x226mm(D) x84mm(H) |
| Weight | 2.1kg |
| Power | |
| Adapter Input | DC 24V / 2A |
| Environment | |
| Operating Temperature | 10~40°C |
| Operating Humidity | 10~85%, Non condensing |
