Multipurpose NFC Reader ITOUCH20A
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 8days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description

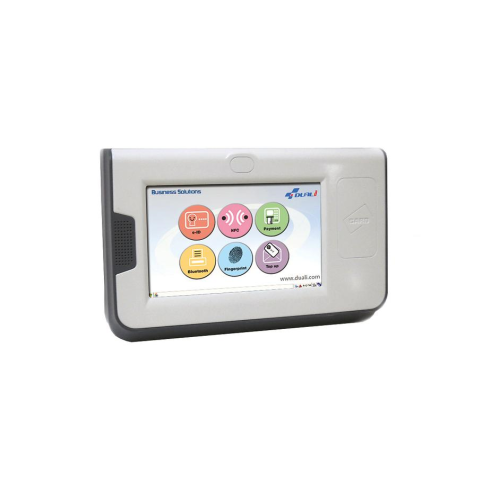

ITOUCH20A is Android based standalone terminal
With its wide touch screen 7" & NFC feature, it can be suitable for
- e-PAYMENT SYSTEM (Hospital, Enterprise)
- On-site Visitor managemnent system ( Festival)
| CPU | Cortex-A7 (720MHz, Up to 1GHz) |
| Program Memory / Data Memory | 4GBytes Nand Flash / 1GBytes DDR3 |
| Operating System | Android 4.2 (Jellybean) Linux 3.4 later |
| Host Interface | USB (Host4, OTG Slave1), LAN(10/100M Ethernet) Wiegand(D0.D1), RS-232 *2CH, RS-485* 2CH, Micro SD slot WIFI, GRPS (Option) |
| Contactless Communication | ISO 14443 A/B, ISO 18092 (NFC), Mifare, DESFire, FeliCa |
| Contact Communication | 2 SAM slot (ISO 7816, T=0, T=1) |
| Sound | Multi-Channel CODEC with S/DPIF transceiver |
| LCD | 4.3” TFT wide (800X480 RGB) touch screen (Resistive) |
| Door Control I/F | Door status check sensor, Open Switch Relay(NO,NC,COM), Secure Lock(RS485), Output(for PDU) |
| Input Power | DC9~24V (12V recommended) POE |
| Dimension | 250 * 163 * 40mm |
| Operating Temperature | -10 ~ 60 °C |
