1. Introduction

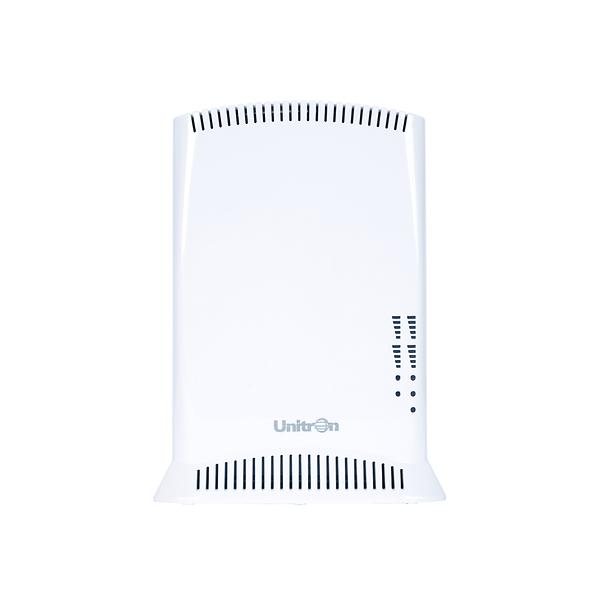

Using high speed DSP technologies, 3G & LTE Dual Band Pico ICS Repeater automatically clears feedback signals from the service antenna. The repeater enhances the 3G & LTE coverage throughout offices, stores and houses with its small size and built-in antennas. The repeater can be placed next to the window or other places of your convenience to receive signals from outside and create new coverage in the building. Just plug in the DC jack and rotate the repeater to the direction RSSI indicator shows for the best performance. No technician or test equipment required.

2. Performance & Key Features

•  Built-In Both Donor & Service Antennas

•  Supports Both 3G & LTE Simultaneously in 1800 & 2100MHz Frequency Band

•  DL : 10dBm, UL : 10dBm Output

•  Cancellation Range G=I+10dB

•  LED Bars Show Input Signal Strength and Isolation

•  User Installable ; Auto Gain Control , Auto Shut Down, Auto Isolation Check & Gain Setup

•  Auto Detection & Changeover for the External Donor Antenna

•  Optional External Antenna & 10m 3D-FB Coaxial Cable

•  External AC/DC Adaptor

3. Application

1) Small Office Home Office

2) House

4. Kit

1) Repeater

2) AC/DC adapter
