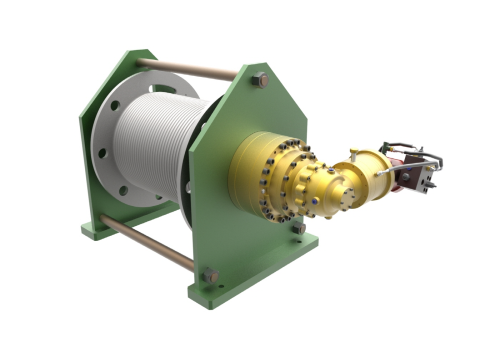

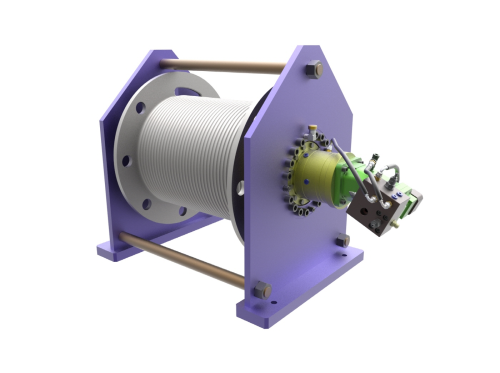

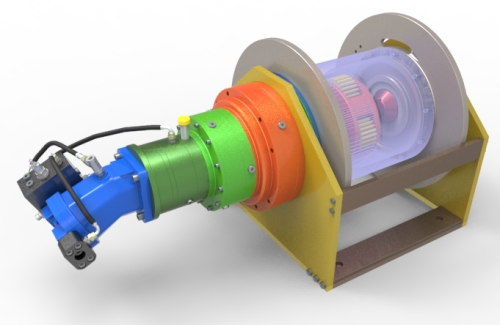

Winch YoohanENS Hydraulic Winch Horizontal Drive Right Angle Hoisting

Request For Quotation

The reduction gear ratio in the two-speed system. Make to order according to customers` needs

Certification

Award

Shipping

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Detailed Description

1. Specification

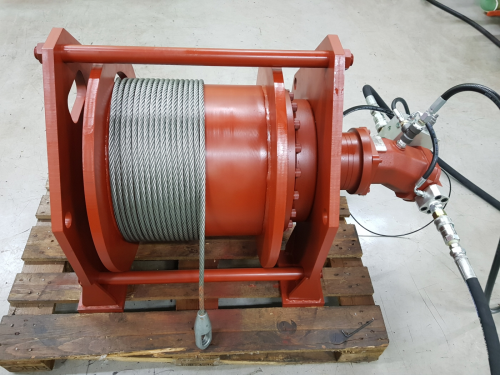

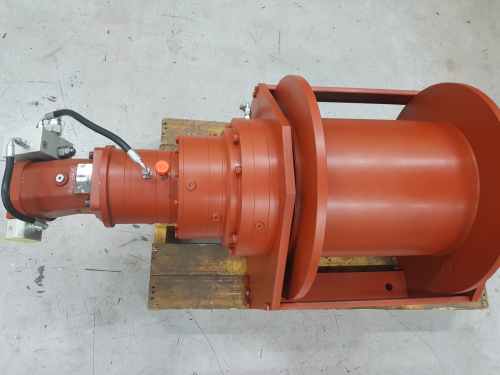

	Hydraulic Horizontal Winch	Hydraulic Drive Winch	Hydraulic Right-Angle Winch	Hydraulic HoistingWinch
Stages	1,2,3,	2,3	2,3	2,3
Ratio	1/3 ~ 1/350	1/20 ~ 1/140	1/20 ~ 1/140	1/20 ~ 1/140
Capacity[ton]	2~20	2~20	2~20	2~10
Drum diameter[mm]	Φ210 ~ Φ700	Φ210 ~ Φ700	Φ210 ~ Φ700	Φ210 ~ Φ450
Drum width[mm]	300 ~ 1,000	300 ~ 1,000	300 ~ 1,000	300 ~ 700
Hydraulic Motor	Spec is according to customer's requirements
Working pressure [bar]	200 ~ 250	200 ~ 250	200 ~ 250	200 ~ 250
Output speed [rpm]	20 ~ 40	20 ~ 40	20 ~ 40	20 ~ 40
Hydraulic Braking torque [N.m]	350 ~ 900	350 ~ 900	350 ~ 900	200 ~ 500
Hydraulic Brake releasing pressure [bar]	15 ~ 35	15 ~ 35	15 ~ 35	15 ~ 35
Hydraulic Brake max pressure [bar]	315	315	315	315

2. Features

- Freefall capability, which is an emergency safety device.

- Two-speed automatic transmission system.

- Make to order according to required specifications.

- Supply Brake Valve Block.

3. Application

- Mooring arrangements

- Cargo gear arrangement for marine shipbuilding.

- Construction equipment

- Distribution industry

4. Company Information

YoohanENS Co., Ltd. manufactures Planetary Reducer, Winch, Hydraulic component in the mechanical industry.

We focus on research- development to provide a differentiated service based on accumulated technology and know-how

YHENS R&D tries to improve professional competence for high efficiency and especially guaranteed durability.

1) Planetary gear reducer for shipbuilding, construction equipment, and wind power generation

2) Hydraulic Winch and Manual Hand Winch

3) Hydraulic piston motor & pump for shipbuilding, construction equipment, and industrial machines

4) Provide engineering solutions (Product 3D design & solution & optimized design)
