Slewing YoohanENS Slewing Hoist Planetary Gear Reducer Gearbox
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 60days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
1. Specification
|
| Slewing&Hoist Reducer | Slewing&Hoist Reducer | Slewing&Hoist Reducer |
|---|---|---|---|
| Torque(dyn) [N.m] | 16,000 | 24,000 | 36,000 |
| Torque(max) [N.m] | 26,000 | 37,000 | 63,600 |
| Stages | 2,3,4 | 2,3,4 | 2,3,4 |
| Ratio | 1/12 ~ 1/1,200 | 1/12 ~ 1/1,200 | 1/12 ~ 1/1,200 |
| Hydraulic Motor | Spec is according to the requirement of an order | ||
| Weight without motor(approx.) [kg] | ab. 190 | ab. 290 | ab. 470 |
| Output speed [rpm] | 5 ~ 20 | 5 ~ 20 | 5 ~ 20 |
| Hydraulic Braking torque [N.m] | 350 ~ 900 | 350 ~ 900 | 350 ~ 900 |
| Hydraulic Brake releasing pressure [bar] | 15 ~ 35 | 15 ~ 35 | 15 ~ 35 |
| Hydraulic Brake max pressure [bar] | 315 | 315 | 315 |
2. Features
- Hydraulic brake: reverse rotation prevention system.
- The high reduction gear ratio in miniaturization & weight-lightening.
- Especially guaranteed durability on impact & vibration.
- Oil brake system: Lining type, Disc type
- Make to order according to required specifications.
- Two-speed automatic transmission system.
3. Application
| Shipbuilding & Marine equipment | Construction equipment |
| - Slewing reducer
- Hoist reducer
- Reducer of winch | - Drum reducer module of mixer truck
- Drive reducer module of the wheel hub
- Drive reducer module of driving |
4. Company Information
YoohanENS Co., Ltd. manufactures Planetary Reducer, Winch, Hydraulic component in the mechanical industry.
we are concentrated on research- development to provide a differentiated service based on accumulated technology and know-how.
YH ENS R&D tries to improve professional competence for high efficiency and especially guaranteed durability.
1) Planetary gear reducer for shipbuilding, construction equipment, and wind power generation.
2) Hydraulic Winch and Manual Hand Winch.
3) Hydraulic piston motor & pump for shipbuilding, construction equipment, and industrial machines.
4) Provide engineering solutions. (Product 3D design & solution & optimized design)

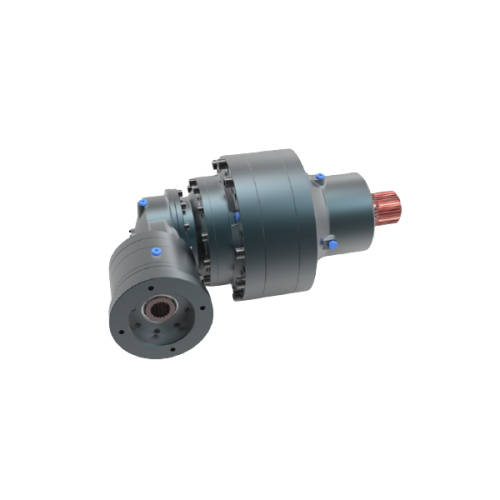

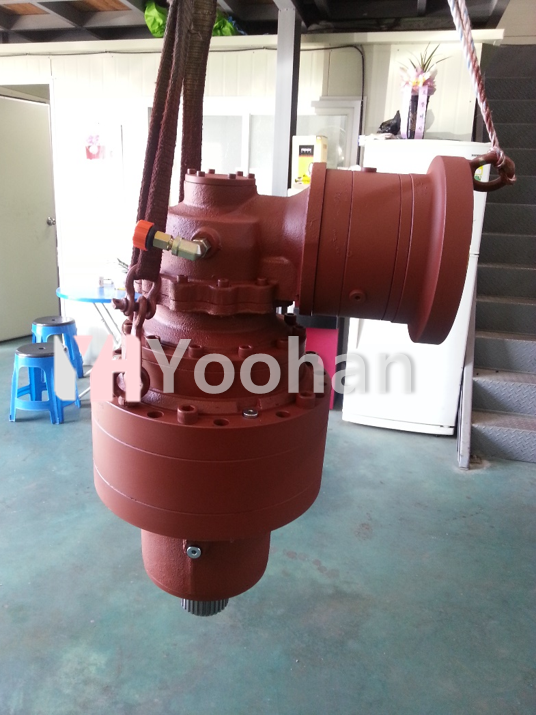

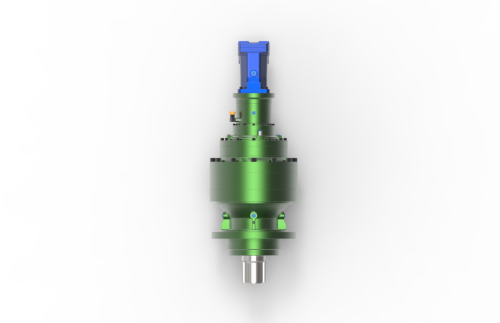

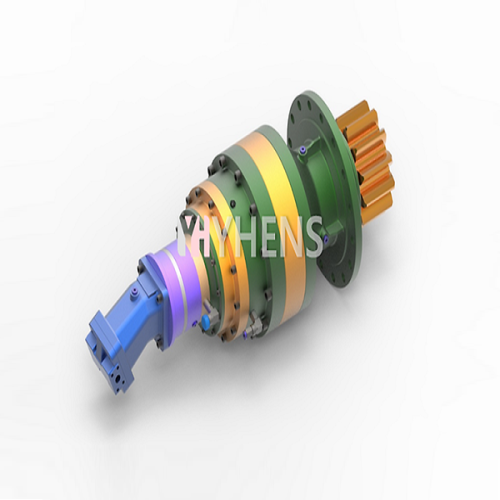

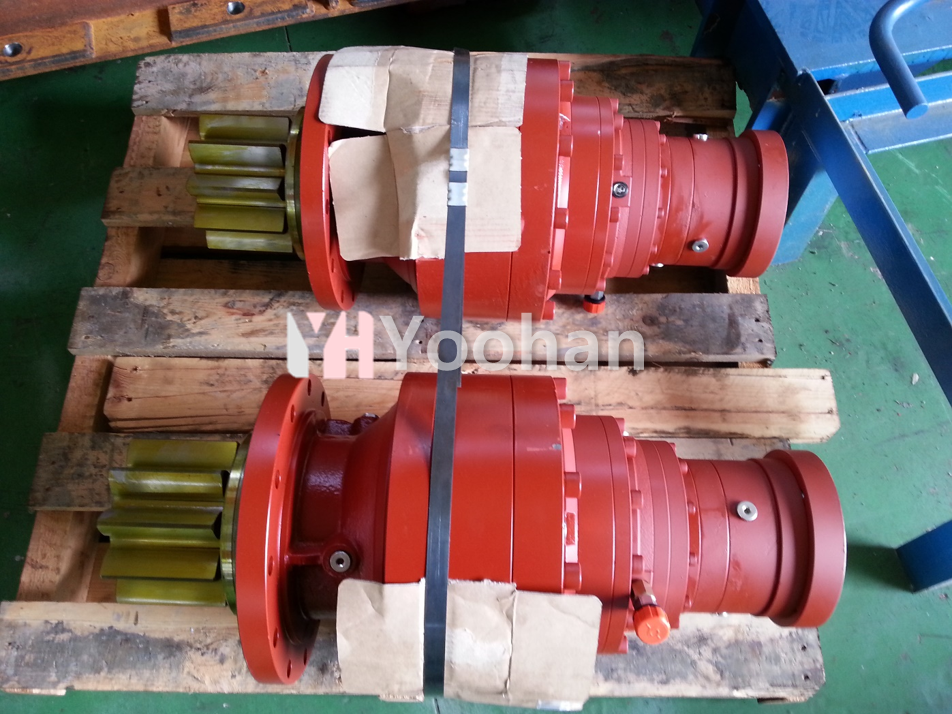

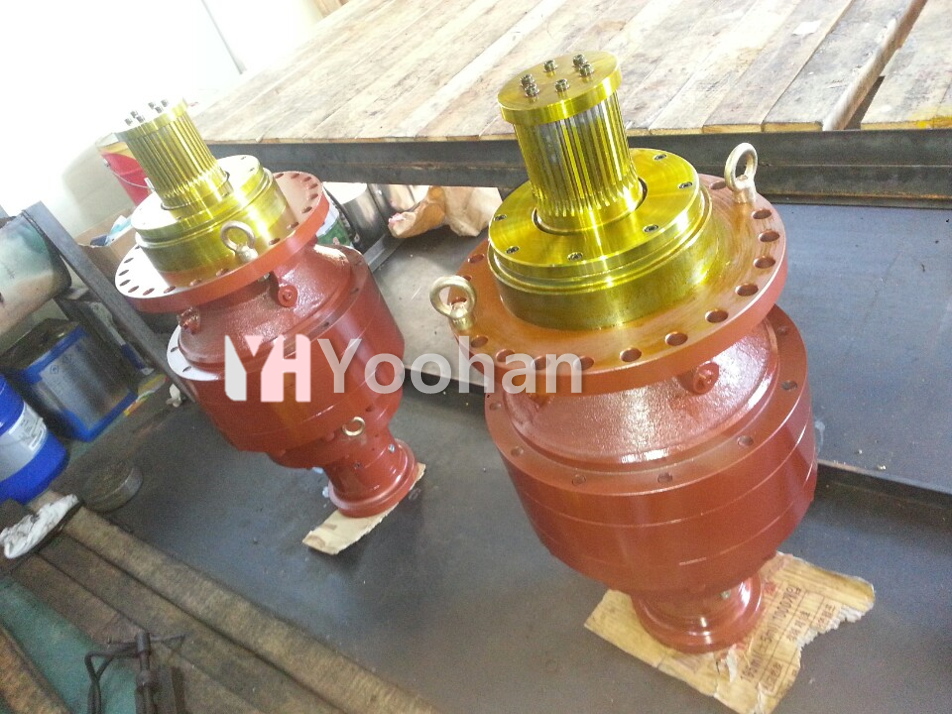

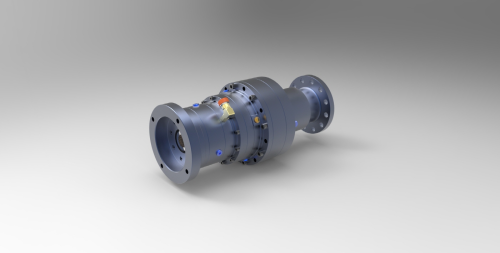

5. Photos
※ Please send an inquiry via e-mail or website to get a reply quickly
