Overview

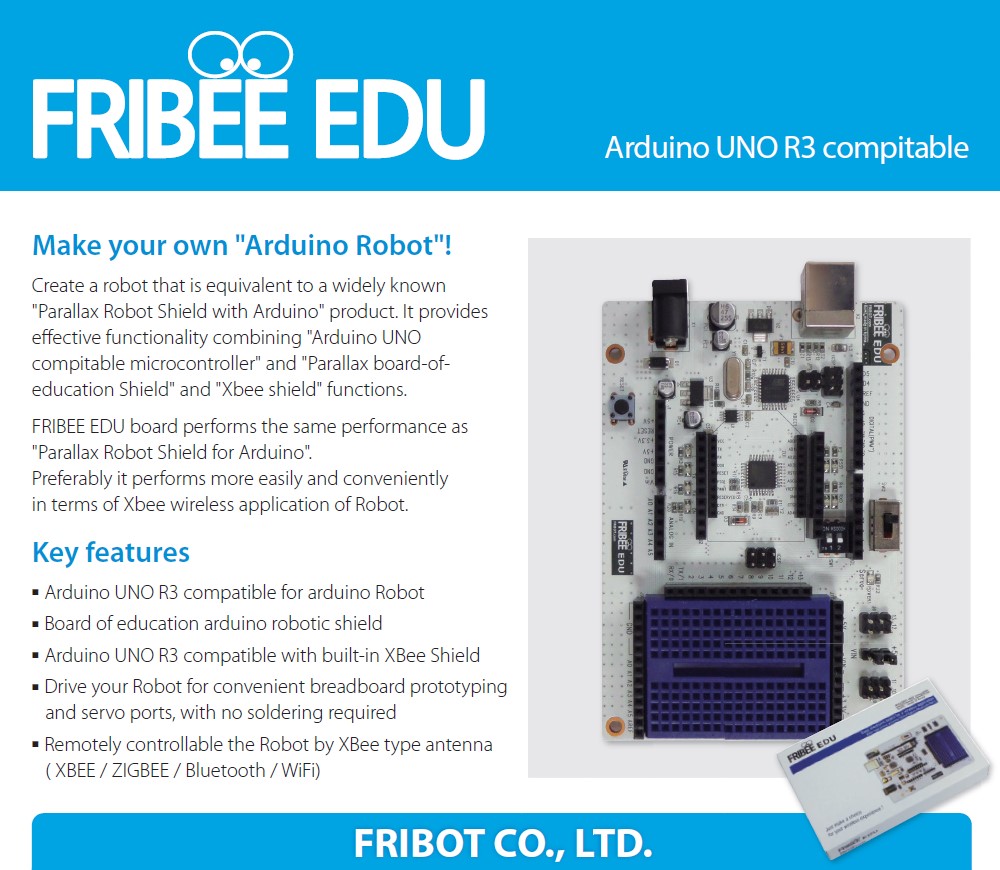

Make your own "Arduino Robot"!

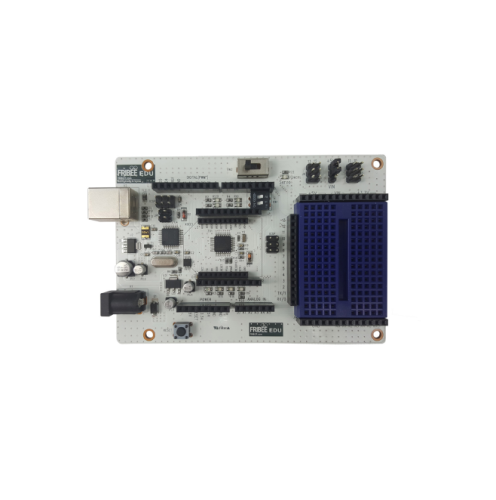

Create a robot that is equivalent to a widely known "Parallax Robot Shield with Arduino" product. Our FRIBEE EDU board provides effective functionality combining "Arduino UNO compatible microcontroller" and "Parallax board-of-education Shield" and "Xbee shield" functions.
So FRIBEE EDU board performs the same functions as "Parallax Robot Shield for Arduino".
Preferably it performs more easily and conveniently in terms of Xbee wireless application of Robot.

Drive your Robot for convenient breadboard prototyping and servo ports, with no soldering required.

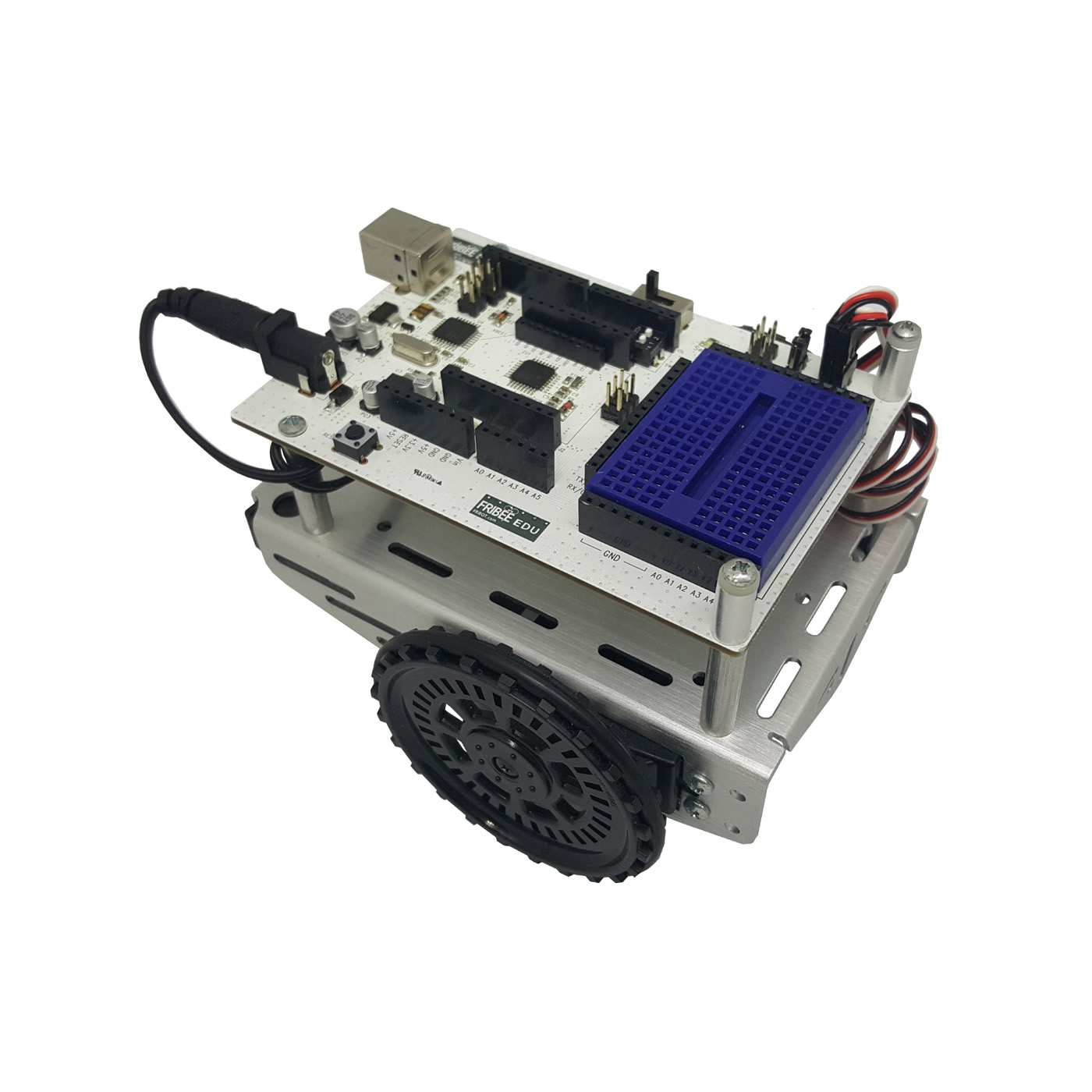

Also remotely control the Robot by adding XBee pin type antenna. (XBEE / ZIGBEE / Bluetooth / WiFi antenna) The FRIBEE EDU board has been successfully utilized as the Arduino neo-RobotCar v2 model's main board in Korean educational sites for more than five years.

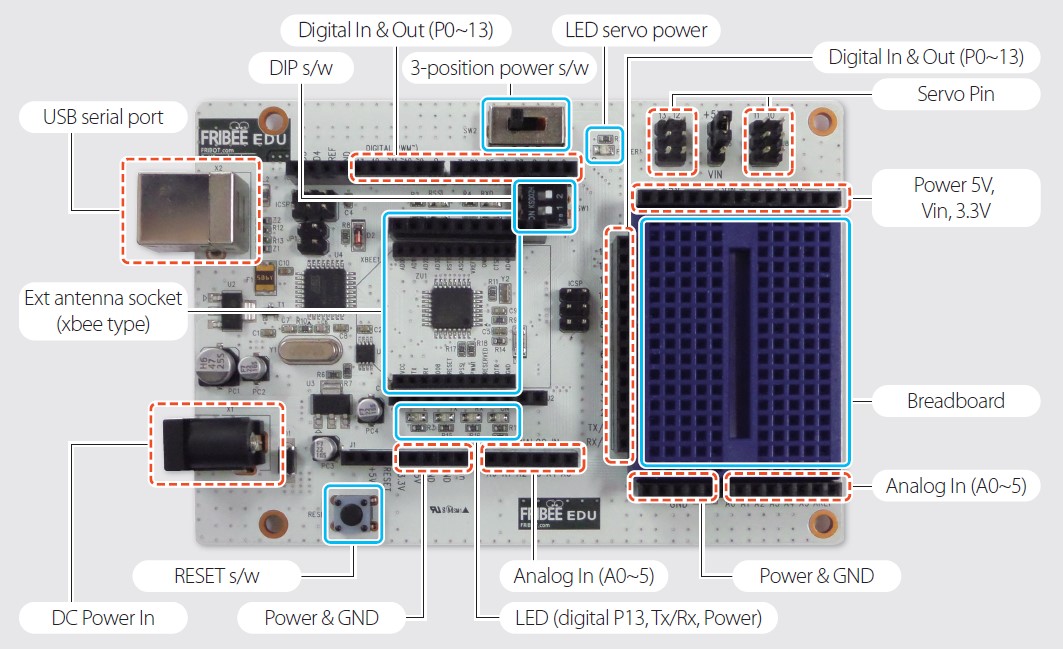

Features
- 17-row x 2 column breadboard for convenient circuit-building
- Headers for power (Vin, 5 V, 3.3 V) Ground, Digital I/O and Analog In are brought adjacent to the

   breadboard
- Onboard 5 V regulator supplies up to 1 A
- Onboard 3.3 V regulator supplies up to 200 mA
- 4 servo ports with power selection jumper for regulated 5 V or Vin
- 3-position power switch for power header only or power header + servo ports
- Board reset button
- Supply indicator LEDs for breadboard and servo power

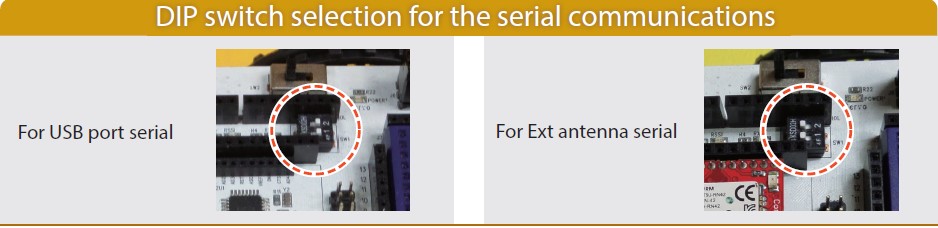

- Tx/Rx Dip switch to select USB serial and XBEE serial communication
   --> Dip switch Application: Refer to the image below.

Specifications
ㆍMicrocontroller ATmega328P
ㆍOperating Voltage 5V
ㆍInput Voltage (recommended) 7-12V
ㆍInput Voltage (limits) 6-20V
ㆍDigital I/O Pins 14 (of which 6 provide PWM output)
ㆍAnalog Input Pins 6
ㆍDC Current per I/O Pin 40 mA
ㆍDC Current for 3.3V Pin 50 mA
ㆍFlash Memory 32 KB of which 0.5 KB used by bootloader
ㆍSRAM 2 KB
ㆍEEPROM 1KB
ㆍClock Speed 16 MHz
ㆍXBee Socket (802.15.4) & pin header
ㆍDIP s/w for the selection between USB serial and XBEE serial communication.
