Overview

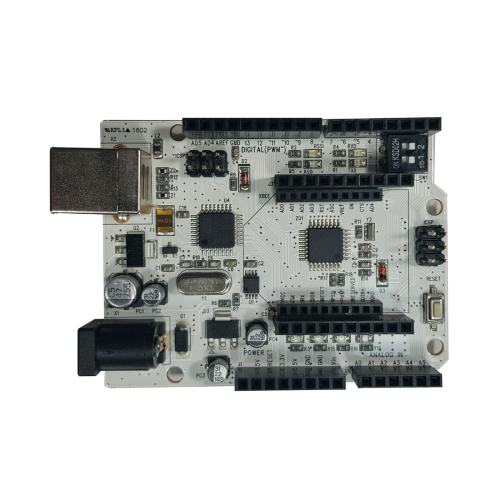

FRIBEE white is an Arduino UN R3 compatible product, and a microcontroller board based on the ATmega328P. Also, It contains an additional XBee socket function compared to Arduino UNO R3.

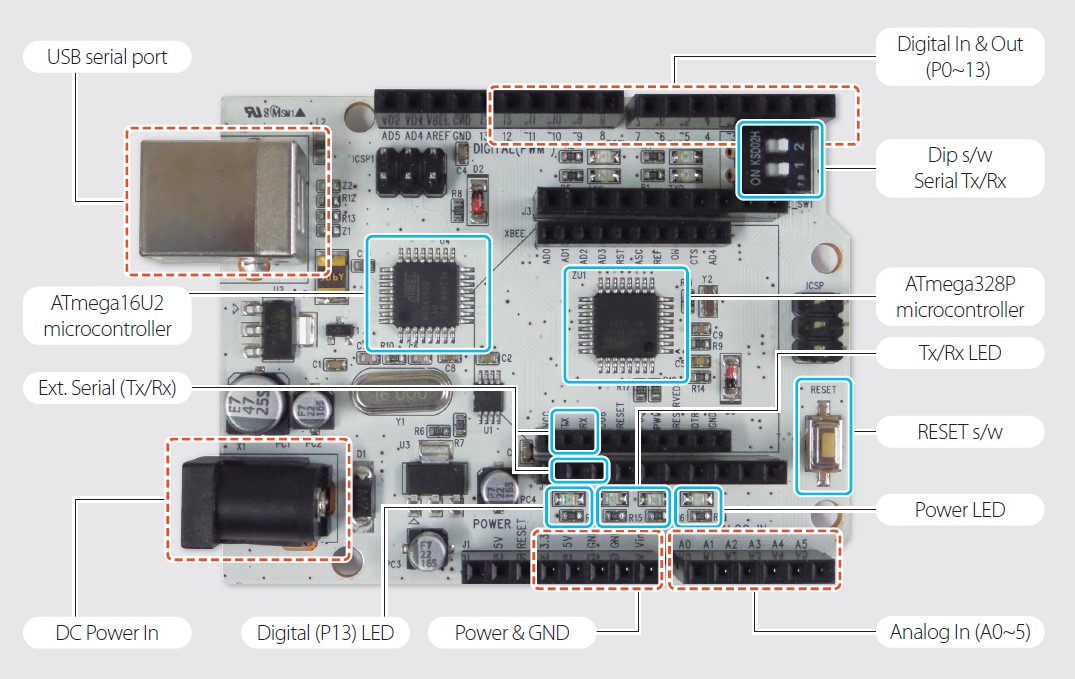

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. It uses the ATmega16U2 as a USB-to-Serial converter.

The built-in XBee socket on the board helps to facilitate many kinds of wireless expansion. For example, with an 802.15.4 XBee pin type antenna, you can communicate by Bluetooth, WiFi, Zigbee or Xbee.

Specifications
ㆍMicrocontroller ARmega328P
ㆍOperating Voltage 5V
ㆍInput Voltage (recommended) 7-12V
ㆍInput Voltage (limits) 6-20V
ㆍDigital I/O Pins 14 (of which 6 provide PWM output)
ㆍAnalog Input Pins 6
ㆍDC Current per I/O Pin 40 mA
ㆍDC Current for 3.3V Pin 50 mA
ㆍFlash Memory 32 KB of which 0.5 KB used by bootloader
ㆍSRAM 2 KB
ㆍEEPROM 1KB
ㆍClock Speed 16 MHz
ㆍXBee Socket (802.15.4) & pin header

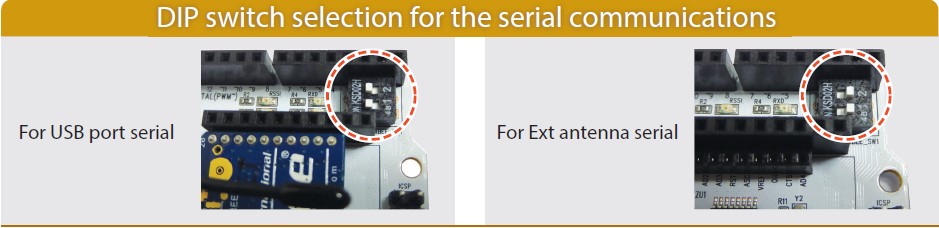

ㆍDIP s/w for the selection between USB serial and XBEE serial communication.

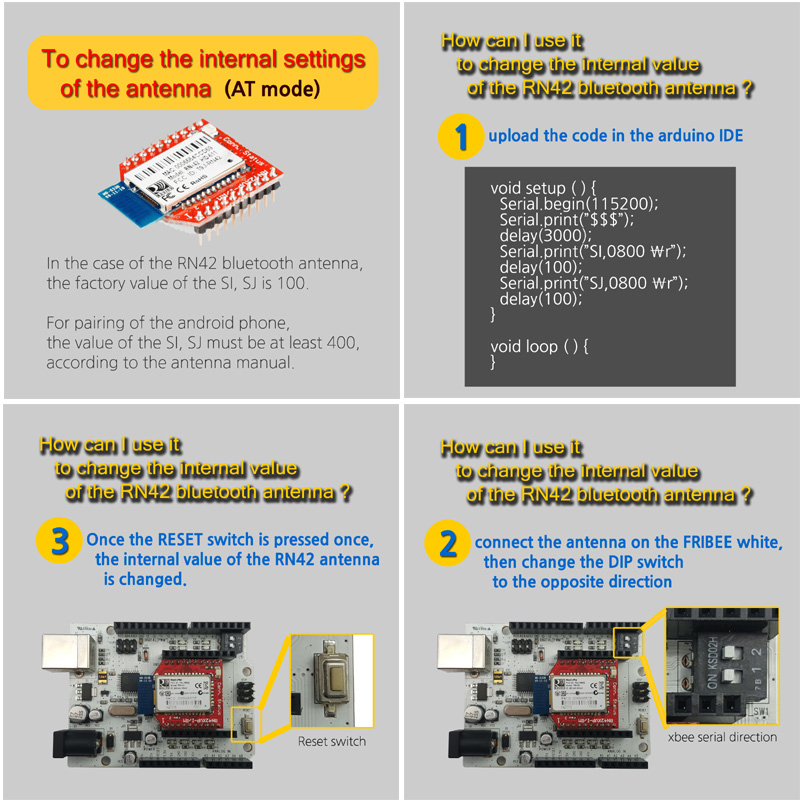

   --> Dip switch Application : Refer to the image below.
