[ Specification ]

PX-300/600R (Directional Long Range Acoustic Device) for traffic control

This product is being supplied to Korea Expressway Corporation and it is used in high traffic areas and areas prone to frequent accidents to ensure safe driving broadcasting and for secondary accident prevention purpose.

In addition, it is installed in the work vehicle and it is used together with the direction indicator to warn oncoming vehicles during the accident repair work to significantly reduce the accident rate of secondary collisions.

A driver of a car traveling at 100 Km / h on the expressway should be able to listen to the broadcast emitted from the transmitter with sufficient intelligibility from the 100 m point.

In order to meet the above requirement, a sound wave transmitter has been constructed in a horn structure with directivity function.

This is called a Directional Long Range Acoustic Device.

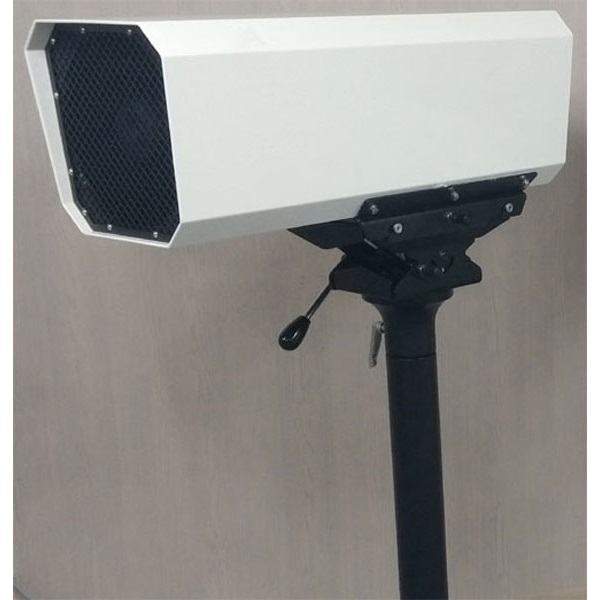

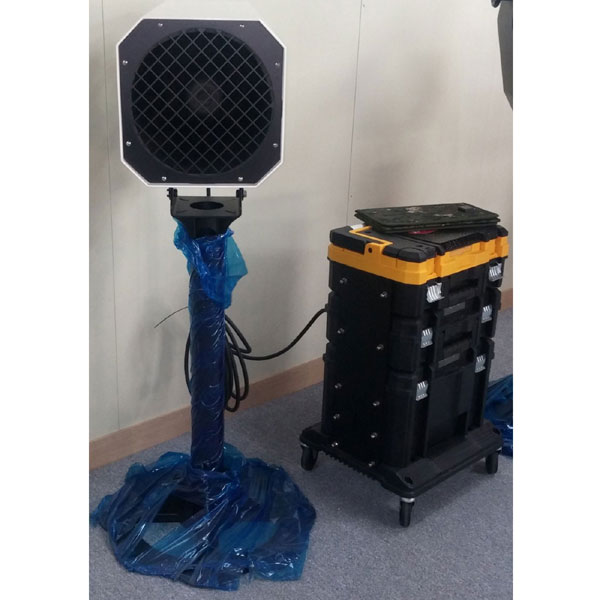

PX-300R

Maximum Continuous Output(SPL) : 132 dB / 1m (A-weighted)

Beam width : ±15°at 4 kHz/-3 dB

Frequency Response : 250 Hz ~ 4 kHz, optimized for human voice

Dimensions : 315 x 315 x 753 mm

Weight : 22 Kg with amp and speaker

Construction : Aluminum Body and Steel

PX-600R

Maximum Continuous Output(SPL) : 135 dB / 1m (A-weighted)

Beam width : ±15°at 4 kHz/-3 dB

Dimensions : 315 x 315 x 753 mm

Weight : 25 Kg with amp and speaker

Construction : Aluminum Body and Steel

Features

◎ Clear Communication at up to 1Km

◎ 132/135dB at 1 Meter Maximum Continuous output

◎ Reduces the Risk of Exposing Nearby Personnel to Excessive Audio Levels

◎ Avoid Distortion From Reflected Sounds

◎ Handheld or Self Standing

◎ Waterproof

Others
Difference between PX-300S and 600S is 300W compression driver unit installed in PX-300S to increase the sound pressure level by 3db.

This is double the power from the same size.


[ Company introduction ]

Established in 2009, PMTC is a professional sound company that exports long-range sound wave transmitters ranging from general speakers to loudspeakers.

Directional sound wave transmitters are supplied to road construction for traffic control.

By promoting our case studies of use to overseas markets, we are now seeing positive results in the Southeast Asian market.

In addition, we have launched various traffic control devices including traffic signs, automatic laser speedometers, lift search lights used in tunnel construction, and smart warning lights for traffic patrol cars, as well as directional sound wave transmitters, which is our flagship product.

As a professional traffic control company, we are actively promoting our products to overseas markets.
