1. Purpose : Mini electric car Decelerator

2. Use : Manufacturers who are developing electric cars, companies considering development, and companies wishing to upgrade existing reducers

3. Function : The reducer in the car is a mechanical device that switches to the low output speed of the torque, which has a high fast input rate that the reducer receives. With this reducer, the proper size driving force is finally delivered to the wheels, which forces the car to roll the road. The deceleration ratio is the factor that determines the large and small driving force that is passed to the wheel. Therefore, it is essential to have a precise quality reducer as well as motors and transmissions to achieve optimal driving force.

The Reducer DTA series of drive Tek is a product of outstanding versatility that can be applied to a small electric vehicle that is currently being marketed or a new type of electric car under development. Based on the trends in the electric car market, which seeks high efficiency and eco-friendly products, the product realizes a 20% reduction in miniaturization compared to its equivalent reducer. Its decelerator is a consistent, reliable performance and proven durability advantage in any environment.

4. Remark : Drive Tec is a supplier of domestic technology to develop products, produce technical improvements and supply customers with competitive prices. It is possible to develop and deliver the reducer corresponding to the large and small output of various electric vehicles at home and abroad in consultation with the customer. It is also possible to collaborate with the motor currently under development.

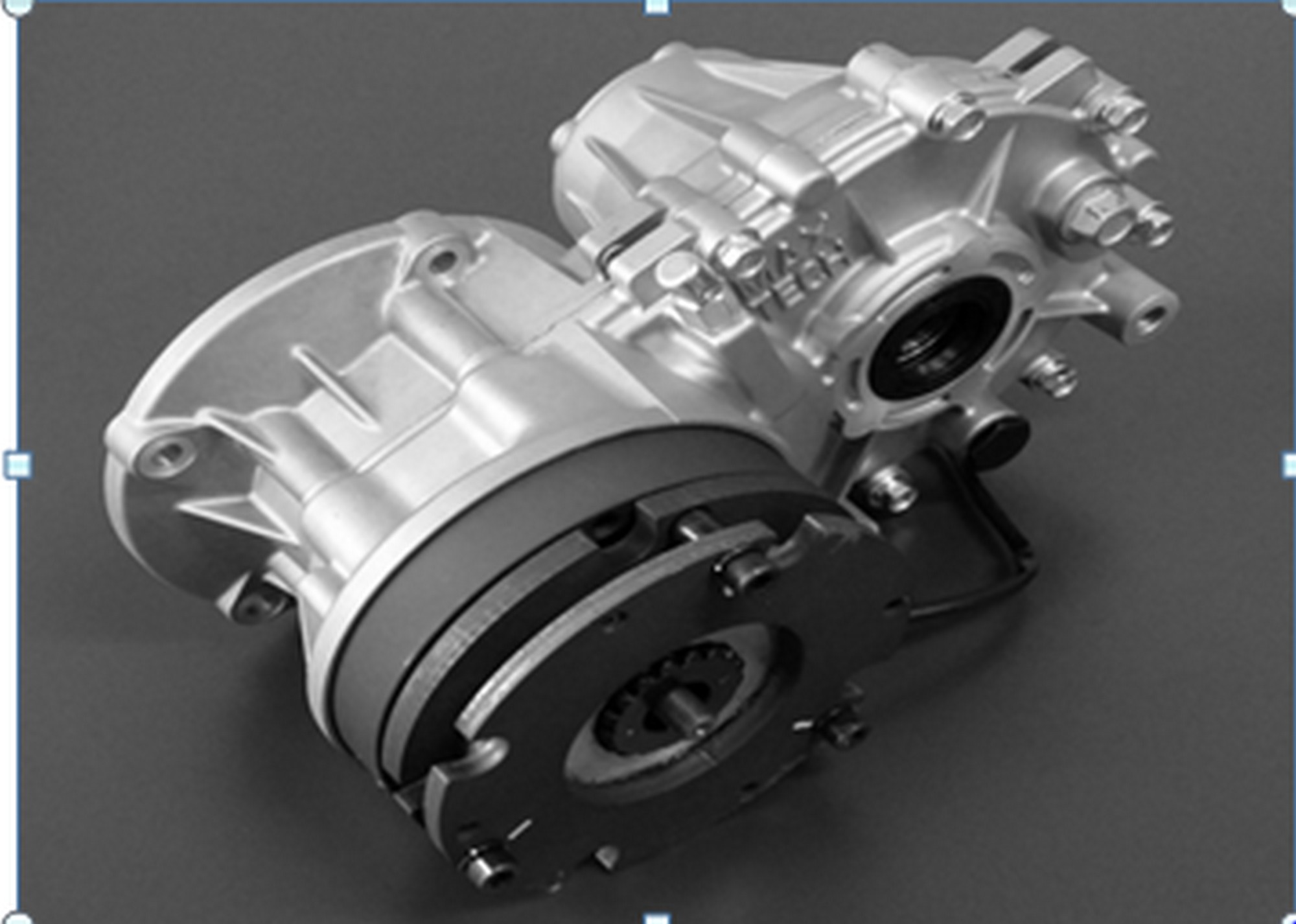

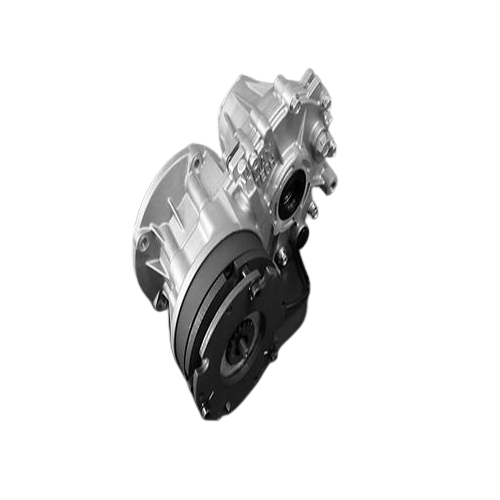

Reduction Gear Box for E-Mobility
 -Light weight & smailler volume
 -More economical electirc consumption
 -Smaller battery & Motor capacity
 -More high driving performace


Model Number : DTA-1S060
Max Torque : 60 Nm
Size : 154mm (Center distance)
Weight : 9.5 (Kg)
Option : X2_EPB
Manufacturing Country : South Korea
Payment terms : T/T, L/C, KOPS
Delivery terms : For South korea (negotiable)

Model Number : DTA-1S060

Max Torque : 60 Nm

Size : 154mm (Center distance)

Weight : 9.5 (Kg)

Option : X2_EPB

Manufacturing Country : South Korea

Payment terms : T/T, L/C, KOPS

Delivery terms : For South korea (negotiable)
