■ Principle: Streaming potential analysis and titration.

■ Optimal coagulant/polymer dosage analysis and chemical pump control.
■ Integrated dosing system with high accuracy.
■ Regular backwashing of the screen. Immediate cleaning of cell & sampling line after measurement.
■ Outputs for coagulant dosing rate & self-diagnostic alarm : RS485, & 4~20mA
■ The operator can monitor CAST operation status at the control room using provided protocol. (Option)
■ Automatic sampling and rinsing system.
■ Automatic cleaning system for measuring cell, piston, and sample line.

    ; User-adjustable cleaning time and cycle.
■ User-selectable titration parameter setup.

■ CAST Online Operation Program

  • Real-time Control and Data Monitoring
  • Yearly, Monthly, Daily Data Storage
  • The user can load the data file in Excel.
  • Operation Status Display
  • Error and Troubleshooting Display.
  • Communication to DCS: RTU RS485 and 4-20mA for chemical dosing control (Option)
  • Output for alarm: RTU RS485 or 4-20mA
     Range: RTU RS485 or 4~12mA(Yellow Alarm) & 12~20mA(Red Alarm)
■ Self-Diagnostic System
- Alarm and Warning for sample supply shortage, low water pressure, low air pressure, titrant shortage, cleaning solution shortage, coagulant demand upper/lower limit, no memory, regular cleaning time, and measuring cell condition.

■ Polymer dosage determination in the sludge dewatering process
■ Polymer dosage is proportional to colloidal charges in sludge
■ Automatic polymer dosage control depending on the sludge charge characterization

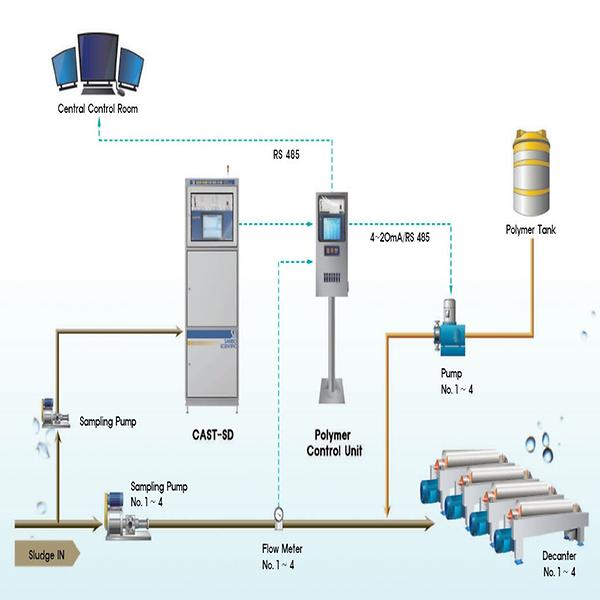

■ Online control of polymer dosage up to 4 dewatering machines using a single CAST
■ Auto-cleaning after each measurement
■ Very low maintenance
■ Very efficient for target moisture content control of sludge cake
■ Applications: Water treatment process, T-P removal process, sludge dewatering process, and membrane pretreatment process
