- PID
- 3091001
PVC, Clean Fume Hood, Cleanroom for semiconductor, Square, White
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1
Detailed Description

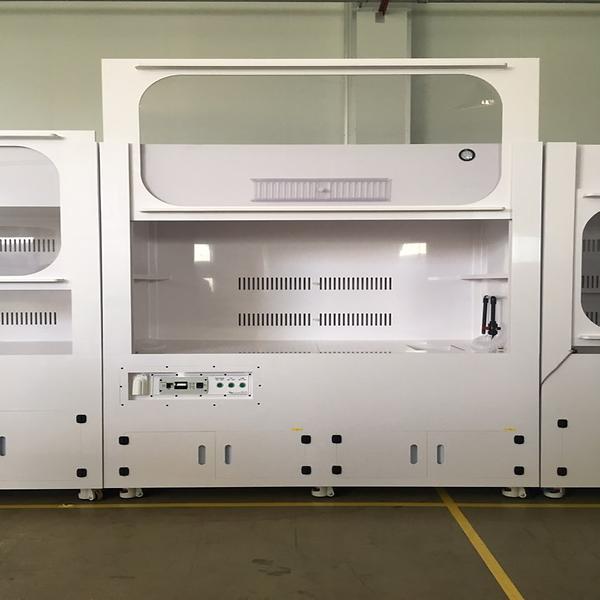

Chemical Fume Hood
For your safety in the laboratory to prevent contamination of the internal structure is treated as a forced exhaust type material to prevent corrosion from the chemical resistance, corrosion-resistant material with excellent. (PVC, PP, PTFE, SUS304) Positioning of the front door to facilitate the smooth operation Balance Weight Type using a transparent material and is easy to check the internal.
Most important clean environment
- Minimization of secondary contamination caused from corrosion or accumulation of contaminants.
- Dimension: 1800(W), 750(D), 2300(H) Metal free clean space
- Function: Air particle filtering, Fine air flow control, Top to down air flow, Separated exhaust ventilation, Flow(Front, Work space and rear)
- Material: White PVC, HT PVC, GV PVC, Clear PVC, PP, PTFE
- Option: Cleaning Bath (PTFE, Quartz, PVC), Goose Neck, DI water and N2 sun (internal Wet station)

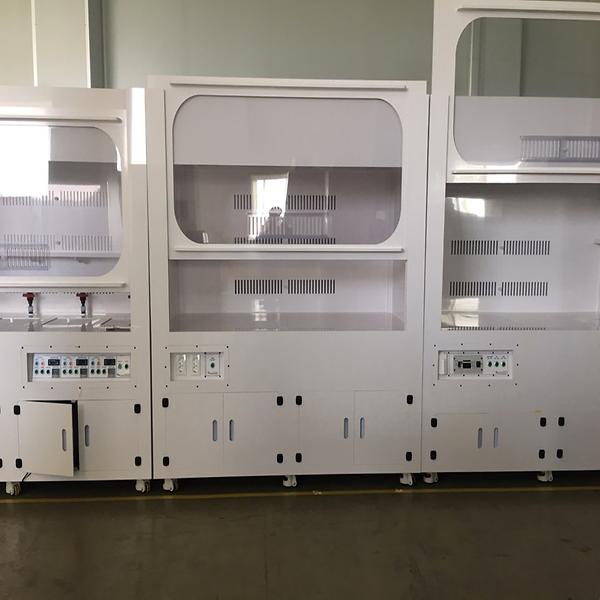

Pretreatment Fume Hood
Harmful gases arising from the laboratory to quickly be forced exhaust, SAFETY ZONE in the laboratory to form a complete, using the exhaust system of air by adopting balanced manufactured.
Specifications:
|
Dimension (mm) |
W H D |
1200 800 2200 |
1500 800 2200 |
1800 800 2200 |
2400 800 2200 |
|
Air Volume (CMM) |
|
9 ~ 18 |
12 ~ 23 |
14 ~ 29 |
20 ~ 39 |
|
Face Velocity (m/sec) |
MIN : 0.25 ~ MAX : 0.5m/sec |
||||
Production Specification
- Material: PVC, P.P, PVDF, PE, SUS
- Size: Order production/ Resizable ordering

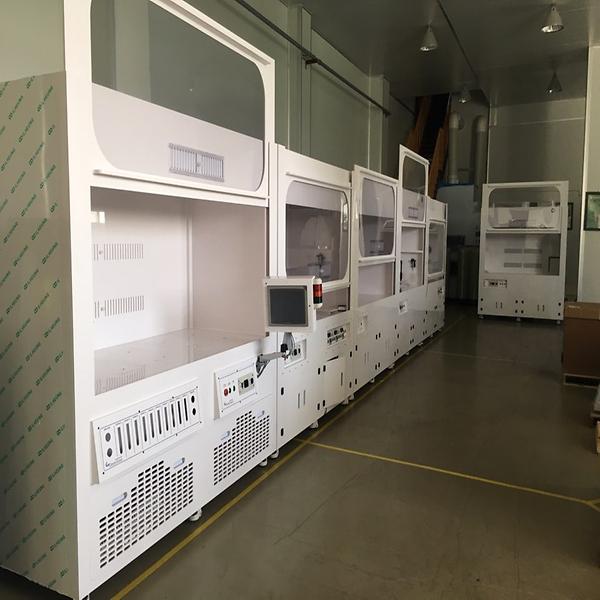

Clean Fume Hood
Harmful gases arising from the laboratory to quickly be forced exhaust, SAFETY ZONE in the laboratory to form a complete, using the exhaust system of air by adopting balanced manufactured.
Specifications:
|
Dimension (mm) |
W H D |
1200 800 2400 |
1500 800 2400 |
1800 800 2400 |
2400 800 2400 |
|
Air Volume(CMM) |
|
9 ~ 18 |
12 ~ 23 |
14 ~ 29 |
20 ~ 39 |
|
Face Velocity(m/sec) |
MIN : 0.25 ~ MAX : 0.5m/sec |
||||
Wet Station (Bench)
- LPA FILTER: 0.1 um particle standard 99.99995% removal
- Chemical Filter: SOX, NOX, HCL, HF, NH3, PHOSPHORUS, BORON removal PHOSPHORUS, BORON removal
- Main body: Ivory Clean PVC 10T
- Bath Material: Quartz, Teflon, Coated heater
- Rinse: DI Shower, QDR N2 Bubble
- Control Pannel: Manual, Semiauto, auto
- Dimension: User made chemical circulation & filtering system ultrasonic, Megasonic system
- Magsons: 1200mhz
Specifications:
|
Dimension (mm) |
W H D |
1200 800 2350 |
1500 800 2350 |
1800 800 2350 |
2400 800 2350 |
|
Air Volume (CMM) |
|
9 ~ 18 |
12 ~ 23 |
14 ~ 29 |
20 ~ 39 |
|
Face Velocity (m/sec) |
MIN : 0.25 ~ MAX : 0.5m/sec |
||||
Production Specification
- Material: PVC, P.P, PVDF, PE, SUS
- Size: Order production/ Resizable ordering
