Fluid Heater HK-HPFH100, HK-HPFH 200
Request For Quotation
Hankil Precision, Fluid Heater, The optimum temperature control for high viscosity paint & solid coating
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description

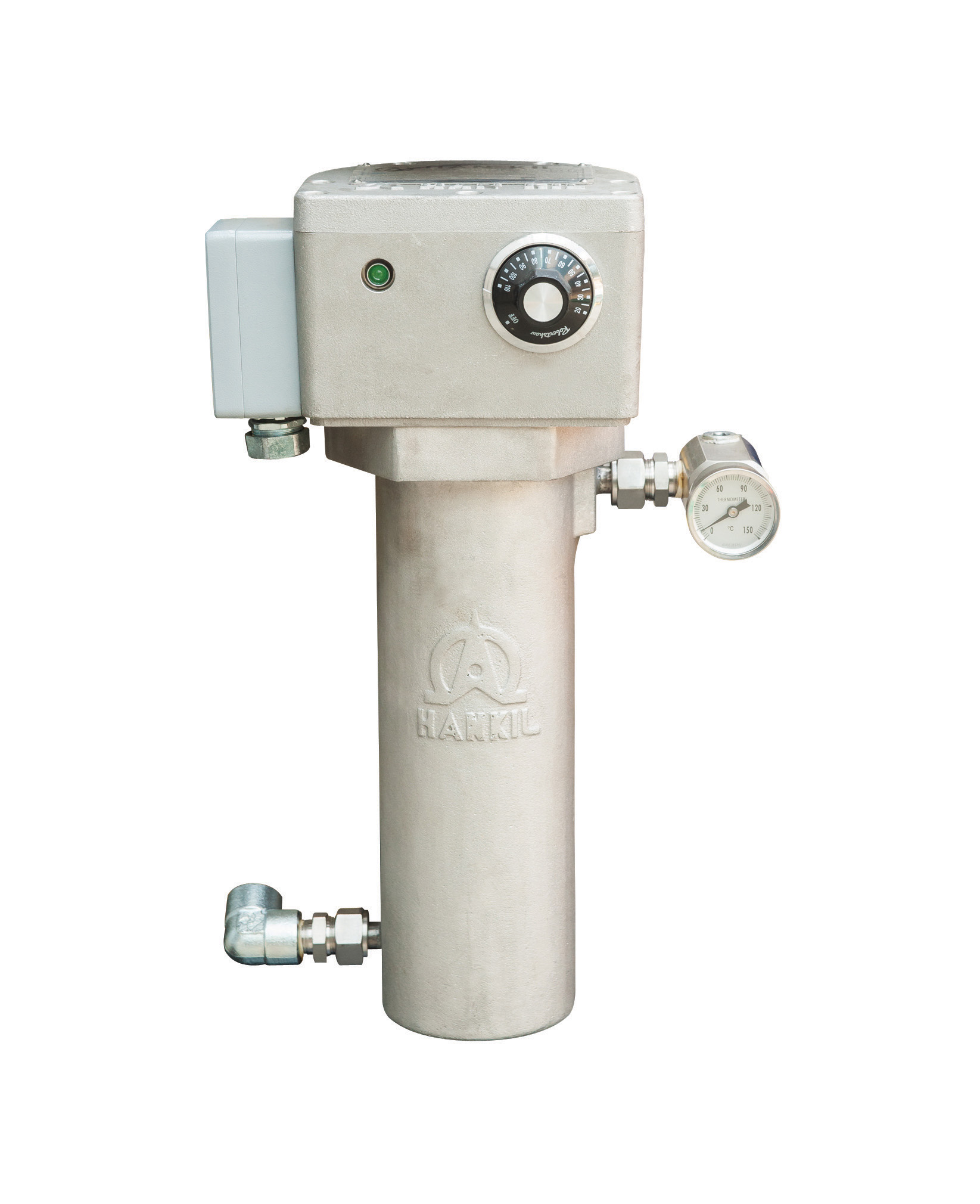

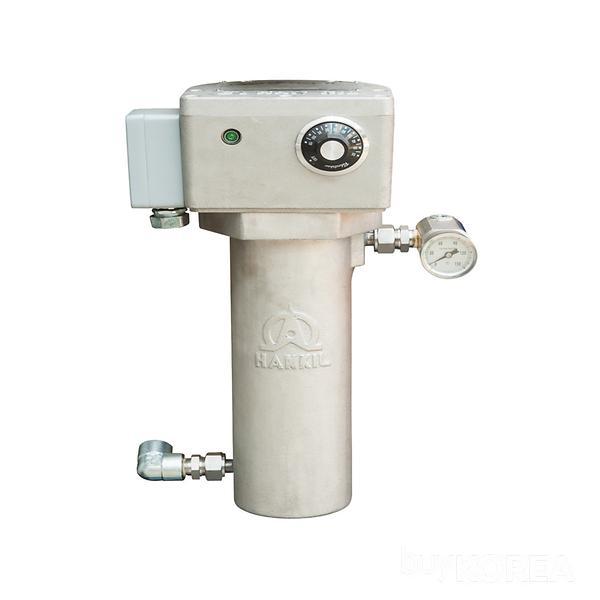

Fluid Heater HK-HPFH 100 / HK-HPFH 200
- The optimum temperature control for high viscosity paint & solid coating
- Provides operating temperature range of 32~102°C
- Provides outstanding corrosion resistance and high heat
conductivity and responsibility through aluminum body design
- Compatible with most paint available to inject pump
Technical Data HK-HPFH 100 / HK-HPFH 200
|
Part No. |
HK-HPFH 100 |
HK-HPFH 200 |
Part No. |
HK-HPFH 100 |
HK-HPFH 200 |
|
Rated Voltage |
220V |
440V |
Degree of Temperature Accuracy |
±1.8°C |
±1.8°C |
|
Power Consumption |
3KW |
3KW |
|||
|
Rated Pressure |
500bar |
500bar |
Weight |
18kg |
18kg |
|
Fluid Pipe Diameter |
10.4mm |
10.4mm |
|
|
|
