Detailed Description

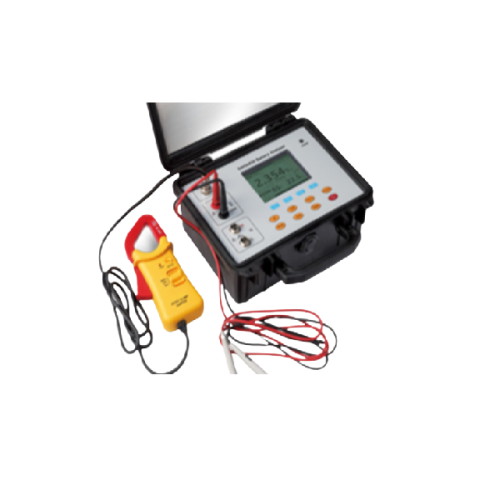

[Battery Quality Analyzer - TEKON950]
To prevent faults or quality issues in critical battery back-up applications caused by defects in stationary batteries, TEKON950 battery quality analyzer enables the user to diagnose and evaluate the performance and the degree of aging by testing the conditions of individual batteries (400V max) in type of cell, module or pack.
TEKON950 can handle virtually all battery testing (e.g. aged status of battery under test and the condition of a power system) in systems that use high-voltage battery packs, such as ESS, EV, HEV and PV as well as UPS.


[Features]
• Measures internal resistance of 400V max of batteries
• Measures voltages at battery (DC500V)
• Measures voltage of UPS (AC500V)
• Measures ripple voltage, current and temperature
• Measures capacity of battery (Capacity)
• Diagnoses aging of battery and predicts its useful life (to determine timing for replacement)
• Can conduct history management of battery using 8MB memory
• Auto Hold and Data Storage
• Prints out measurement data in reports
• Transmits measurement data to remote locations (e-mail, server) using Mobile App
• Removable wireless printer applied
[Specification]
| Product Name | Battery Quality Analyzer | |
| Brand Name | TEKON | |
| Model No. | TEKON950A | TEKON950B |
| Max Test Voltage | 200V | 400V |
| Weight | 1.9 kg | |
| Size | 240(L)×198(W)×109(H) mm | |
| Origin | Republic of Korea | |
[Comapny Information]
TEKON is a customer-oriented solution provider by offering measurement systems ensuring the highest level of precision, safety and durability, such as battery quality analyzer, power quality analyzer, EESS performance test system, transformer analyzer, EV/HEV test used in applications of testing RMS (Risk Management System), FMS (Facility Management System) and EMS (Energy Management System).
• Battery Quality Analyzer
• Power Quality Analyzer
• EV, HEV Diagnostic
• Transformer Analyzer
