High Dual Component Airless Paint Sprayer HK-PFP-2000
Request For Quotation
Passive fire protection, No need for organic solvents, Heatable depending on the conditions of a main material and a hardener
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1
Detailed Description

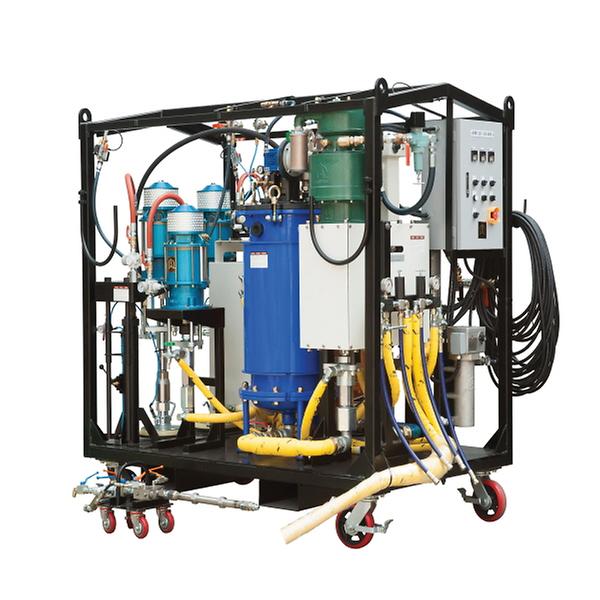

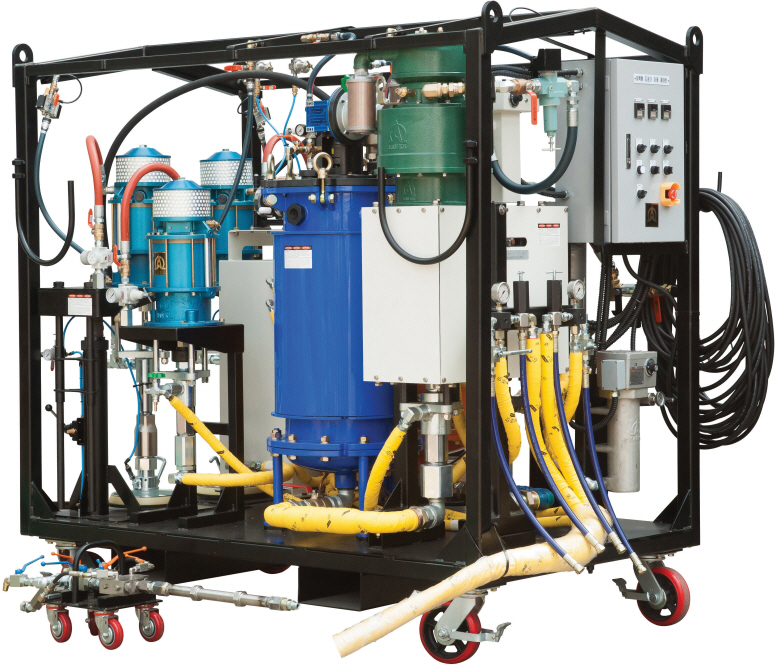

[High Dual Component Airless Paint Spraying Equipment (Passive Fire Protection) HK-PFP-2000]
HK-PFP-2000
- No need for organic solvents
- Heatable depending on the conditions of a main material and a hardener
- Adjustable depending on the dilution ratio of a main material and a hardener
- 1:1 to 3:1 when applied displacement pumps are a same size
- Only used for fire-proof paint(CHARTEK7)
|
Technical Data [ Part No. HK-PFP-2000 ] |
|||||
|
Pressure Ratio |
53 : 1 |
Operating Air Pressure |
7kgf/cm² |
Air Motor Effective Diameter(Main) |
321㎜ |
|
Ratio Range |
1.5:1~4.5:1 |
Max. Discharge Pressure |
372kgf/cm² |
||
|
Max. Delivery |
16.2ℓ/min. |
Dimension(L×W×H) |
210×315×216cm |
Air Motor Effective Diameter(Feeding) |
203㎜ |
|
Max. Cycle |
50cpm |
Weight |
1,890kg |
|
|
|
Output per Cycle |
365cc |
Noise |
80dB |
Air Motor Stroke |
120㎜ |
