Inorganic Binder, Silicate Binder for Coating and Agglomeration
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
Inorganic Binder Systems for Coating
Description
- Specifically modified silicates based inorganic binders for coating
- They behave like silicate solutions with molar ratio more than 4.0.
- They can be used for applications that require such environmental safety, heat-resistance, non flammable property, high bonding strength, anti-corrosion and acid-resistance.
Features
- Environmental safety
- High bonding strength
- Heat-resistance, non flammable property, anti-corrosion and acid-resistance
- Water-resistance
- Easy handling
Uses
- Functional coating for glass, metal, ceramic, etc.
Product Specifications
|
|
ECO-M500 |
ECO-600 |
|
pH |
11-12 |
11-12 |
|
Specific gravity (20℃) |
1.200-1.300 |
1.200-1.300 |
|
Solid (%, 250℃, 1Hr) |
27±1 |
26.5±1 |
|
Viscosity (cps, 20℃) |
100 이하 |
100 이하 |
|
Remarks |
Sodium-potassium-lithium silicate based |
Sodium-potassium-lithium silicate based |
Technical Data
(Coating on glass plate, wet thickness 5㎛, 120℃ 10 mins drying and room temperature aging for one day)
|
Product |
Stability (95℃,48hr) |
Pencil Hardness |
Water- Resistance (95℃,48hr) |
Anti- Corrosion (5%NaCl,5days) |
Acid- Resistance 5%H2SO4 5일 |
Alkali- Resistance (5%NaOH,5days) |
Solvent- Resistance |
|
ECO-M500 |
● |
9H↑ |
● |
● |
● |
X |
● |
--------------------------------------------------------------------------------------------
Inorganic Binder Systems for Agglomeration
Description
- Specifically modified silicates based inorganic binders for agglomeration
- They can be used to make panel or board with expanded vermiculite or perlite, mineral powder, ceramic powder, metal powder or granules, etc.
- They can be used for applications that require such environmental safety, heat-resistance, non flammable property and high bonding strength.
Features
- Environmental safety
- High bonding strength

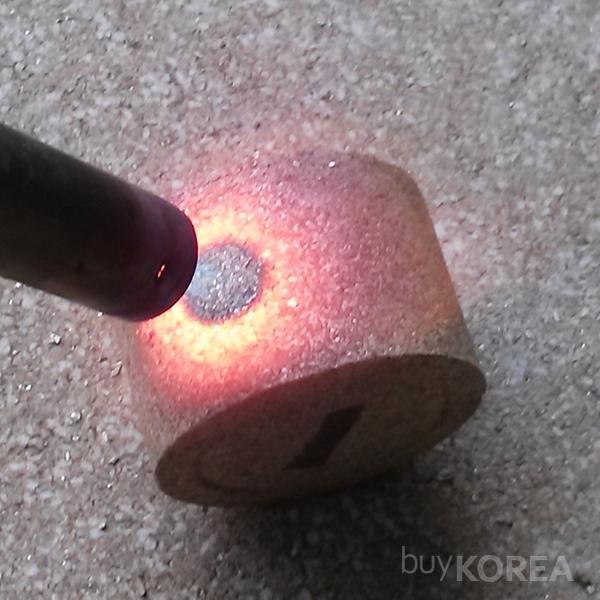

- Heat-resistance, non flammable property

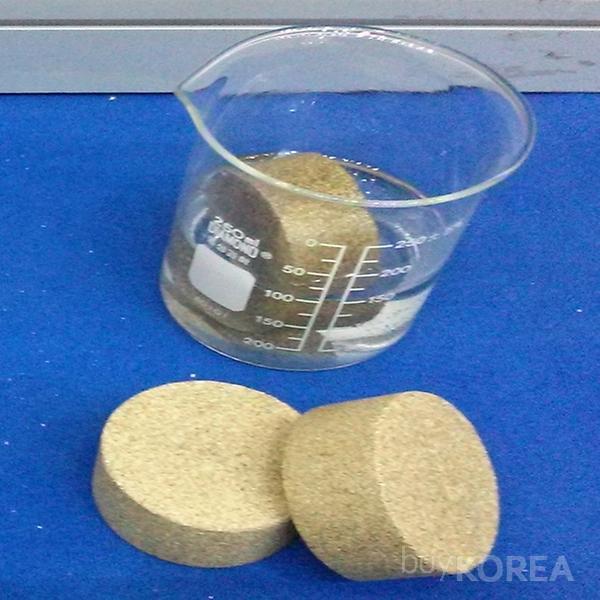

- Water-resistance
- Easy handling
Uses
- Inorganic board, inorganic sandwich panel core, inorganic fire door core, heat-resistant component
Product Specifications
|
|
IB-A6 |
IB-A33 |
IB-A10 |
ECO-H |
|
pH |
11-12 |
11-12 |
11-12 |
(Hardening aid) |
|
Specific gravity (20℃) |
1.250-1.350 |
1.300-1.400 |
1.300-1.400 |
|
|
Solid (%, 250℃, 1Hr) |
30±1 |
33.5±1 |
35±1 |
|
|
Viscosity (cps, 20℃) |
100 이하 |
100 이하 |
100 이하 |
|
|
Remarks |
Sodium silicate based |
Sodium silicate based |
Sodium-potassium silicate based |
Powder |
- Recommended process: Mixing-Pressing-Drying. ① Mix inorganic material such as expanded vermiculite or perlite and ECO-H first. Add liquid inorganic binder to the dry mixture and mix them well and quickly. ② Fill the wet mixed into mold with cold pressing or hot pressing. ③ Initially, the temperature should be increased gradually to 93~99℃ to slowly remove excess water. Then final curing can be done at 150~200℃. Heating too quickly may cause steam to form within the film, resulting in blistering or puffing when the steam is released.
