Channel Pump(Ground Type)

- Non-Clog Channel Impeller

- Special performance at plastic bag, food waste, sludges.

- Recommended rate of moisture content over 95%

- Able to produce portable type for purposes

- V-Belt Type

APPLICATION

•Public facilities : Waste water, Sludge, Sewage, Animal dung, Food waste disposal
•Construction industry : Septic tank, Transferring waste water, Sand & Gravel, Corrosive/abrasive liquid
•Paper industry : Pulp & paper, Waste water disposal
•Aquaculture industry : Transferring fresh fish, Sea water, Deposited sand
•Chemistry sludge, Leather, Paper, Butchery waste water ETC

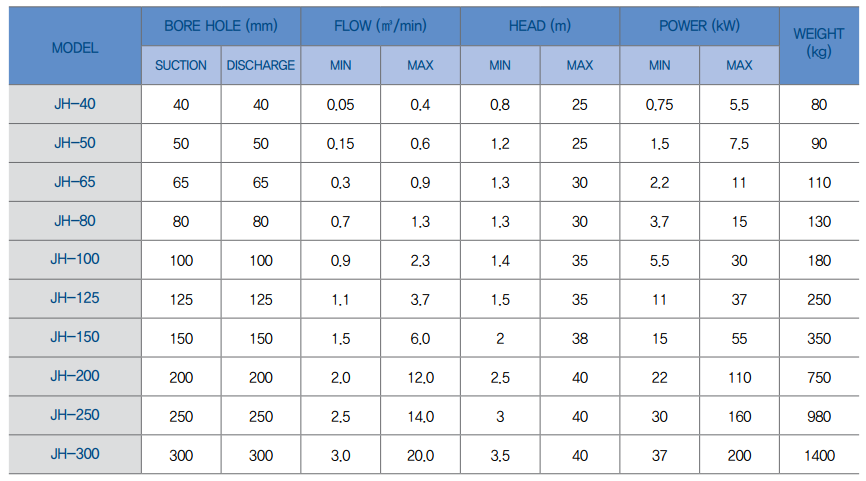

SPECIFICATIONS

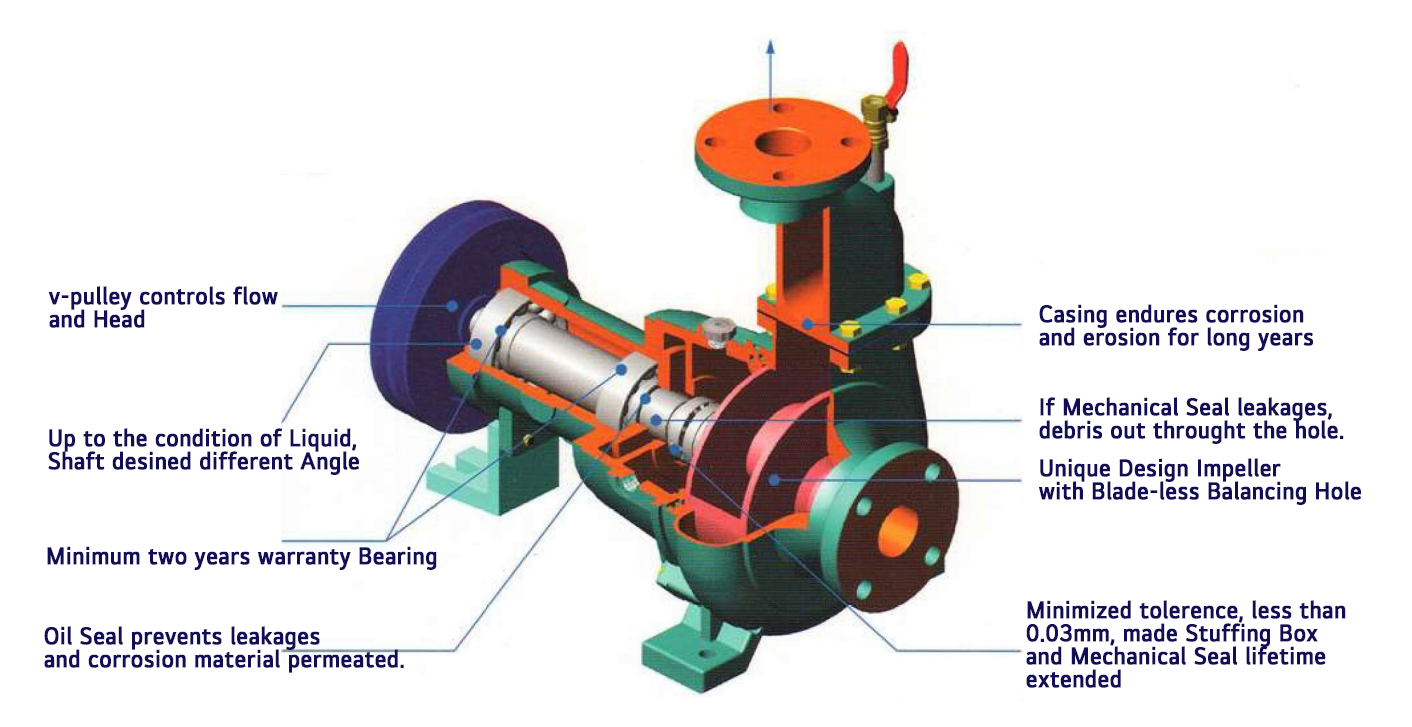

STRUCTURE

STRUCTURE

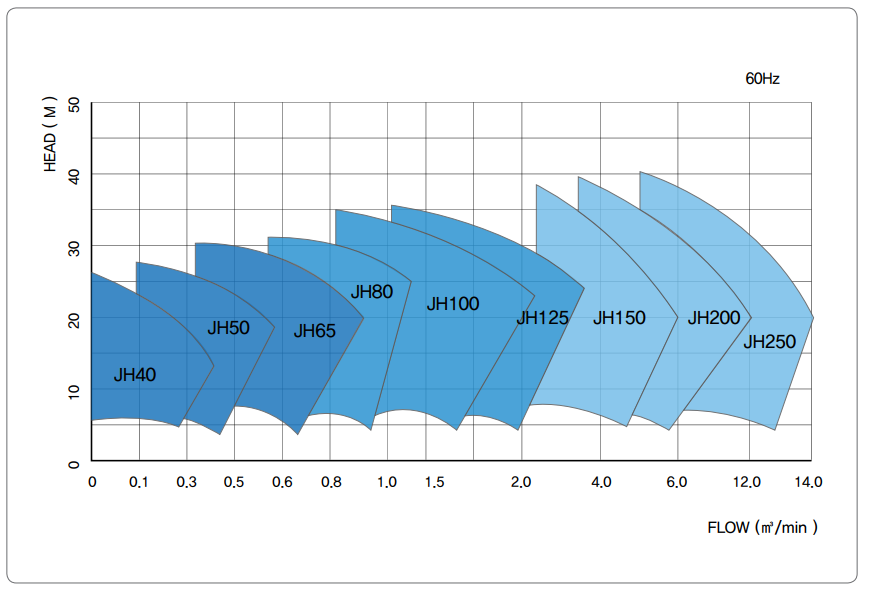

SELECIONT CHART

SECTION CHART

Why we need to use Non Clog Pump?

•Since established 1991, Jooho has been the best Non-Clog pump manufacturer in Korea. Our pump has been proved in many industries such as Paper&Pulp, Food Disposal, WasteWater, Chemical, Fish&Animal Farm, etc.,

JOOHO Non Clog Pump?

We have supplied our pumps to the all kinds of facilities and process.

- Raw Sludge Exhaust Process

- Internal Return Process

- Disgester Sludge Agitation Process

- Excess Sludge Process

- Sludge Thickener Transport Process

- Progressive Cavity Process

- High Density Sludge Transport Process

JOOHO PUMP has been Proved up to 10-15 years running performance even in the Severe Circumstances

* Non Clog Pump might be expensive than normal pump or Vortex pump.

However, compare to maintain or change the parts and labor cost, turning over the cost takes only few years.
