Technical Data
Power supply
Voltage……………………………………………………220 V
Frequency …………………………………….……..…60 Hz
Power consumption ......................................150 VA

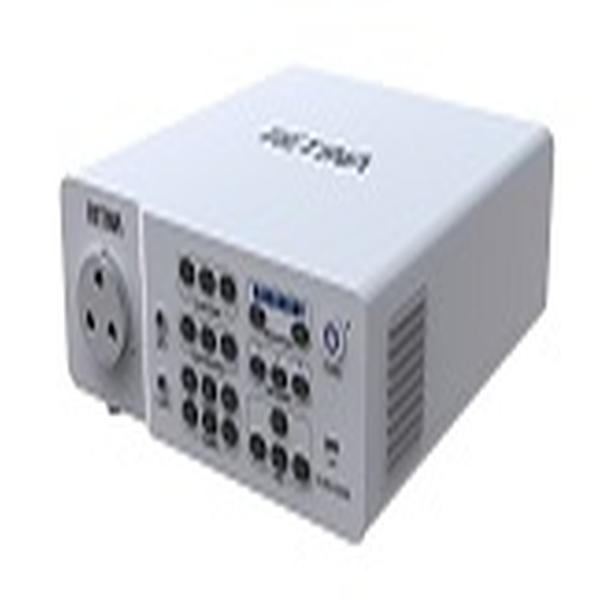

Size (control unit)
Dimensions ……………370(W)ｘ130(H)ｘ400(D) mm
Weight………………………………………………………15.0 Kg
Classification
Protection against electric shock………………class 1
Type……………….....………depending on applied part
Observation
Full-HD signal output………………-------…DVI-D, HDMI
SD signal output……………………………………3CH CVBS
PC connection ………………………………….. NETWORK
Recording
Digital Video……………………….DVI-D, HDMI convert
Still images……………………………………………………...USB
Image format……………………………………DICOM,JPEG
Illumination
Power Consumption………………………….…….. 150 VA
LED life …………………………………..… Semi-Permanent
on continuous use
in intermittent use, lamp life may differ slightly
Brightness adjustment ……………………. C.C. Control
Compatibility

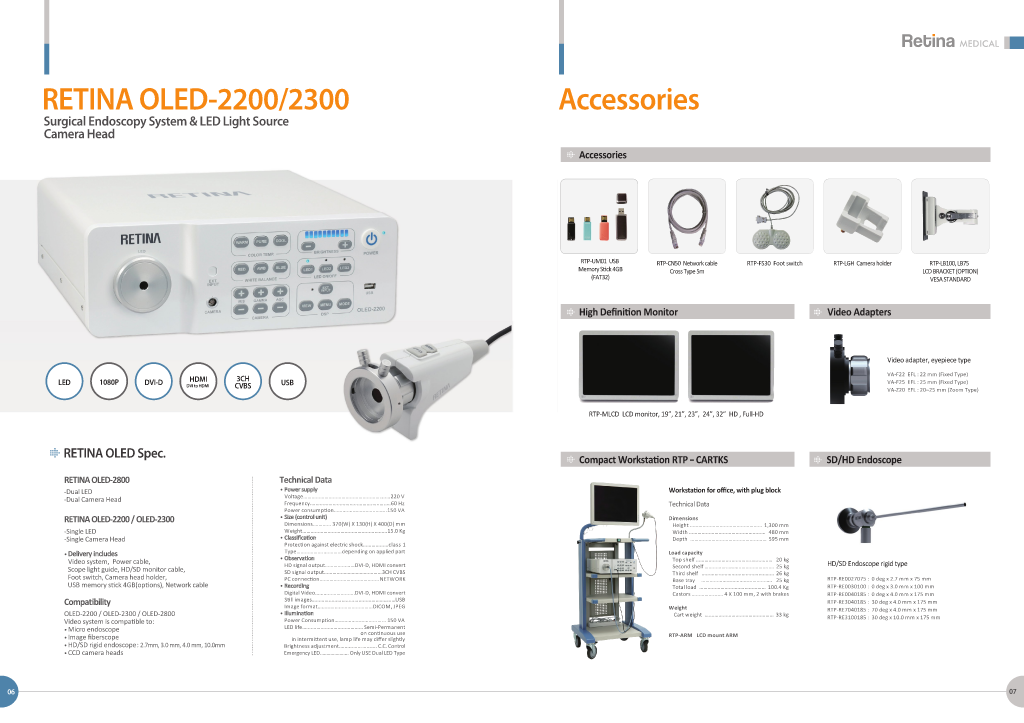

The OLED-2200 Video system is compatible to:
• Micro endoscope
• Microscope
• Image fiberscope
• HD/SD rigid endoscope : 2.7, 3.0 , 4.0, 10.0 mm

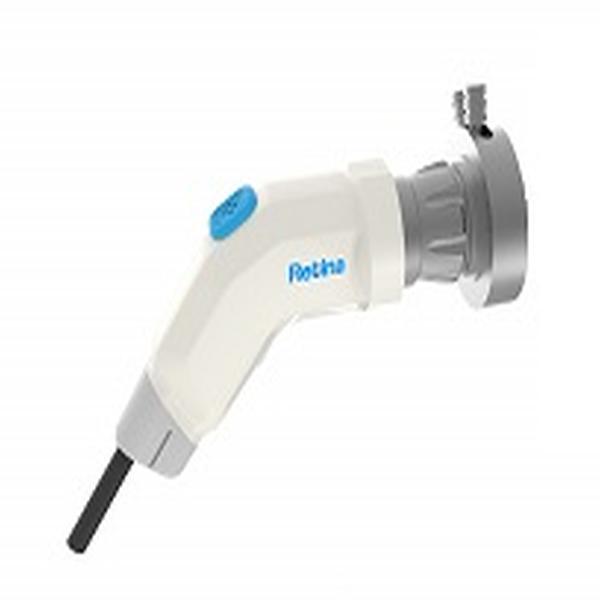

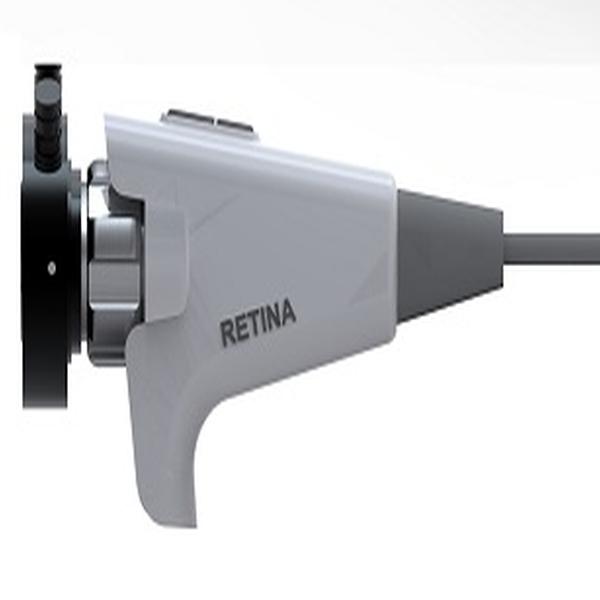

• CCD camera heads
