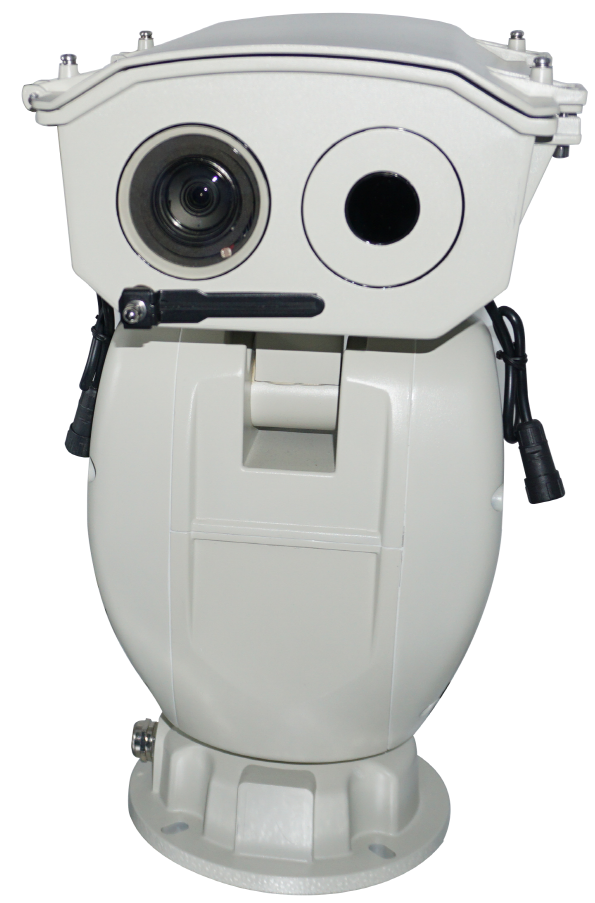

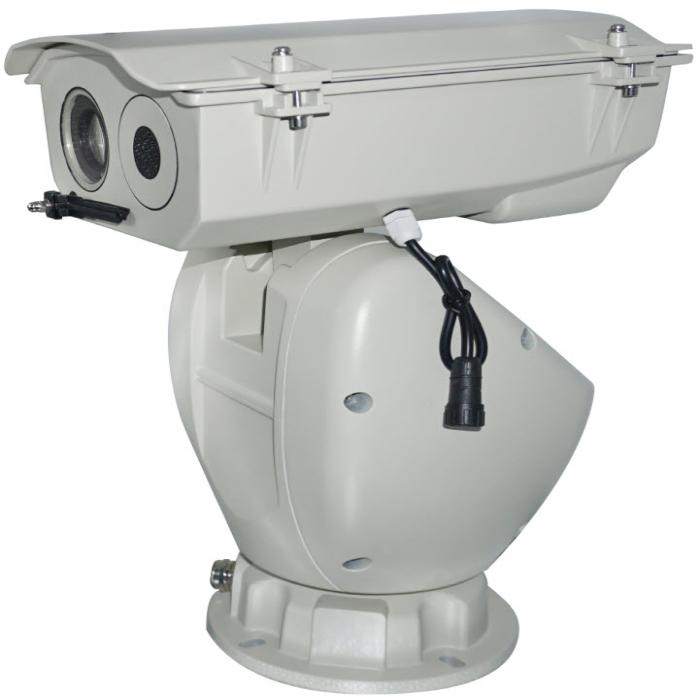

PTZ Thermal IP Camera Long Distance surveillance
FLIR Boson Thermal Sensor IP Camera
(thermal resolution: 320 X 256 or 640 x 512)
PT Driver included
Zoom X30 on Visual Sensor
ONVIF Compliant : Compatible with 3rd party Software & NVR
Monitoring S/W : EVMS provided
Provides SDK for 3rd party system integration
Picture to Picture Display (visual and thermal image)
Built-in features : Fan / Heater
Korean Soc
- Certification
-
- Award
-
- Shipping
-
- Lead Time7 ~ 14days
- Type of Freight AT
- Modes of Transport EXW
- Products Shipped From Anyang
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 3 Pieces
Detailed Description
|
|
Features |
Units |
EN3225-DPT |
EN6451-DPT |
|
Thermal Image |
Thermal Resolution |
Pixel |
320 x 256 |
640 x 512 |
|
Pixel Pitch |
µm |
12 |
12 |
|
|
HFOV |
Degrees |
34° 6.3mm / 24° 9.1mm / 16° 14mm / 6° 36mm |
32° 14mm / 24° 18mm / 18° 24mm / 12° 36mm |
|
|
Frame Rates |
Hz |
30Hz |
30Hz |
|
|
Spectral Range |
µm |
8 to 14 µm |
8 to 14 µm |
|
|
NETD |
mK |
≤50mk@f#1.0 |
≤50mk@f#1.0 |
|
|
Temperature Range |
℃ |
High Gain : -10 ℃ ~ 140 ℃, |
High Gain : -10 ℃ ~ 140 ℃, |
|
|
Low Gain : -10 ℃ ~ 500 ℃ |
Low Gain : -10 ℃ ~ 500 ℃ |
|||
|
Overlay (Visual+Thermal) |
|
Picture in Picture type |
||
|
CMOS Image |
Image Sensor |
Inch |
1/2.8“ Sony Progressive Scan |
|
|
Effective Pixel |
|
2.13 Mega pixels |
||
|
Zoom Ratio |
|
Optical x30 |
||
|
Focal Length |
|
F=4.6mm ~ 136.0mm |
||
|
Frame Rates |
Fps |
30 fps |
||
|
Ethernal |
|
Ethernet 10/100 base-T(RJ-45) |
||
|
Network |
Video Compression |
|
H.264 / MJPEG |
|
|
Bitrates Control |
|
H.264: VBR, CBR / MJPEG:VBR |
||
|
Application Program |
|
EVMS / EOC API SDK |
||
|
Webpage Language |
|
English / Korean |
||
|
Power Supply |
|
DC24V |
DC24V |
|
|
Power Consumption |
W |
75W |
100W |
|
|
Operating condition |
℃ |
-40 ℃ ~ 60 ℃ / Up to 90%RH |
||
|
Generals |
Housing |
|
Weather Proof |
Weather Proof |
|
Dimension |
Mm |
330 x 233 x 483mm |
||
|
Weight |
kg |
12 kgs |
12 kgs |
|
|
Pan & Tilt |
|
Pan: 0° ~ 360°(Endless), 0.1°/sec ~ 100°/sec |
||
|
Tilt: -90° ~ +40°, 0.1°/sec ~ 60°/sec |
||||
|
Preset Accuracy |
|
±0.02° |
||
|
Preset Speed |
|
Max. 250 point / Max. 120°/sec (pan) |
||
