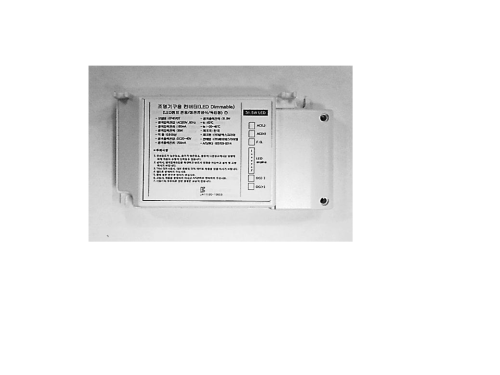

LED Converter for Phasecut Dimmer
- Award
-
- Shipping
-
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 ea
Detailed Description
[Product Description]
| DESCRIPTION | EP24105T | EP4570T | EP45100T | |
| Output | Rated Current | 1050mA | 700mA | 1050mA |
| Voltage Range | 12~32V | 27~47V | 27~47V | |
| Rated Power | 31.5W | 31.5W | 40.0W | |
| Max Power | 33.6W | 32.9W | 50.0W | |
| Input | Voltage Range | 200 ~ 240VAC , 50/60Hz | ||
| Power Factor | ＞ 0.9 | |||
| Dimming | Phase-cut dimming (Leading and Trailing edge dimmer) | |||
| Protection | Short circuit / Over voltage | |||
| Dimensions (mm) | 113.5 x 67 x 32 (L x W x H) | |||
| Working Temperature | -20 ~ + 40 ℃ | |||
| Working Humidity | 20 ~ 95% RH non-condensing | |||
| Storage Temperature | -40 ~ + 80 ℃ | |||
| Storage Humidity | 10 ~ 95% RH non-condensing | |||
| MANUFACTURE | Elecs Korea ( Tel: 031.423.7822 / Fax: 031.423.7823 ) | |||
| NOTE | Patent reserved | |||
◆Company introduction
ELECS KOREA concentrates on LED dimming applications. especially, Triac Main dimming parts. Thanks to a unique dimming solution (Patent-pending), smooth and dip dimming is realized. Our LED dimmable lamps are designed for retrofit replacement of traditional lamps and Main dimmable LED converters with a unique design can be used in LED lightings such as down-light, spot-light.
