DESCRIPTION OF PRODUCTS

Trolley is designed to move load along a beam (rail). Trolley, as a device for travelling along the beam, doesn’t lift loads.

Trolley is divided into Plain trolley and Geared Trolley. Curved Beam Trolley and Locking Trolley are used for special usage.

Chain block is a device which is able to lift loads.

HOW TO OPERATE

Plain type doesn’t include an operating device for travelling therefore; it works with pushing the loads or chain block.

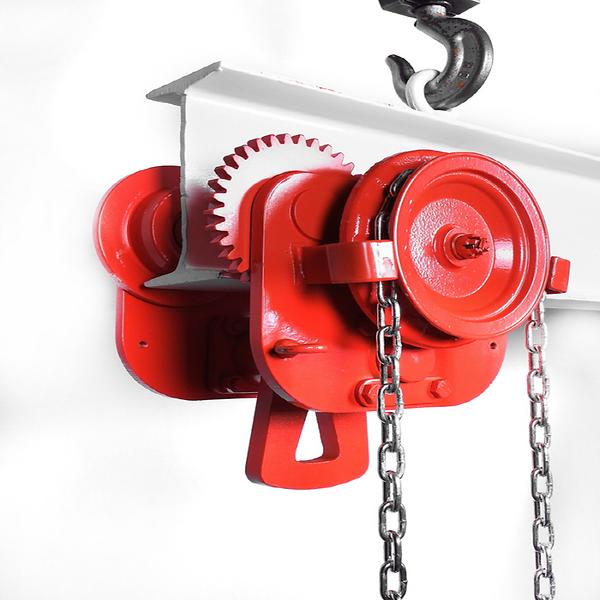

Geared type includes hand chain for operation. The geared trolley will move forward or backward,

depending on which fall of the hand chain is pulled.

CAUTIONS AT USE

Trolley is designed to bear vertical loads. Operating trolley with various angles may cause the side plate to break

(side plates are not design to bear loads), resulting in the fall of the trolley.

Load test realized by our company is for vertical loads only.

CAUTIONS FOR PRODUCT SELECTION

Trolley, (except otherwise requested by customer) will be released for I-Beam.

To apply Curved beam, MIN. CURVE RADIUS (mm) should be checked on the catalogue.

To check minimum distance or interference with other machinery, Dimensions (mm) should be checked on the catalogue.

NOTICE

Beams are not supplied by our company. The strength of the beam is mainly affected by beam type and « L ».

« L » is the distance between two beam support as shown in the above drawing.

Contact your beam manufacturer for further information
