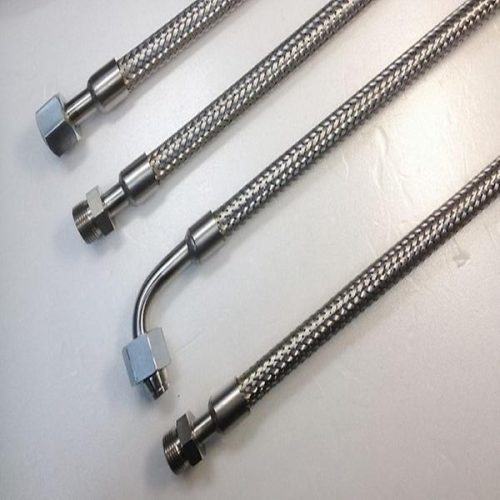

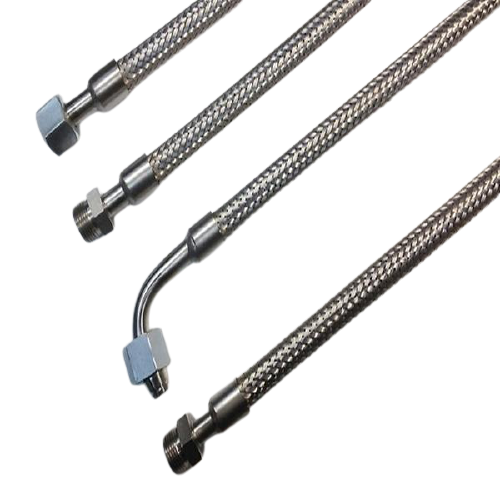

MISTFLEX 15 / 18 SEUNG JIN Connection Hose Assemblies, is suitable only for providing a connection between water supply piping to a Water Mist System. It offers the advantage of providing greater flexibility in the location of water mist nozzle than conventional rigid piping.

MISTFLEX 15 / 18 provides a unique sprinkler drop assembly comprised of the following components:

• Stainless Steel Corrugated Hose With Stainless Steel Wire Mesh(Braid)
• Welded Stainless Steel Hex Nipple with Male Thread at the Inlet
• Threaded Slip Nut for connection with Water Mist Nozzle
• Specially Designed for the application of High Pressure

SJ : Sprinkler Joint
15 : Hose Nominal Diameter(Ø14.5)
18 : Hose Nominal Diameter(Ø17.5)
B : Braided Type
T / E : T - Both Straight Threaded End / E - Straight and 90° Elbow End
XXX : Length

Product Code : MISTFLEX SJ15B-TXXX / MISTFLEX SJ15B-EXXX
MISTFLEX SJ18B-TXXX / MISTFLEX SJ18B-EXXX

Product : Connection Hose Assemblies
Hose Diameter : 14.5mm
Max. Working Pressure : 140 Bar
Max. Ambient Temperature : 225°F
End Connections : Hose Nipple or Elbow(DIN 3861) With Nut(DIN 3870)
Hex Nipple Thread M20x1.5 12S
Material : Stainless Steel 304

Product : Connection Hose Assemblies
Hose Diameter : 17.5mm
Max. Working Pressure : 140 Bar
Max. Ambient Temperature : 225°F
End Connections : Hose Nipple or Elbow(DIN 3861) With Nut(DIN 3870)
Hex Nipple Thread M20x1.5 12S
Material : Stainless Steel 304
